WiringDiagramsIQSYSTEMTROUBLESHOOTING
WIRINGDIAGRAMS
(PIN 14) LT GREEN : TO MOTOR SPEED SENSOR OUTPUT
PIN 4 BLK
B+ 15V
PIN 3 RED
TRANSMIT SIGNAL
PIN 1 YEL
RECEIVE SIGNAL
PIN 2 GRN
B- GROUND
(PIN 13) BLK/WHT : TO LOW SIDE OF MOTOR SPEED SENSOR
(PIN 12) BLU/WHT : TO LOW SIDE OF SOLENOID COIL
(PIN 11) OPEN
(PIN 10) TAN : TO KEY SWITCH SONIC WELD
(PIN 1) WHITE : TO HIGH SIDE OF POTENTIOMETER
(PIN 2) YELLOW : TO SLIDER OF POTENTIOMETER
(PIN 4) OPEN
(PIN 3) OPEN
(PIN 5) LT BLUE : OBC
(PIN 9) GRAY : TO TOW SWITCH SONIC WELD
(PIN 15) RED : TO HIGH SIDE OF MOTOR SPEED SENSOR
(PIN 16) BLUE : TO FORWARD & REVERSE SWITCH “REV”
16
8
9
1
(PIN 8) BRN : TO FORWARD & REVERSE SWITCH “FOR”
(PIN 7) ORG/WHT : TO LOW SIDE OF REVERSE BUZZER
(PIN 6) GREEN : TO ACCELERATOR LIMIT SWITCH
16 - PIN CONNECTOR AT CONTROLLER
REAR VIEW
4 - PIN CONNECTOR AT CONTROLLER
COMMUNICATION PORT
THROTTLE
POSITION
SENSOR
WD1034969-5-L

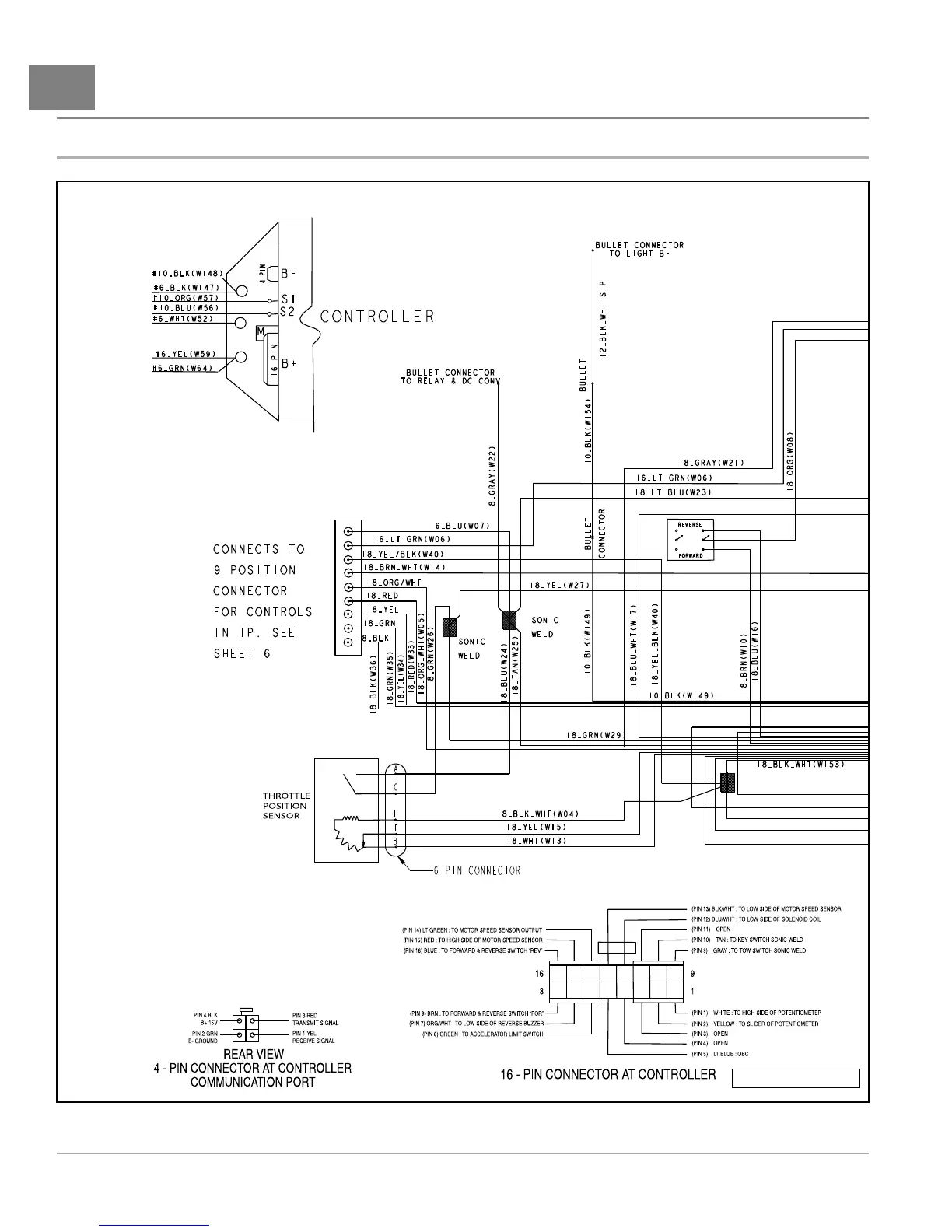

Figure11-1WiringDiagram–IQSystem
Page11-22009ElectricPrecedentMaintenanceandServiceManual
