Club Car 2009 Electric Precedent User Manual

18
MotorMOTOR(MODELEJ4-4001ANDEJ8-4001A)
731

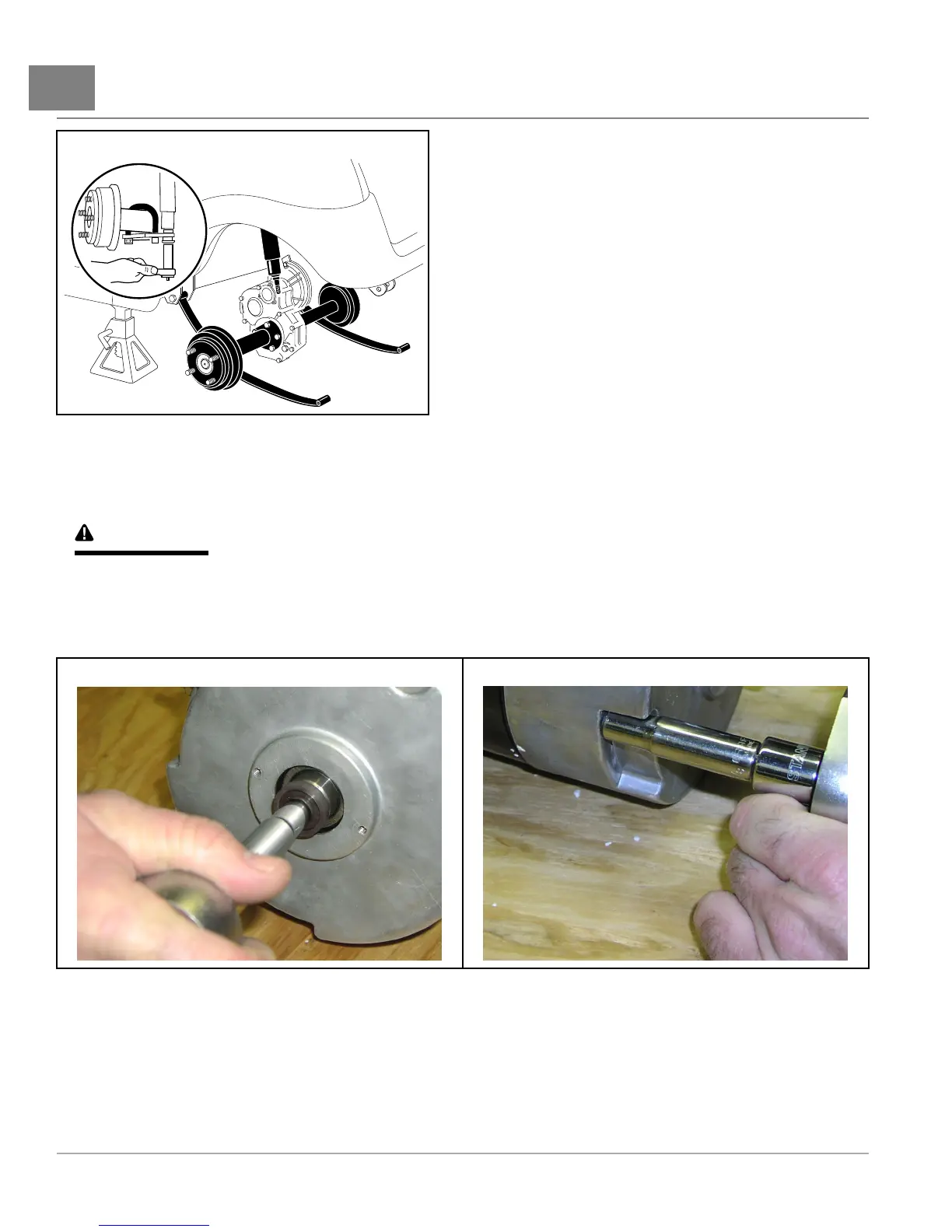

Figure18-3LowerAxle
9.Removetheboltsandlockwashersthatsecurethemotortothetransaxle(Figure18-24,Page18-16).See
followingCAUTION.
CAUTION
•Donotpositionngersundermotorwhenslidingmotoroffoftheinputshaftinstep9.Fingersmay
getpinchedwhenmotordisengages.
10.Carefullyslidethemotorawayfromthetransaxleuntilthemotorsplinedisengagestheinputshaftandremove
themotorfromthevehicle.
748
Figure18-4SpeedSensorMagnet
749
Figure18-5EndCap
MOTORDISASSEMBLY
1.Beforebeginningdisassembly,placematchmarksonthemotorendcapandmotorframe.
2.Removespeedsensorandmagnet.
2.1.Removethetwoscrews(25)thatsecurethespeedsensor(10)totheendcap(11)(Figure18-15,Page
18-11).
Page18-42009ElectricPrecedentMaintenanceandServiceManual

Club Car 2009 Electric Precedent Specifications

General

Year	2009
Model	Precedent
Power Source	Electric
Type	Golf Car
Seating Capacity	2
Motor	48V DC
Battery Type	Six 8-volt
Charger	48V Onboard
Top Speed	19 mph
Overall Length	91.5 in (232 cm)
Load Capacity	800 lbs
Frame	Aluminum
Tires	18 x 8.5-8
Overall Width	47 in (119 cm)
Turning Radius	10 ft (3 m)
Curb Weight (without batteries)	637 lb (289 kg)
Weight (without batteries)	637 lb (289 kg)
