MAN.241 Rev.5 ENG - Use and maintenance manual S23 page 58 of 127

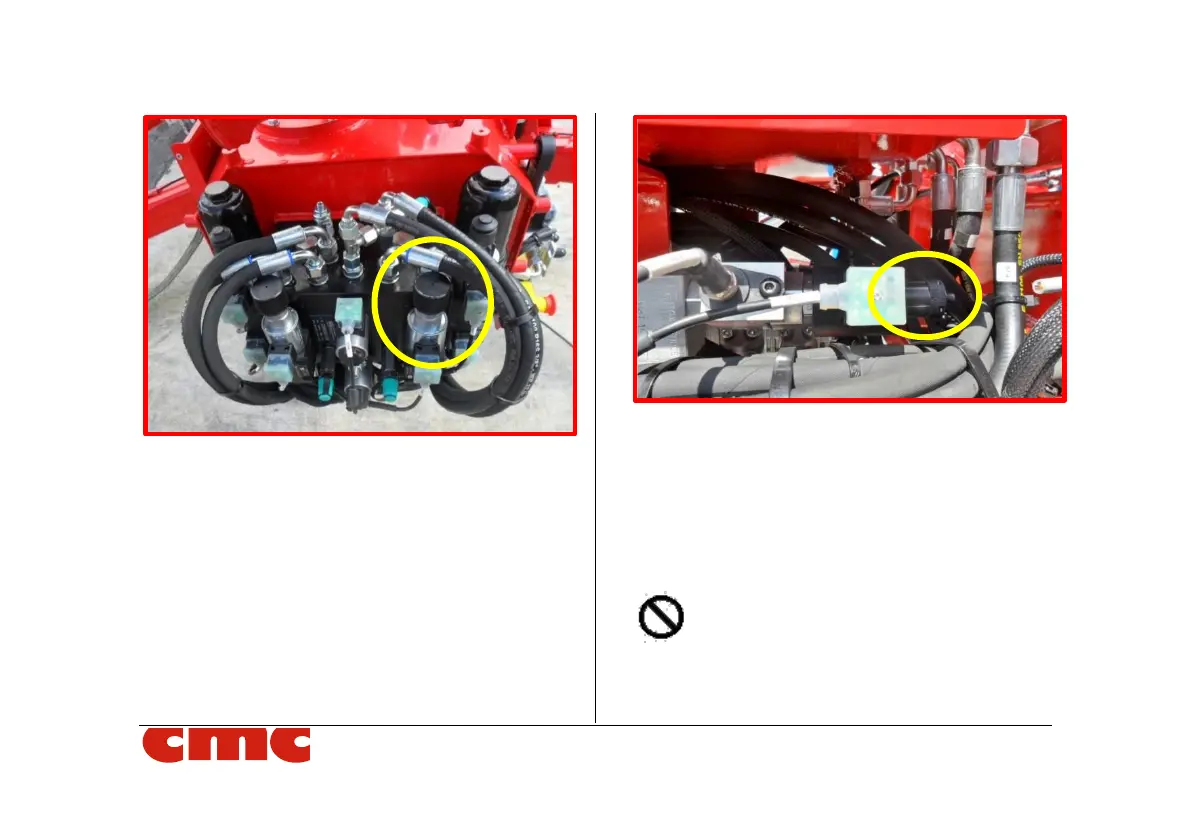

Picture 26: right tap of filters bench.
3. Unseal and screw (fully to the right) the
black knob of the stabilizers valve SV (Pic-
ture 27), placed at the right side of the out-
riggers control station.
Picture 27: stabilizers valve.
While pumping oil with the manual pump:
4. Perform the stabilizers retraction through
the levers 1, 2, 3, 4 of outriggers control sta-
tion (Picture 13).
5. Execute the tracks re-entry (*optional) mov-
ing upward the lever 5 on outriggers control
station (Picture 13).
It is strictly forbidden to use the MEWP
with solenoid valves tampered or without
seals.
