Wireless Press Box Unit (WPB1) Overview
The Wireless Press Box Unit is a trunk that is placed in or near the coach’s box. The Wireless Press Box Unit houses its own
separate X-System wireless gear, a WAM 10 wired assignment module, a WIM 8 wired interface module, and intercom
power supplies. On the inside rear of the unit, connections are available for the dry pair (via spring jacks or RJ-14s) and for
the single mode ber (via LC duplex pair into Neutrik OpticalCon Duo connectors).
The Wireless Press Box provides more customization for booth coaches by using a Radio Pack similar to the eld coaches.
In addition, it offers the ability to connect to the sideline via ber optic cabling, which provides remote access to X-Ware as
well as a more secure and clearer audio path from the press box to the eld.
A. X-System RTs (See page 35 for more information.) These RTs are not removable, they function from within the
trunk.
B. Tablet PC Drawer
C. X-System Control Unit(s) (CUs) (See page 31 for more information.)
D. PS-4001 AudioCom
®
Power Supply(s) (See page 27 for more information.)
E. Wired Interface Module (WIM) (See page 22 for more information.)
F. Wired Assignment Module (WAM) (See page 26 for more information.)
G. Radio Pack Drawer: Provides storage for Radio Packs (or 6+6 Drop-In RP and Battery Charger Tray if
applicable.)
H. Uninterruptible Power Supply (UPS) (1RU) (See page 27 for more information.)
I. LED Work Lights
J. Rear Patch Panel: Contains LAN, RT, dry pair, and ber connections (See page 96 for more information.)
A
B
C
D
E
F
G
H
I
J
Front Rear

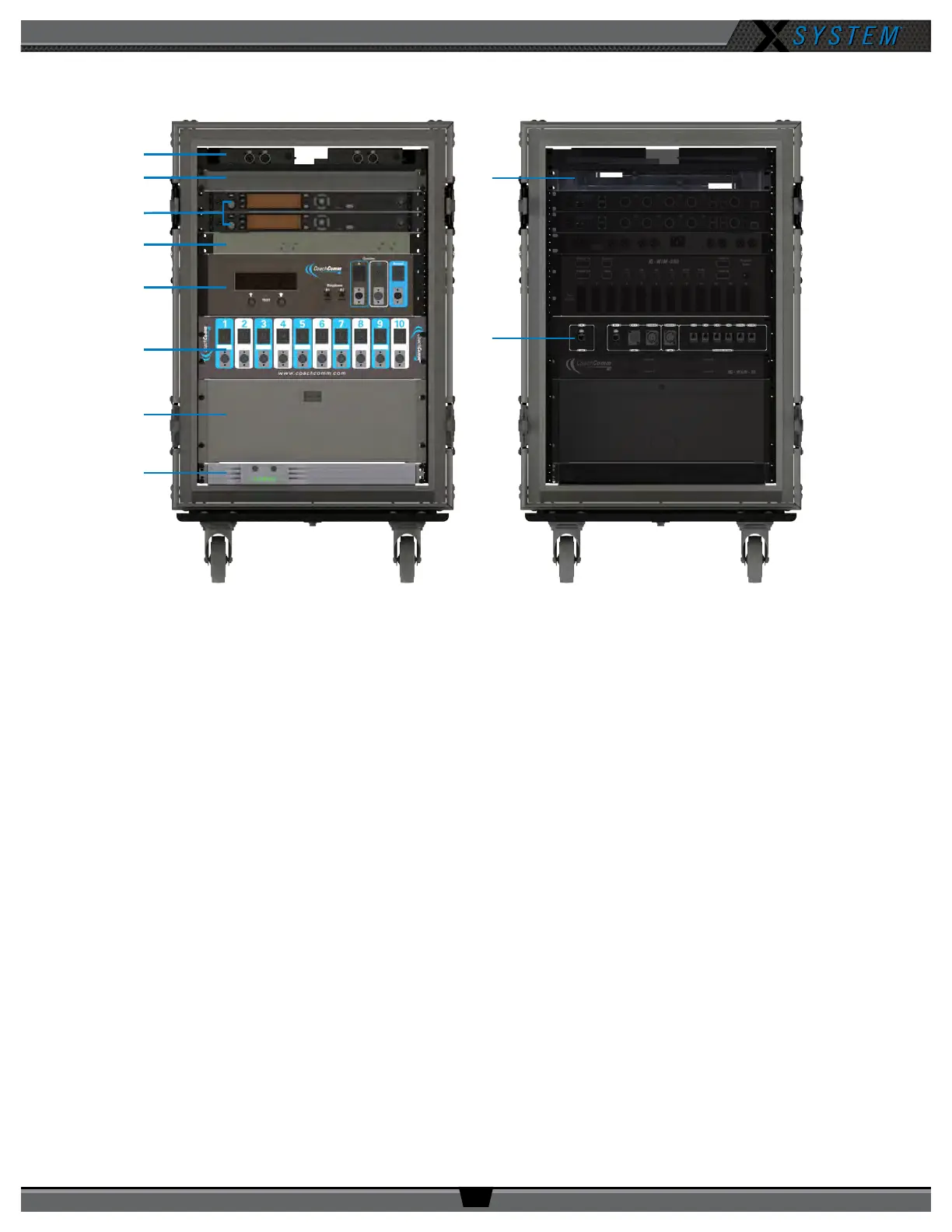

Figure 117: Wireless Press Box Unit (WPB1) Overview
