CoachComm X SYSTEM - Appendix B: Wireless Press Box Unit (WPB2); Sideline to Wireless Press Box Unit (WPB2) (System Diagram)

OPERATING MANUAL
800.749.2761 www.coachcomm.com
99
Appendix B: Wireless Press Box Unit (WPB2)
Sideline to Wireless Press Box Unit (WPB2) (System Diagram)
Stadium Press Box Panel
RJ-14 Patch Cables
Wireless Press Box Unit Rear Panel
Wireless Press Box Unit (WPB2)
Wireless Press Box Unit WIP
Stadium Wiring
Duplex LC SMF
Cables
RJ-14 Patch Cables
Sideline Cart
Sideline Cart Rear Panel
Stadium Sideline Panel
Legend
Back Up Cat 5 (Copper)
Fiber
(Both shown together in this diagram.)
Duplex LC
SMF Cables

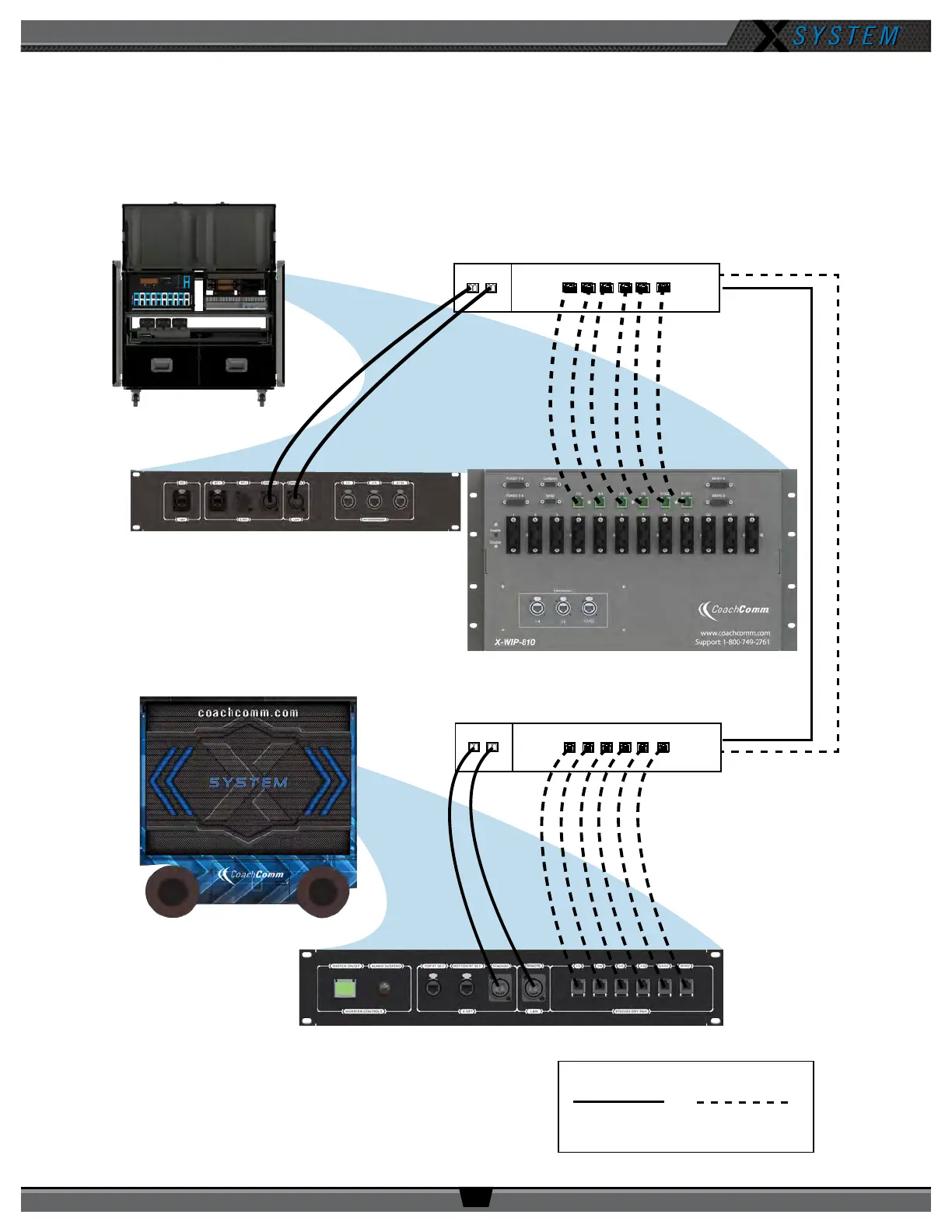

Figure 119: X-System Block Diagram with WPB2
