Appendix A: Wireless Press Box Unit (WPB1)

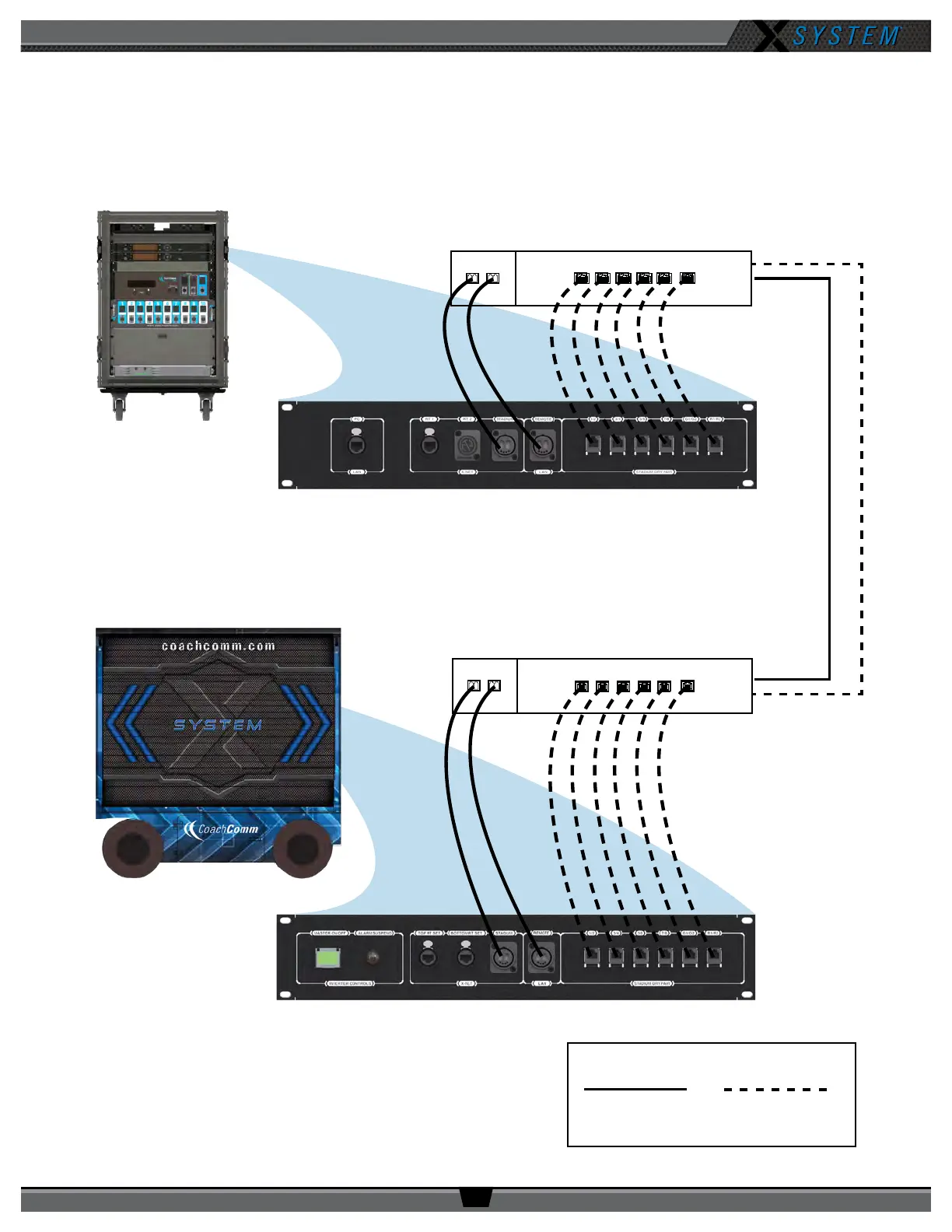

Sideline to Wireless Press Box Unit (WPB1) (System Diagram)
Stadium Press Box Panel
RJ-14 Patch Cables
Wireless Press Box Unit Rear Panel
Wireless Press Box Unit
Stadium Wiring
Duplex LC SMF
Cables
RJ-14 Patch Cables
Sideline Cart
Sideline Cart Rear Panel
Stadium Sideline Panel
Legend
Back Up Cat 5 (Copper)
Fiber
(Both shown together in this diagram.)
Duplex LC
SMF Cables
Figure 115: X-System Block Diagram with WPB1
