Wireless Press Box (WPB1) Rear Patch Panel
The Wireless Press Box Unit’s rear patch contains the X-Net connections for RTs, LAN connection, and Stadium Fiber and
Dry Pair ports. See the details below about each connection on the panel.
A. PC LAN: Alternate Cat 5e (or greater) connection for the Wireless Press Box Unit’s tablet. Disconnect the tablet
from its drawer connections and connect a longer cable to this port on the panel if you want to relocate the tablet
elsewhere in the press box.
B. RT 1: Cat 5e (or greater) connection for a third, spare RT.
C. RT 2: This connection is not currently used with X-System.
D. STADIUM: Duplex LC Neutrik OpticalCon Duo (Part # NO2-4FDW-A) connection for the stadium single mode ber
cable (provides ber X-Net connection from Wireless Press Box Unit to Sideline Cart)
E. REMOTE LAN: Duplex LC Neutrik OpticalCon Duo (Part # NO2-4FDW-A) connection for the stadium single mode
ber cable (provides ber LAN connection from Wireless Press Box Unit to Sideline Cart)
F. STADIUM DRY PAIR: Provides the interface between the copper dry pair stadium wiring and X-System via RJ-14s
(4-wire RJ)
FA B C D E

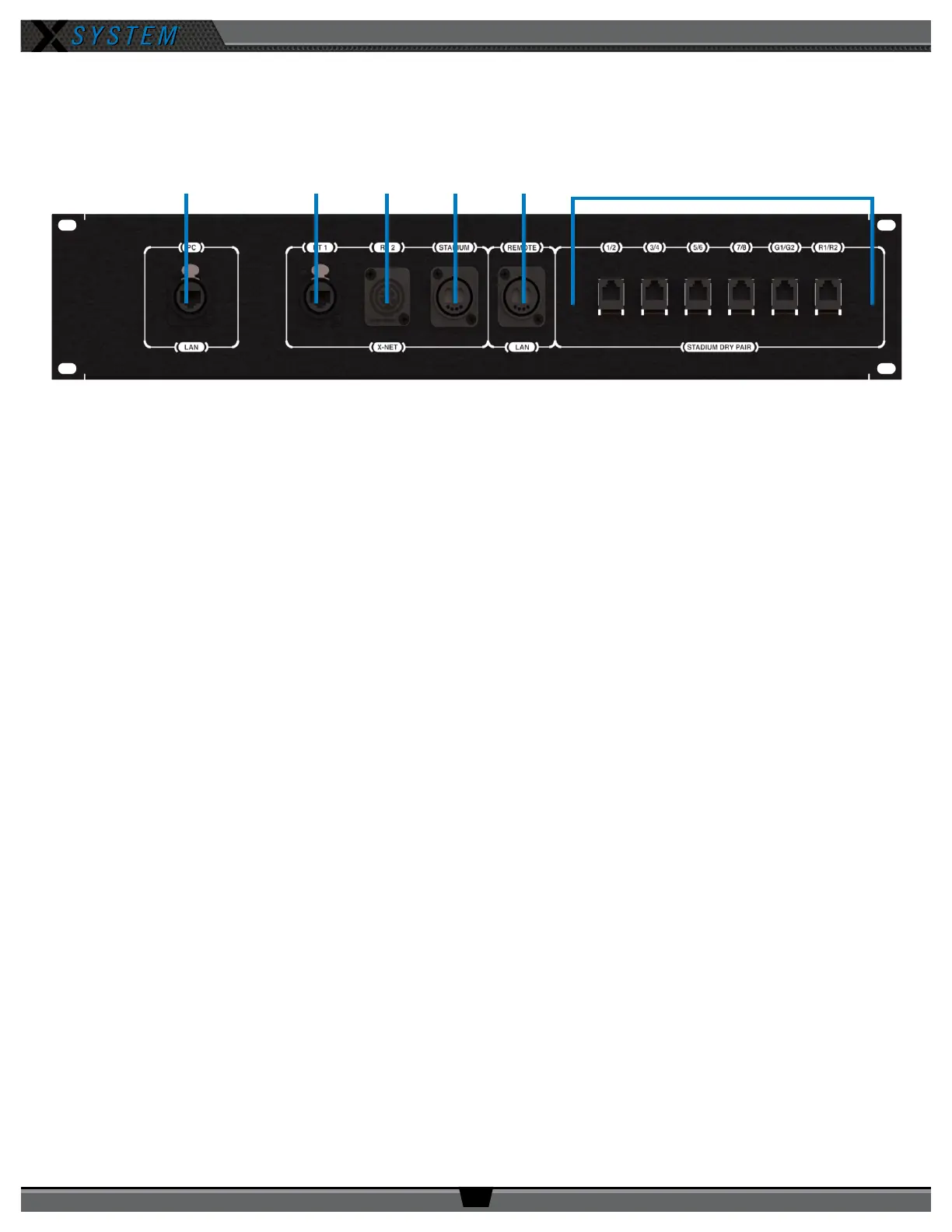

Figure 118: Wireless Press Box (WPB1) Rear Patch Panel
