CoachComm X SYSTEM - Sideline Cart Rear Patch Panel

OPERATING MANUAL
800.749.2761 www.coachcomm.com
30
Sideline Cart Rear Patch Panel
The Sideline Cart’s rear patch contains the cart’s Inverter controls, X-Net connections for RTs, SYNC IN port, and Stadium
Dry Pair ports. See the details below about each connection on the panel.
A. MASTER ON/OFF: Powers off Inverter and all downstream connections (including Rack power)
B. ALARM SUSPEND: Silences the alarm that sounds when the Inverter’s battery backup power is invoked (This
alarm indicates that the AC power connection was lost.)
C. TOP RT SET: RJ-45 Ethercon connection for the RT set mounted on the top of the mast
D. BOTTOM RT SET: RJ-45 Ethercon connection for the RT set mounted on the bottom of the mast
E. STADIUM: Duplex LC Neutrik OpticalCon Duo connection for the stadium single mode ber cable (provides ber
X-Net connection from Sideline Cart to Wireless Press Box Unit)
F. REMOTE LAN: Duplex LC Neutrik OpticalCon Duo connection for the stadium single mode ber cable (provides
ber LAN connection from Sideline Cart to Wireless Press Box Unit)
G. STADIUM DRY PAIR: Provides the interface between the copper dry pair stadium wiring and X-System via spring
jacks or RJ-14s (4-wire RJ)
A
B
C
D
F
G
E

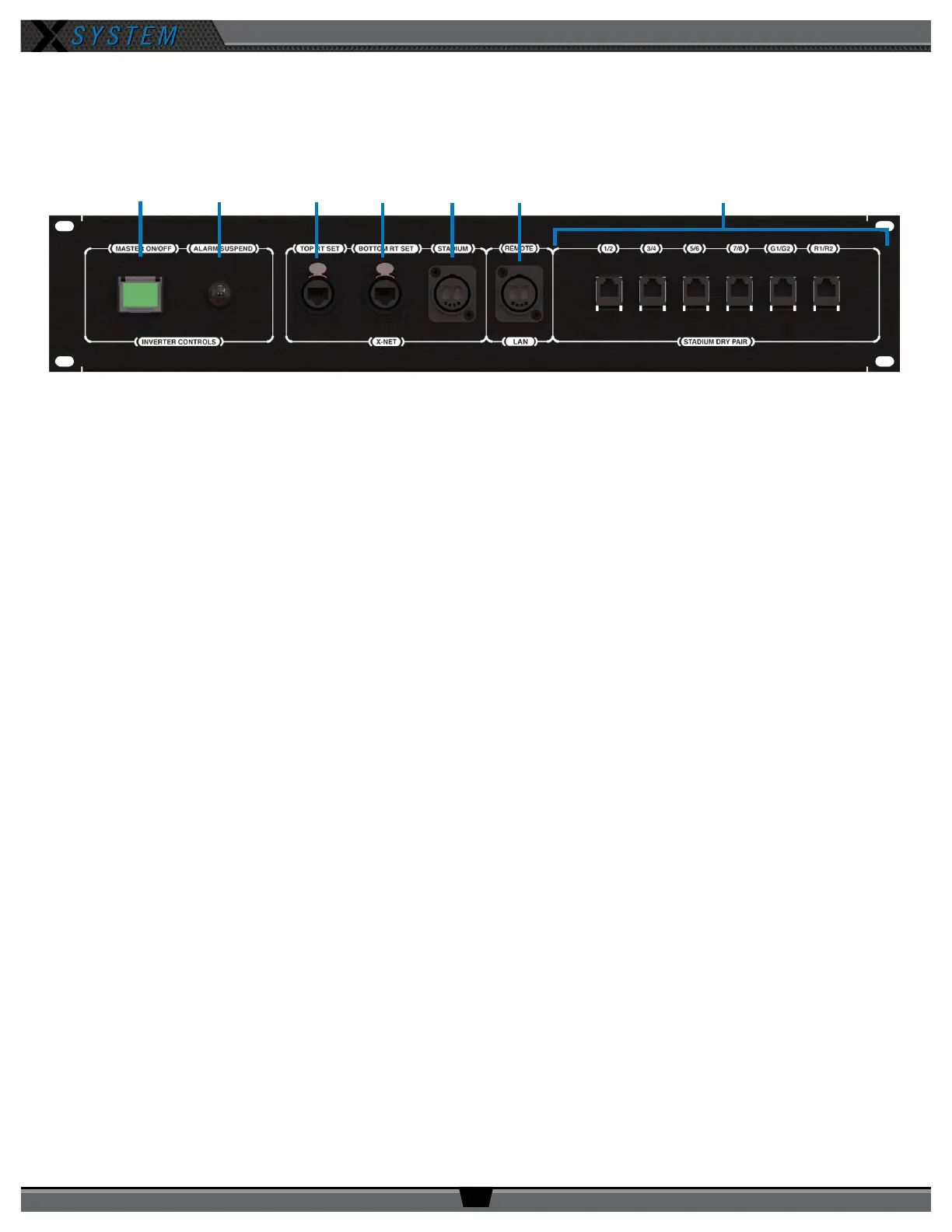

Figure 37: Sideline Cart Rear Patch Panel
