Wireless Press Box Unit (WPB2) Overview
The Wireless Press Box Unit is a trunk that is placed in or near the coach’s box. The Wireless Press Box Unit houses its own
separate X-System wireless gear, a WAM 10 wired assignment module, a WIM 8 wired interface module, and intercom
power supplies. On the inside rear of the unit, connections are available for the dry pair (via spring jacks or RJ-14s) and for
the single mode ber (via LC duplex pair into Neutrik OpticalCon Duo connectors).
The Wireless Press Box provides more customization for booth coaches by using a Radio Pack similar to the eld coaches.
In addition, it offers the ability to connect to the sideline via ber optic cabling, which provides remote access to X-Ware as
well as a more secure and clearer audio path from the press box to the eld.
WPB2 Front
A. X-System Wired Interface Panel (WIP) (See page 104 for more information.)
B. 6+6 Radio Pack and Battery Chargers Shelf: Provides storage and charging for Radio Packs and loose
batteries
C. Radio Pack Drawer: Provides storage for Radio Packs
D. PS-4001 AudioCom
®
Power Supply(s) (See page 27 for more information.)
E. X-System Control Unit(s) (CUs) (See page 31 for more information.)

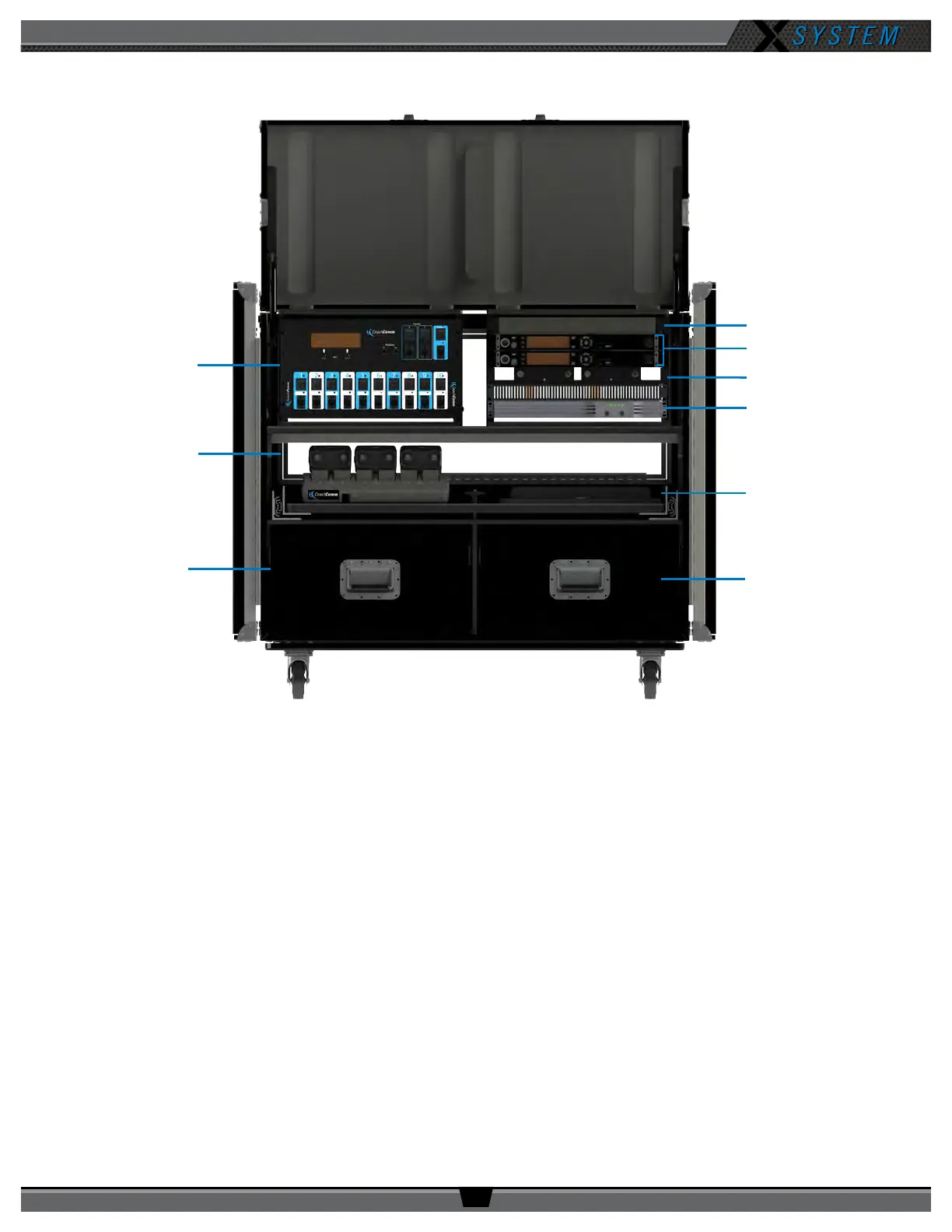

Figure 121: Wireless Press Box Unit (WPB2) Front View
I
F
G
H
E
D
