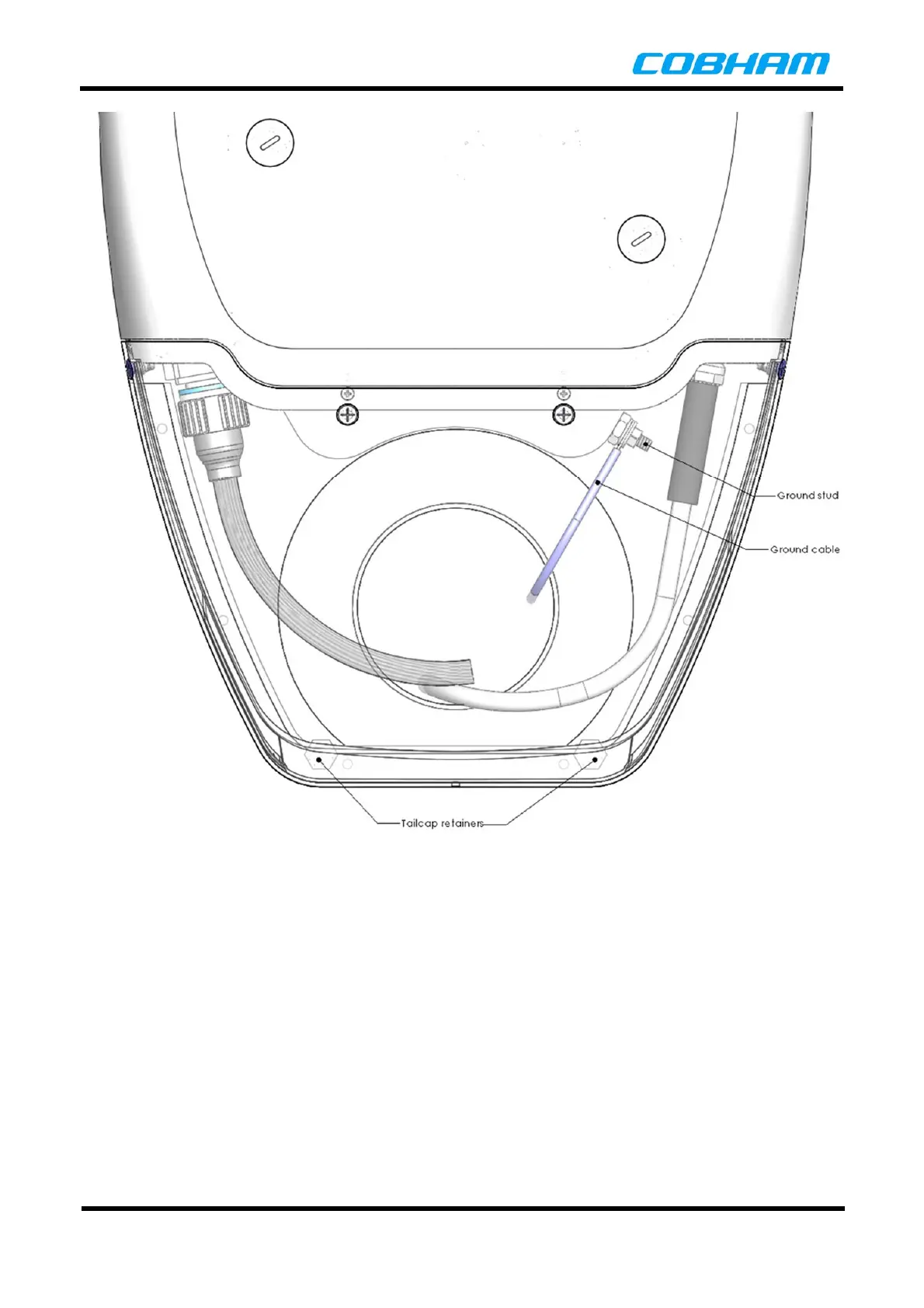

Figure 12: Cables Connected
(8) Install the lanyard assembly [IPL 19-1] by threading the cord through the slots provided in the
mounting plate (Refer to Figure 13).
(9) Thread the hook through the loop and pull gently to secure.
(10) Clip the hook onto the eye to tie the Tail Cap lanyard to the mounting plate.
