HGA-7001
Installation Manual
Document: 862-A0089_IM issue 1.6
COMPANY CONFIDENTIAL
Page 43 of 45

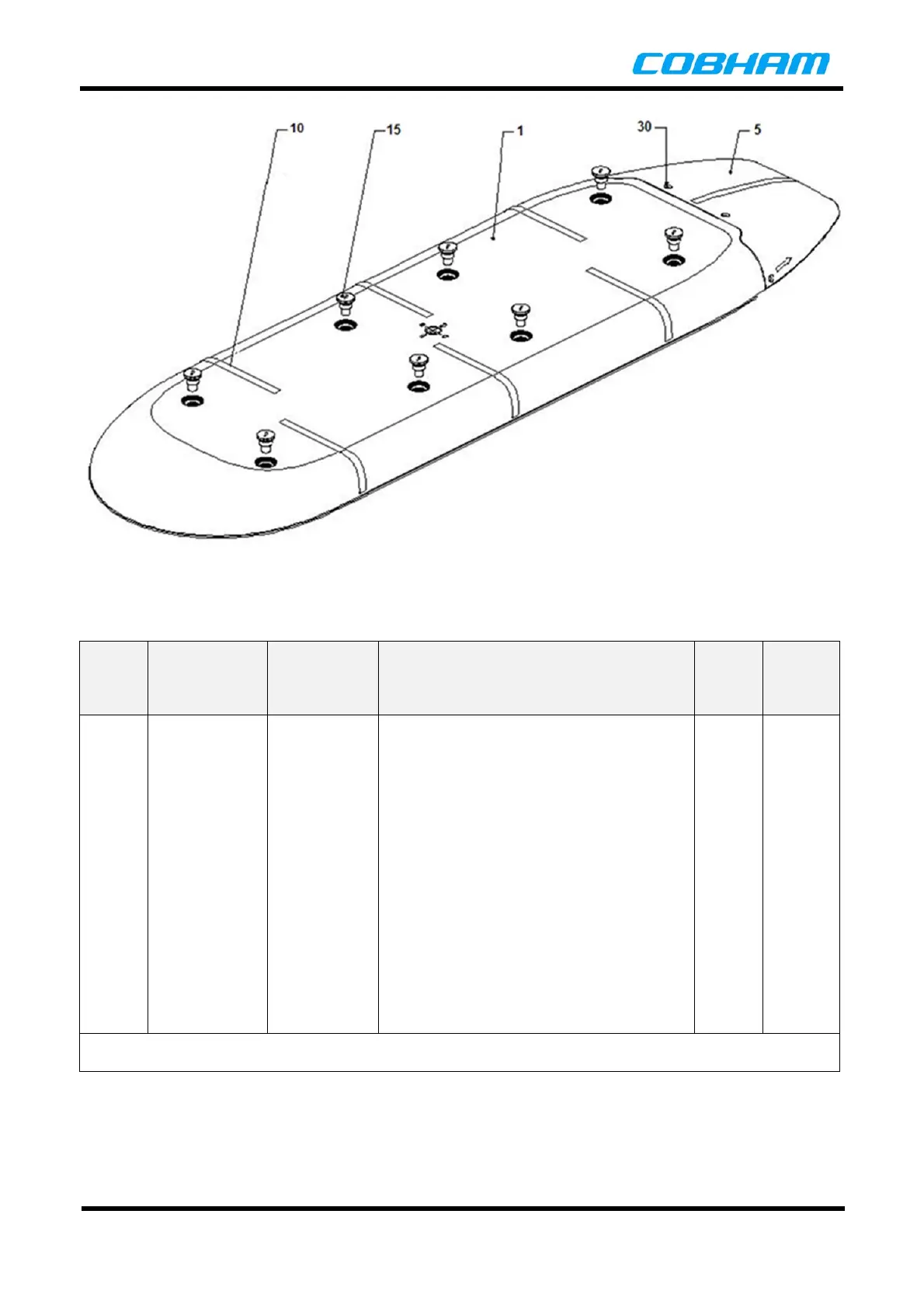

Figure 18: IPL – HGA-7001 Antenna
Fig. &
Item
No.
Part
Number
Airline
Part
No.
Nomenclature
1 2 3 4 5 6 7
Eff
Code
Units
Per
Assy
18
1 See Table 1 HGA-7001 High Gain Antenna 1
10 500-A0745 Lightning diverter strip 7
-40 500-A0480 Silicone O-ring 8
5 780-A0601 HGA-7001 Tail Cap Assembly 1
-30 500-A0742 Screw, csk (head 100 deg), Phillips,
8-32x3/8,Alloy steel
4
-15 780-A0484 Mounting Hole Sealing Kit 1
“ – “ ITEM NOT ILLUSTRATED
To Next Page
