2. DESCRIPTION AND OPERATION
2.1 Description
The HGA-7001 High Gain Antenna is an ARINC 781 compliant low-profile, electronically-steered,
phased array SATCOM antenna. The antenna complies with the Inmarsat Aeronautical SDM
requirements for high gain service. The antenna contains an integrated beam steering unit (BSU) and
receives command information directly from the SDU. Refer to Figure 1 for a block diagram of the
SATCOM system.
Electrical interface to the antenna is made through a TNC connector for RF interface and a multi pin
connector for power and data. The connectors are accessible through a compartment under the
antenna Tail Cap [IPL 18-5].
Refer to the frontispiece for an overall view of the equipment. Table 2 lists the equipment covered by
this manual.
Table 3 is a list of associated equipment. Table 4 lists related publications.
Aircraft'sInertial
ReferenceSystem
DLNA
HPA‐ Hi ghPowerAmplifier
HGA‐7001HighGa inAntenna
IntegratedBSU
PhasedArrayAntenna
RF
Userandsysteminterfaces
Userandsysteminterfaces
SatelliteDataUnit
Control/BITE
Data
Rx Tx

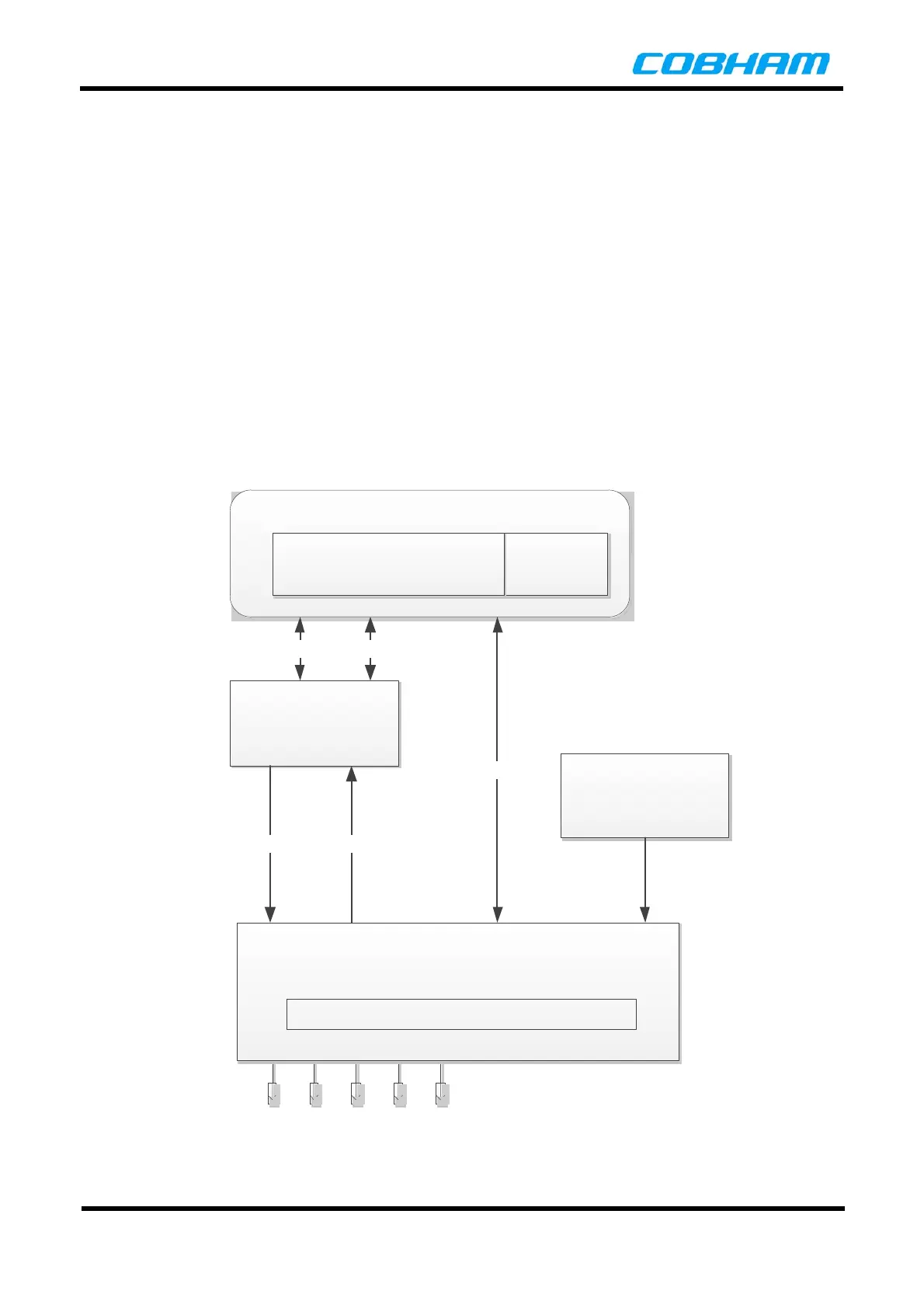

Figure 1: ARINC 781 SATCOM System Block Diagram
