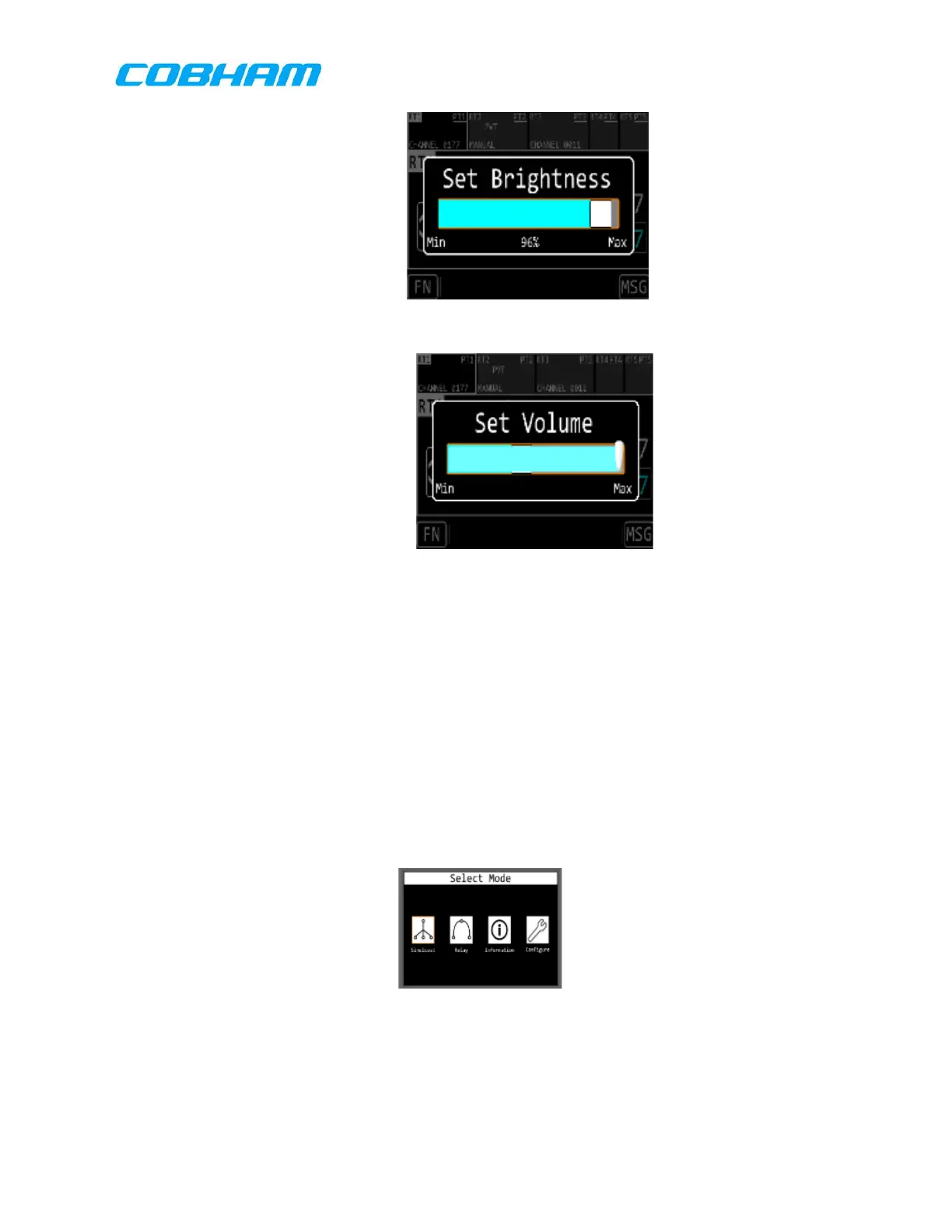

Figure 8-5 Display Brightness
(13.) Verify that the “Set Brightness” display bar varies as the outer knob is rotated.
(14.) Turn the left inner knob left and right.
(15.) Verify that the “Set Volume” window appears as shown in Figure 8-6. *
(16.) Rotate the left inner knob fully clockwise and verify that the “Set Volume”
window indicates 100.
(17.) Rotate the left inner know fully counterclockwise and verify that the “Set
Volume” window indicates 0.
(18.) Press the “MENU” button.
(19.) Verify that the display changes to the “Select Mode” menu as shown in Figure
8-7
(20.) Press the “HOME” button.
(21.) Verify that the menu returns to the default display similar to Figure 8-8.
(22.) Rotate the right outer knob to select “FN”.
Figure 8-6 Volume Slider
Figure 8-7 Select Mode Menu
