COBHAM RT-7000 RCDU - Table 7-10: Antenna Tuner J3 Signals

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 96 of 138
PI
N
SIGNAL NAME
Connection
Wire
Destination
A
Tuning Control A
24 TST
Antenna J401-A
B
Tuning Control B
Antenna J401-B
C
Tuning Control C
Antenna J401-C
D
Tuning Control D
24 TST
Antenna J401-D
E
Tuning Control E
Antenna J401-E
F
Tuning Control F
Antenna J401-F
G
Tuning Control G
24 TST
Antenna J401-G
J
Tuning Control J
Antenna J401-J
K
Tuning Control K
Antenna J401-K
H
Ground
20
Shields

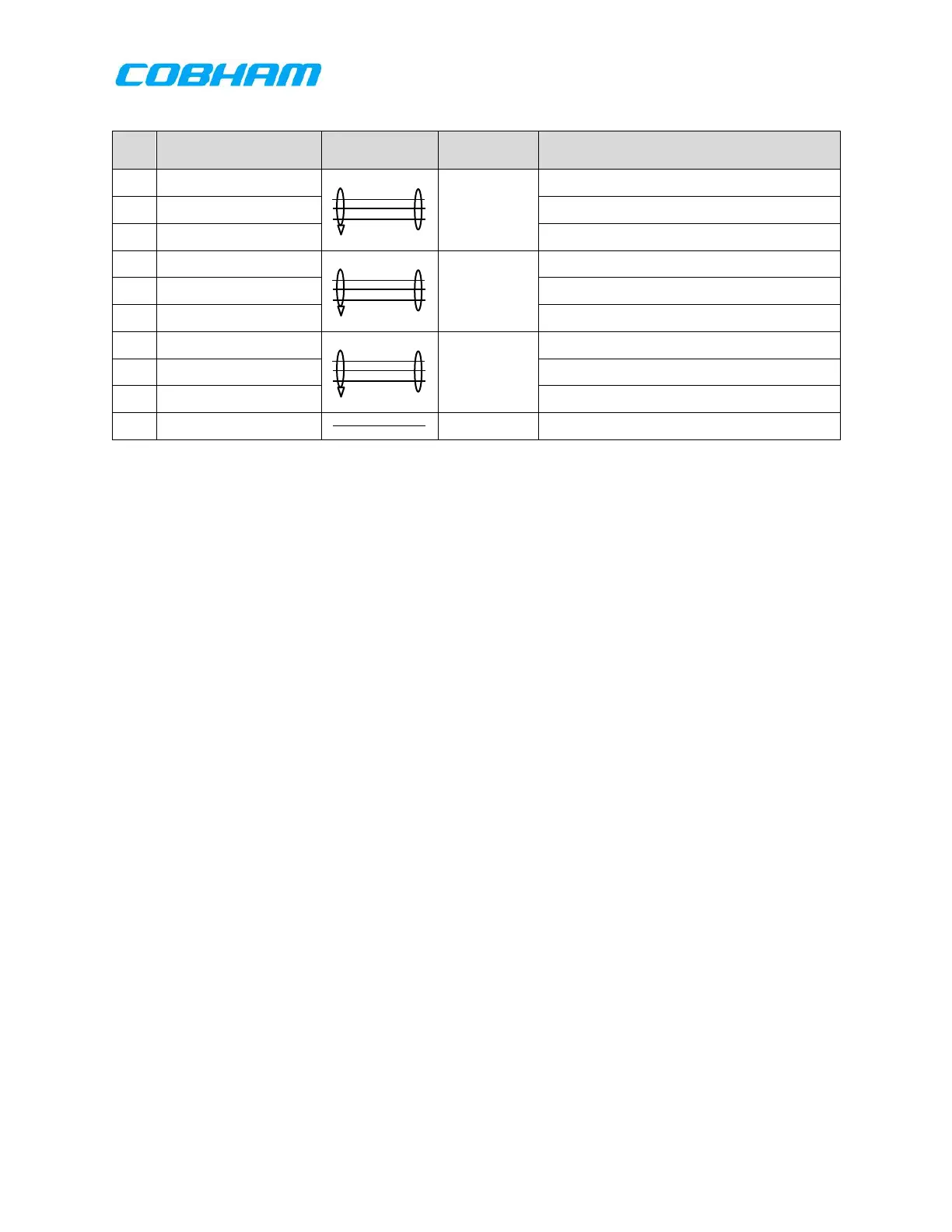

Table 7-10: Antenna Tuner J3 Signals
