4.1 PROGRAMMING EQUIPMENT AND IDENTIFICATION
4.1.1 PROGRAM CABLES
In the table and diagrams below you can identify the Programming cables and connections
required to program the RT-7000. As shown in Table Table 4-2: Programming Cables, you can
find the list of programming cables. In Figure 4-1 RT-7000 Programming Cable Diagrams, you
can find three diagrams showing the various ways to connect with the RT-7000.
Part Number
Programming Cable Description
123-371761-XX
CABLE ASSY, MICRO-D to MOTOROLA GCAI Interface
129-271602
CABLE ASSY, MICRO-D to KVL, CRYPTO KEY LOADING
129-271603-XX
CABLE ASSY, MICRO-D to RS-232, MISSION DATABASE
129-271601
CABLE ASSY: GCAI to USB
Table 4-2: Programming Cables
Cable Connection Diagram Motorola Tools
Aplicable to Motorola APX CPS and for the Motorola KVL3000 and KVL4000
COBHAM
RT7000
USB
HOME MENU
Cobham
APX
123-371761-XX
Motorola
APX CPS
129-271601
COBHAM
RT7000
USB
HOME MENU
Cobham
APX
123-371761-XX
129-271602
Motorola
KVL Keyloader
Cable Connection Diagam Cobham Tools
Applicable to the Cobham Tools ICT and MCT
COBHAM
RT7000
USB
HOME MENU
Cobham
ICT & MCT
129-271603-XX

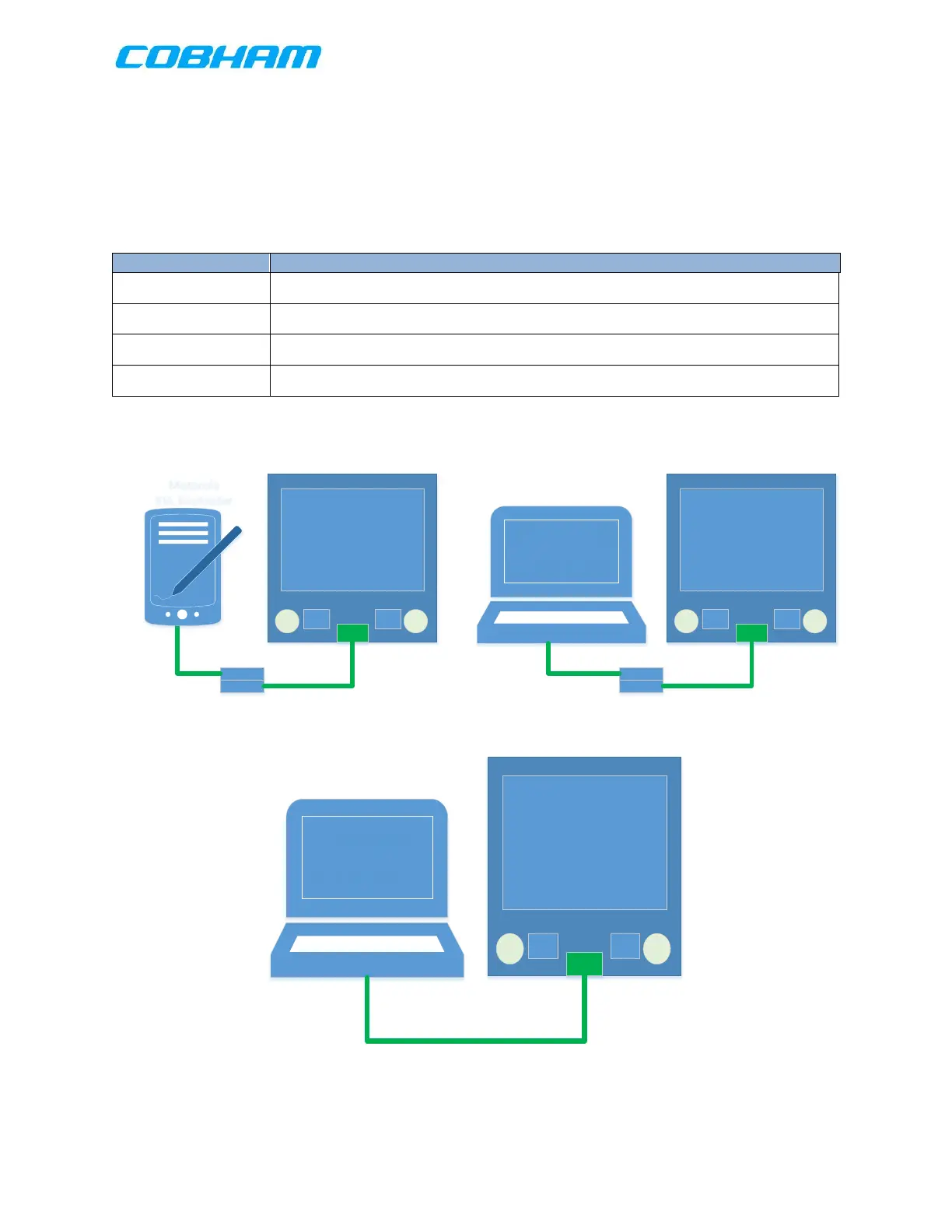

Figure 4-1 RT-7000 Programming Cable Diagrams
