Page 26 of 138

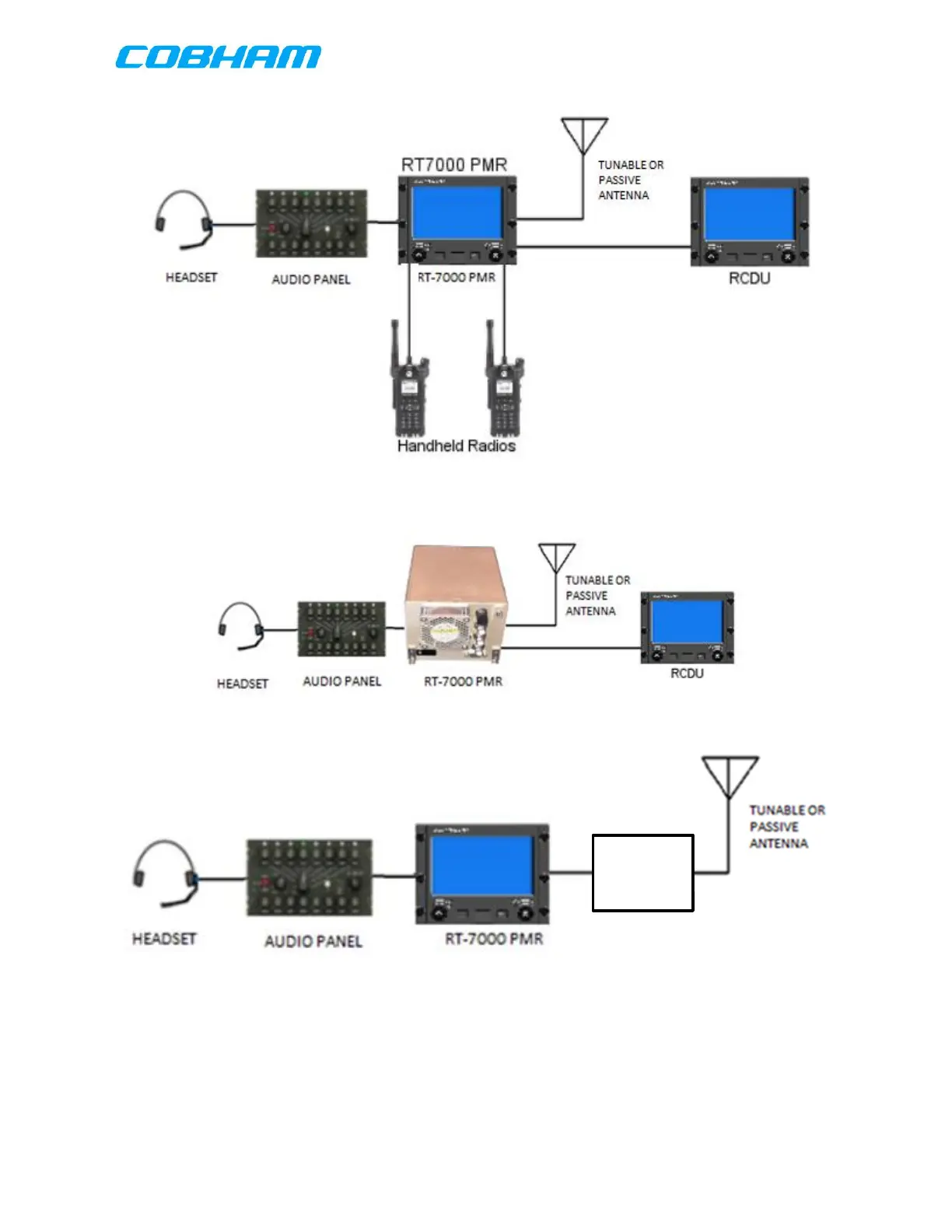

Figure 5-7: RT-7000 PMR with up to 2 (optional) Hand Held Radios and optional RCDU
Figure 5-8: RT7000 RMR with RCDU
Figure 5-9: RT-7000 PMR with 118 MHz HPF (for radio systems requiring certification to
TSO-C169a)
Note: Not all installation configurations are shown here. The 118 MHz HPF goes into
the antenna feed line, as shown above, for PMR and RMR installations with either a
passive or tunable antenna. If the system contains multiple Wideband Transceivers
(CWTs), a 118 MHz HPF is required in the antenna feed line for each CWT.
118 MHz
HPF
