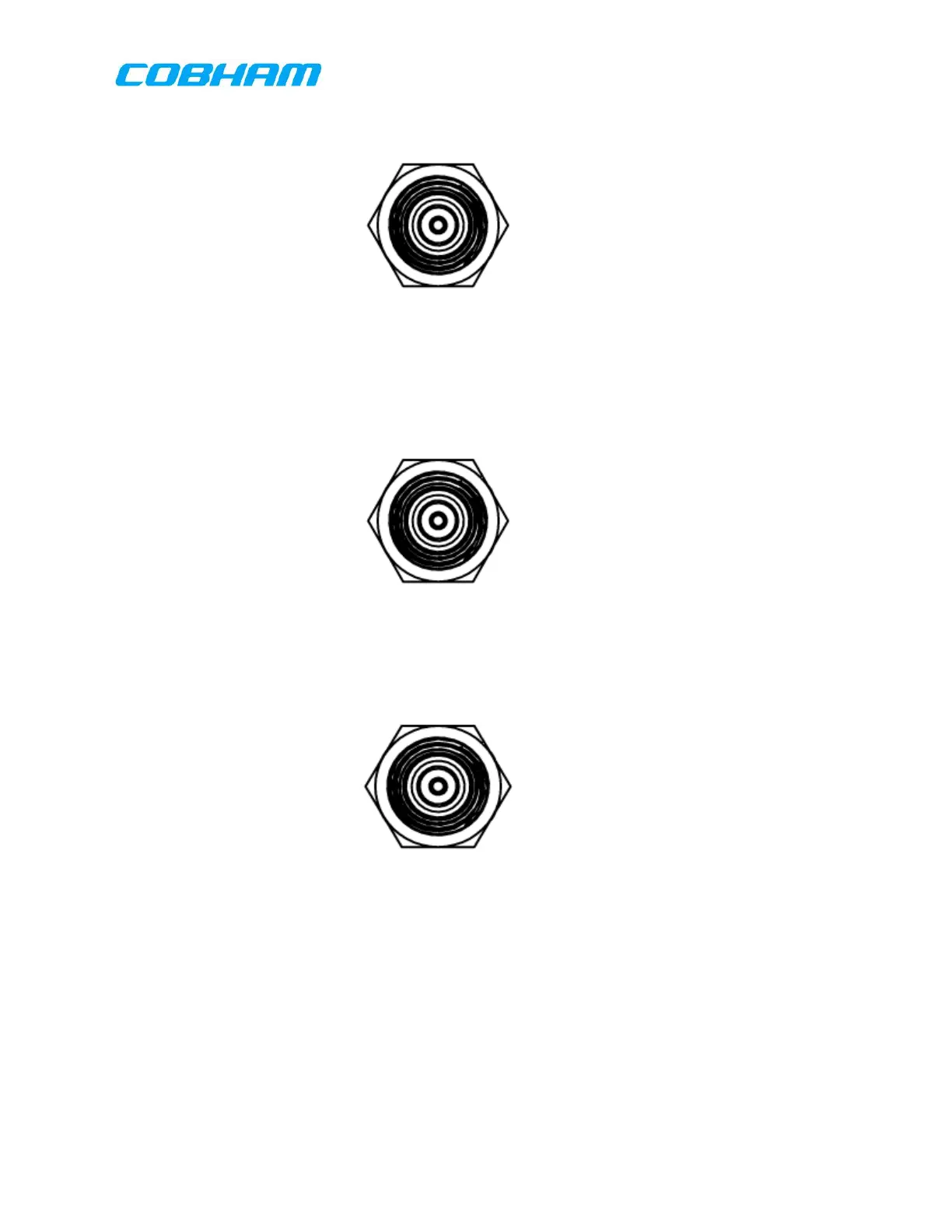

50 Ω TNC
(3) NC
NC connects the antenna switching unit to the low split antenna. NC is a TNC
connector with mating connector Amphenol P/N 122393 (for LMR400 Coax) or
equivalent.
50 Ω TNC
(4) NO
NO connects the antenna switching unit to the high split antenna. NO is a TNC
connector with mating connector Amphenol P/N 122393 (for LMR400 Coax) or
equivalent.
50 Ω TNC
D FC-570/FC-580/FC-5000 Antenna Tuning Unit Wiring Considerations
Interconnections between the RT-7000 PMR , antenna tuner, and antenna are
identical for the FC-570/AT-570, and FC-5000/AT-5000. See Figure 7-12.
(1) J1
The J1 connector provides tuning information between the RT-7000 PMR and the
tuner. J1 is a KPTO2E-14-19P, 19 pin connector, with aircraft mating connector:
KPT06E-14-19S
