IP1500 and IP2500 Series
Administrator Guide
AuxiliaryOutputExpandedFunctionality&UseCase
Thespeakerphonev2AuxOutputabilitieshasbeenexpandedforuniqueusecases:SecurityPer-
sonal Access Control.
Example:
Gate or Door Control
EitheroutputcanbeconguredtoactivateuponthecalledpartiesuseoftheDTMFkeys4or5on
HisorHerphone,forapredeterminedtimeperiodneededbytheGateMechanism(example-4
seconds).

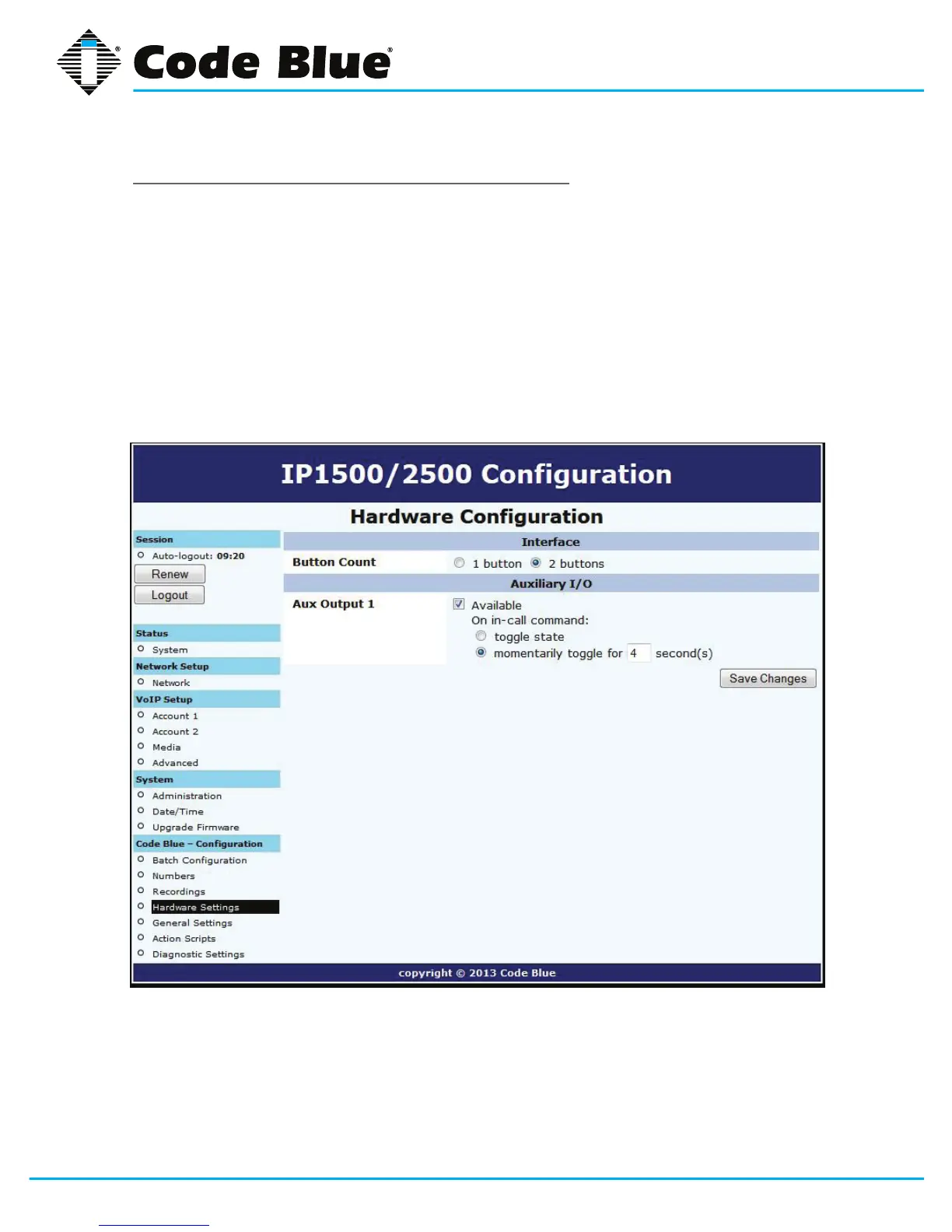

 SettingupAuxiliaryOutput1toMomentarilyTogglefor4seconds.
Aux Output Momentary Toggle is best used for remote control operations and should not be com-
bined with Scripted Timed Aux Output timers or Incoming Calls > Aux Output > Enable when an
Incoming Call is active.
