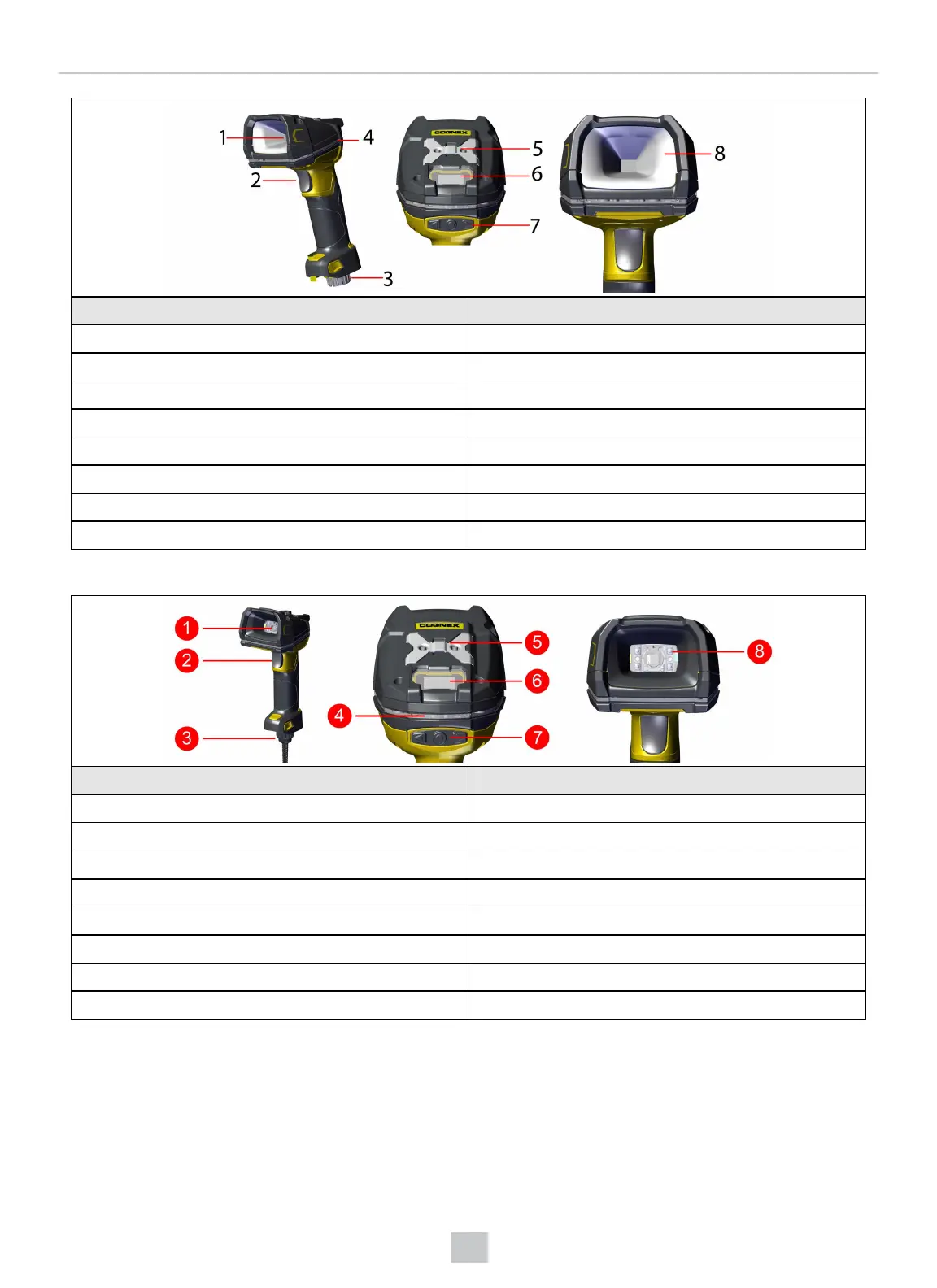

Number DataMan 8700 DQ Reader
1 LED aimer
2 Trigger (press and hold to read)
3 Cable insertion point (corded readers only)
4 360° ring light indicator
5 Lanyard hook
6 OLED display
7 OLED input and configuration buttons
8 Diffused light
Number DataMan 8700 LX Reader
1 LED aimer
2 Trigger (press and hold to read)
3 Cable insertion point (corded readers only)
4 360° ring light indicator
5 Lanyard hook
6 OLED display
7 OLED input and configuration buttons
8 Direct light
