Cognex DataMan 8700 - Base Station Mounting Options

Base Station Mounting Options
You can mount the base station in the following ways:
l
Horizontal mounting:
l
Into wood: use a 10 x 2 inch rounded head screw.
l
Into metal: use a 10 x 1 5/8 inch socket head cap screw.
l
Into metal: use an M5 x 40 mm socket head cap screw.
l
Vertical mounting:
l
Into wood: use a 10 x 2 1/4 inch rounded head screw.
l
Into metal: use a 10 x 1 7/8 inch socket head cap screw.
l
Into metal: use an M5 x 40 mm socket head cap screw.
Note: If you mount the base station into drywall, use additional drywall anchors.

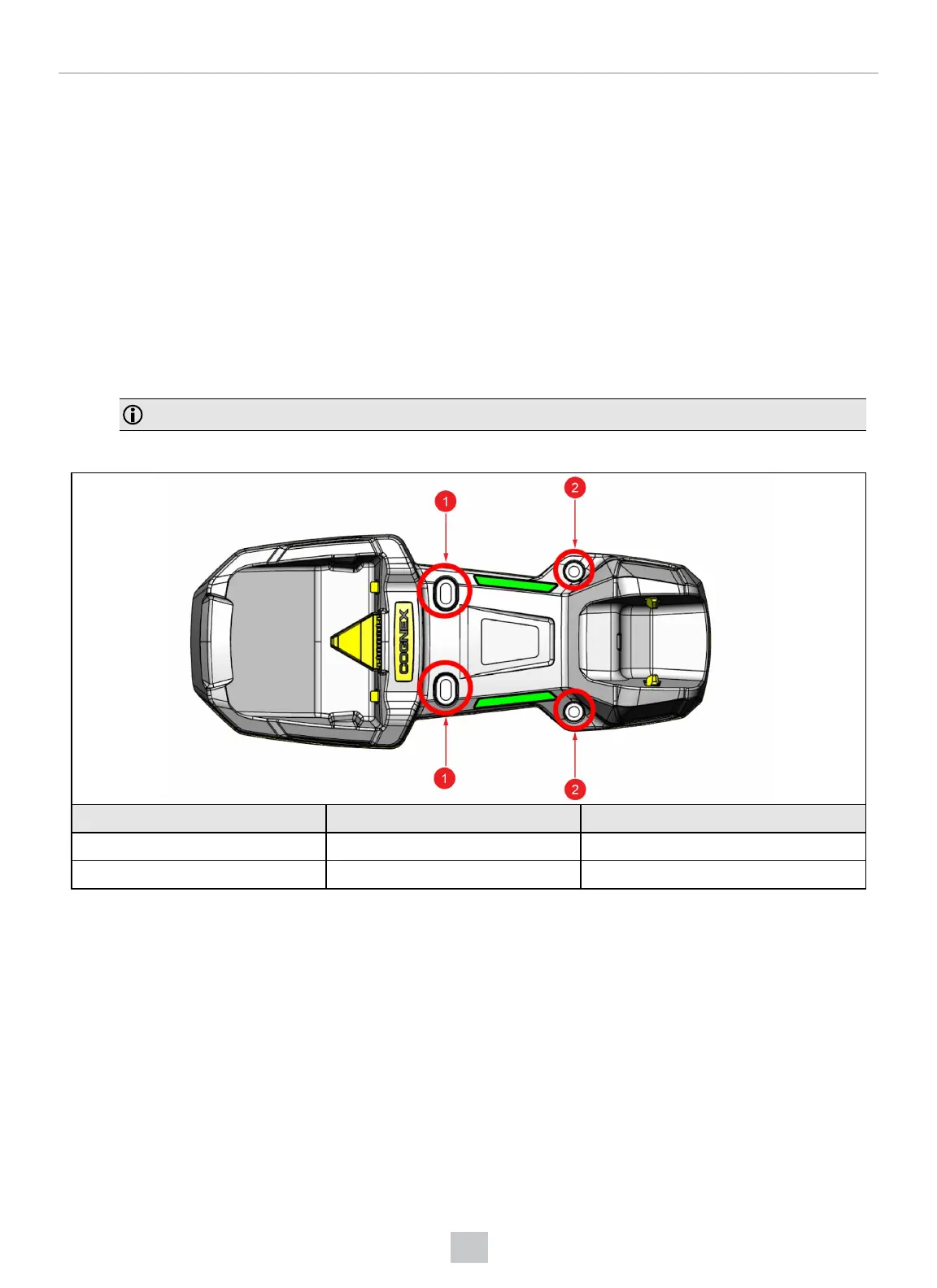

Recommended torque for mounting the base station:
Number Description Maximum Recommended Torque
1 Top-side mounting holes 0.5 Nm
2 Top-side mounting holes 0.2 Nm
