DM8700 DX Depth of Field Values
Distances in mm / 1D min code Distances in mm / 2D min code
0-650 50 MIL 0-650 50 MIL
0-1000 100 MIL 0-1000 100 MIL

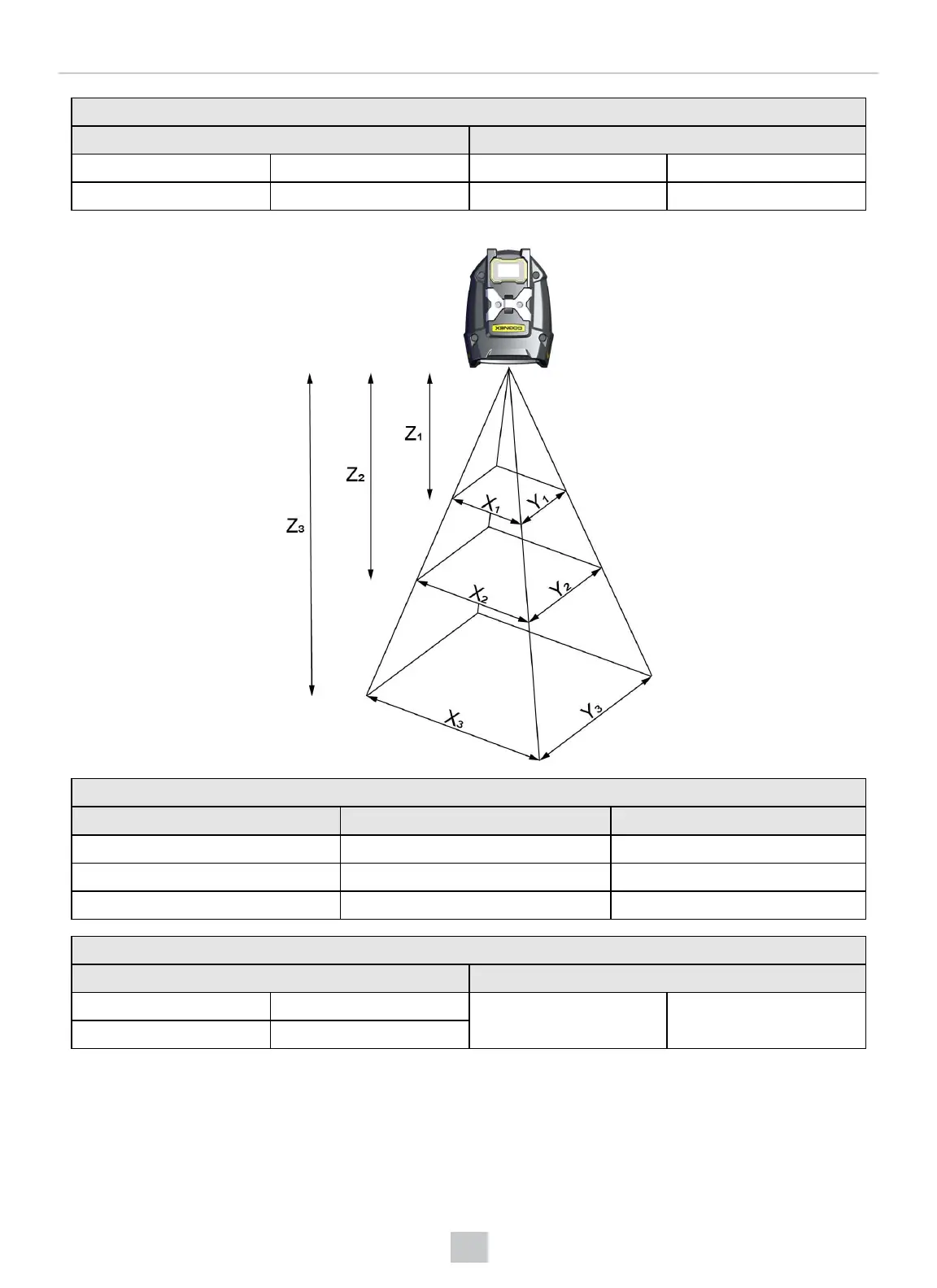

DM8700 DQ Field of View Values
Working Distance Horizontal Values Vertical Values
Z
1
= 48 mm (1.9 in) X
1
= 79 mm (3.1 in) Y
1
= 60 mm (2.4 in)
Z
2
= 140 mm (5.5 in) X
2
= 148 mm (5.8 in) Y
2
= 111 mm (4.4 in)
Z
3
= 300 mm (11.8 in) X
3
= 275 mm (10.8 in) Y
3
= 206 mm (8.1 in)
DM8700 DQ Depth of Field Values
Distances in mm / 1D min code Distances in mm / 2D min code
25-70 3 MIL 10-60 5 MIL
55-300 30 MIL
49
Reading Codes with the DataMan 8700
