10. INSTRUMENT PANEL COMPONENTS

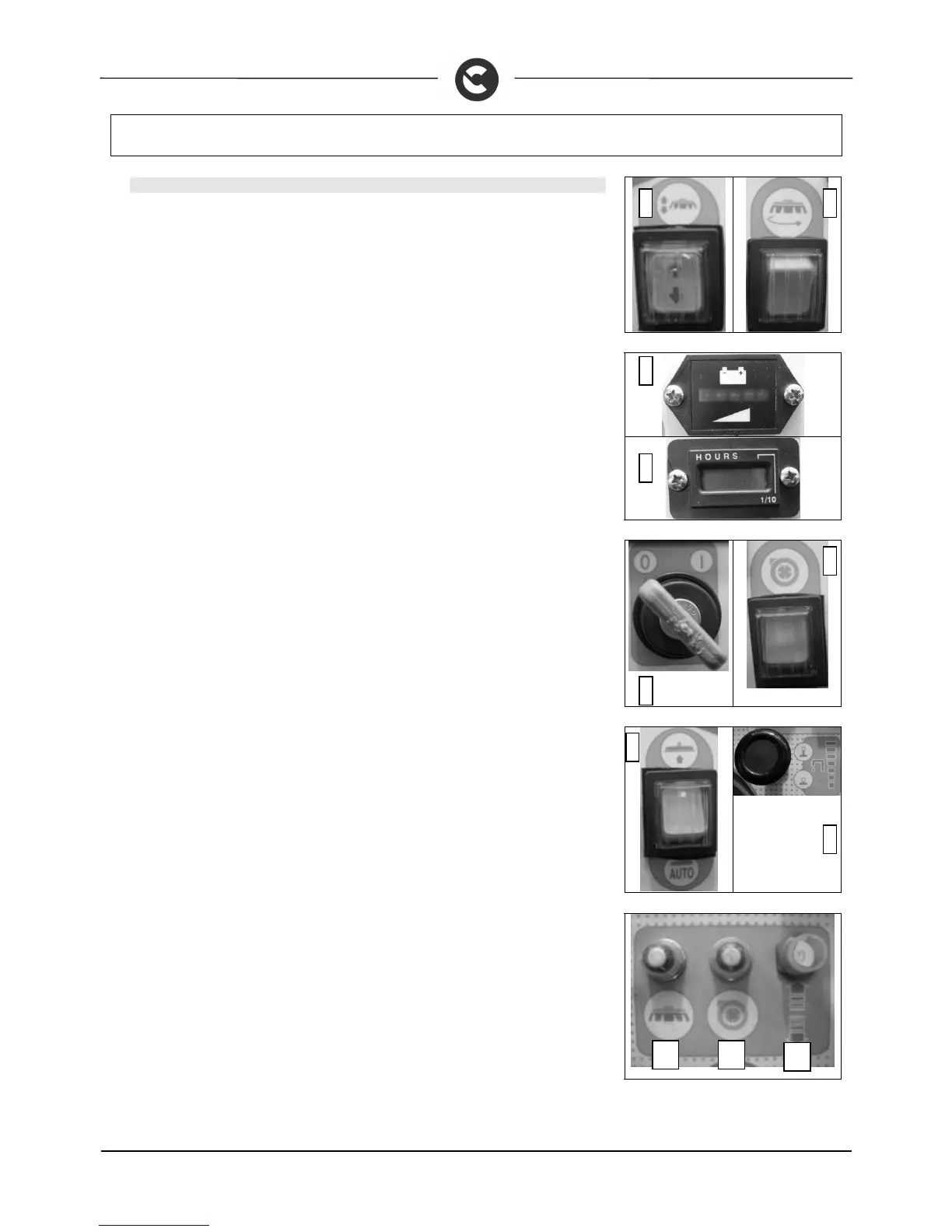

The instrument panel components are identified as follows:
1. Momentary bipolar two-way switch for moving the base.
2. Momentary bipolar switch for brush release.
3. Battery charge level card
4. Digital hour-counter
5. Main key switch.
6. Bipolar switch for turning the suction motor off.
7. Bipolar two-way switch for moving the squeegee.
8. Tap lever command cable.
9. Thermal trip unit for the brush(es).
10. Thermal trip unit for the brush(es).
11. Thermal trip unit for the suction motor.
12. Thermal trip unit for the traction motor.
1 2
3
4
5
6
7
8
12
11 9-10
