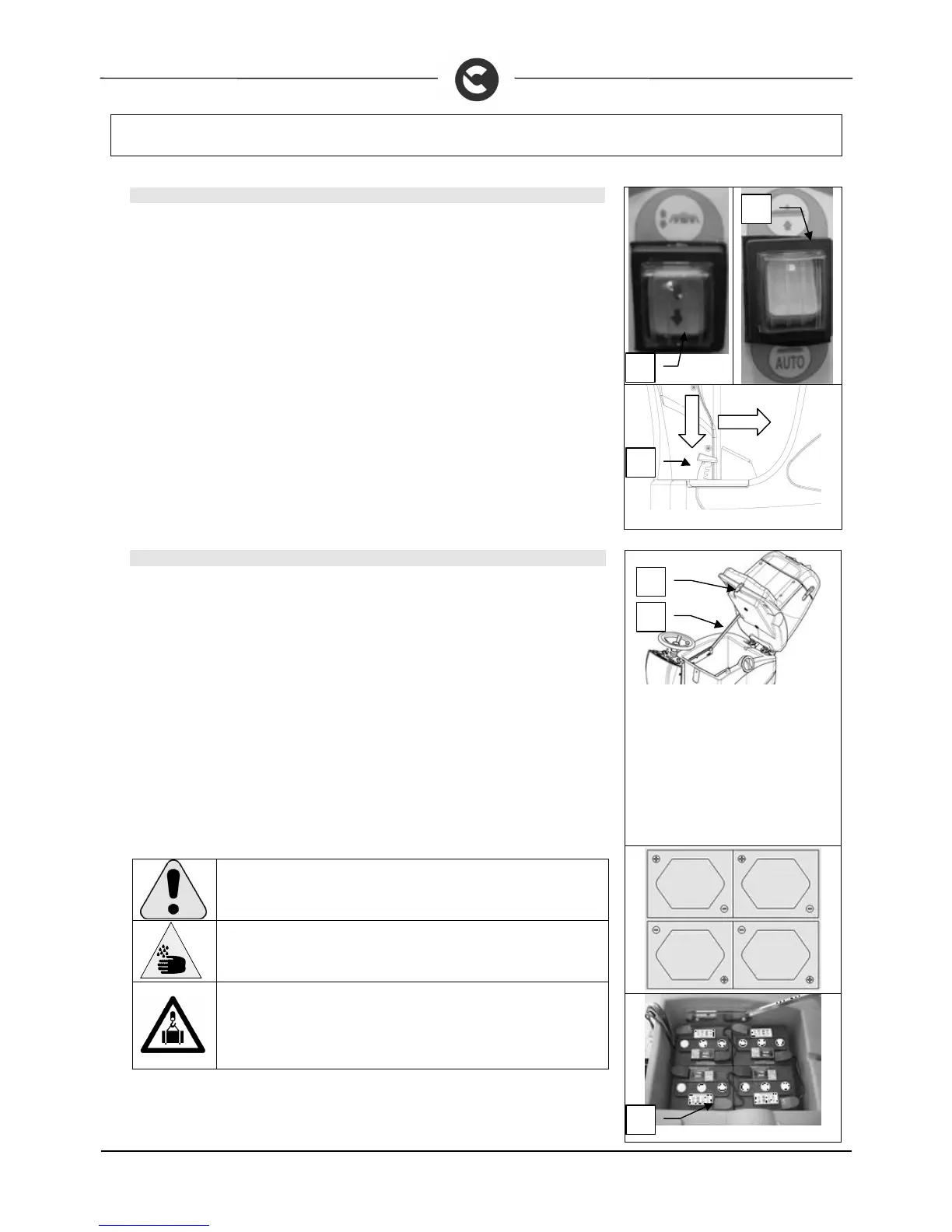

MACHINE PREPARATION
4. HOW TO MOVE THE MACHINE
1. To safely move the machine, you should use a pallet to support it
(positioning wooden wedges to block the wheels, as shown in the previous
paragraph).
2. Lower the squeegee using the switch on the command panel (1). To
assemble the squeegee, read the “ASSEMBLING THE SQUEEGEE” paragraph.
5. INSERTING/CONNECTING THE BATTERIES
The machine may be supplied with batteries and a built-in battery charger.
If batteries other than those supplied with the machine are used, have the
battery charger and battery control card configuration checked by a qualified,
COMAC-trained technician.
Perform a battery charging cycle before using the machine.
The batteries must be housed in the special compartment beneath the recovery tank.
To insert the batteries you must:
1. Engage the machine's parking brake
2. Release the hinge (1) on the front part of the solution tank
3. Rotate the recovery tank as far as it will go on the prop (2)
4. Lift the batteries by means of the grips on the upper part
5. house the batteries in the compartment, positioning the poles “+” and “-“
opposite each other
6. Check that the machine's master switch is in the "OFF" position
7. connect the batteries in series - using the supplied jumper cable (3) - to the
poles “+” and “-“
8. Connect the battery connector cable to the terminal poles “+” and “-“ to
obtain a voltage of 24V on the terminals
ATTENTION: you are advised to use airtight batteries only, to
avoid the leakage of acids!
ATTENTION: you are advised to have the electric connections
made by a qualified, COMAC-trained technician
ATTENTION: you are advised to always wear protective gloves,
to avoid the risk of serious injury to your hands
ATTENTION: You are advised to only lift and move the batteries
with lifting and transportation means suitable for the specific
weight and size
