MACHINE PREPARATION

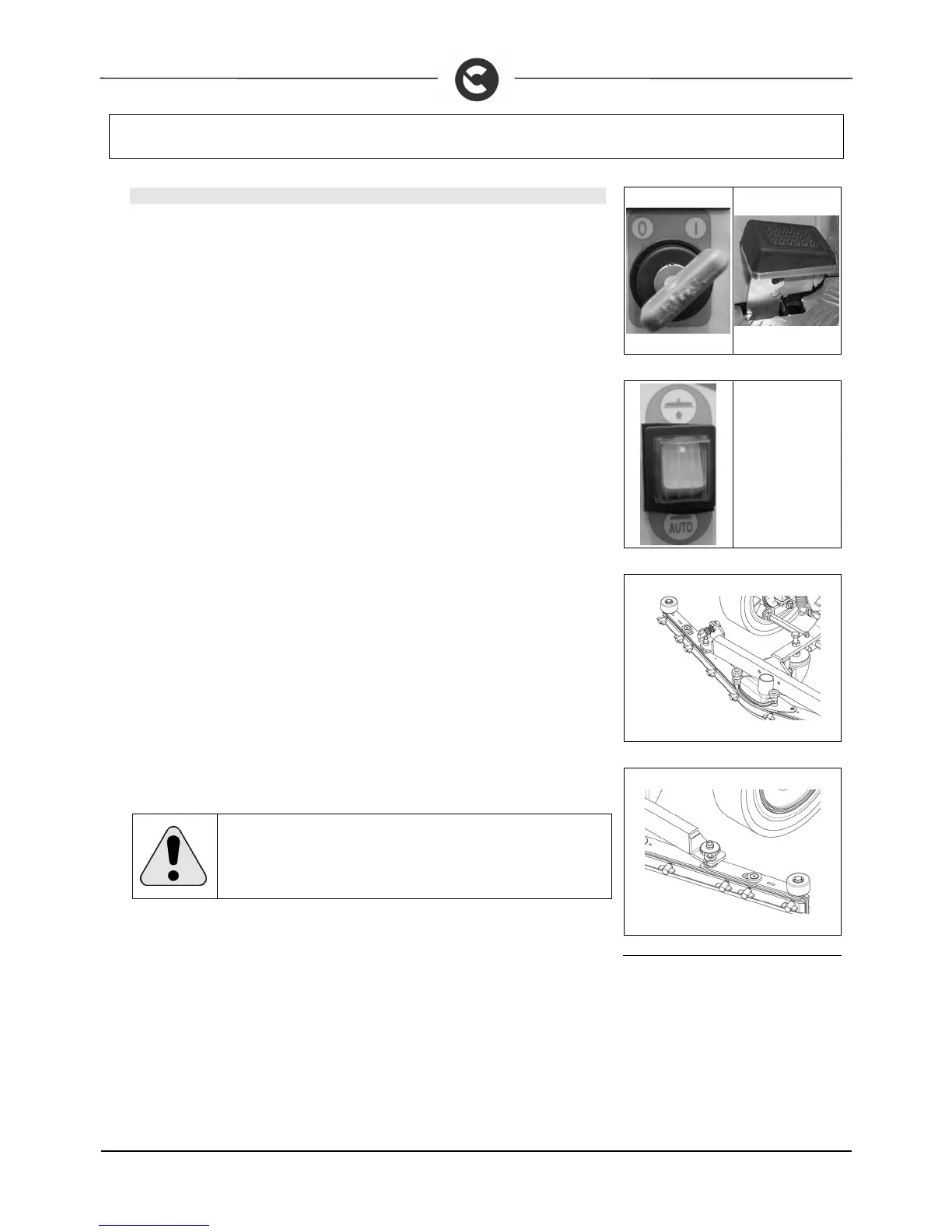

12. ASSEMBLING THE SQUEEGEE
The squeegee, that for reasons of packaging comes disassembled from the
machine, must be assembled while assembling the machine. Proceed as
follows for assembly:
1. Turn the key of the master switch anticlockwise to the “ON” position.
2. Engage the parking brake on the left side of the machine.
3. Raise the squeegee connection using the bipolar two-way switch on the
command panel.
4. Lift the squeegee and fit the left stud in the slot on the squeegee connection.
5. Rotate the squeegee until the pin on the right side of the main body is
inserted in the slot on the squeegee connection.
6. Check the left-hand pin is inside the squeegee adjustment pin.
To make this operation easier, the squeegee adjustment pin must be loosened
beforehand. Close the squeegee adjustment pin.
7. Insert the suction tube (3) in the appropriate sleeve on the squeegee,
ensuring that the suction tube lies to the right of the lifting cable.
ATTENTION: these operations must be carried out using
protective gloves to avoid any possible contact with the edges or
tips of metal objects
