How to reach the modules
37
HS-RC-C5E-MAN_03.fm
00/0309
5.3.2 Upper panel
Equipment
Allen spanner 3 mm
Fastening screws
TSEI M5 no. 2
Be careful
– Terminals are in
protection
category IP2x
– The X120 terminal board is
energized also when the main
switch is off
Precautions
–Always
disconnect the power
from the mains
before reaching
the upper panel.
– Disconnect and padlock at the
power source.

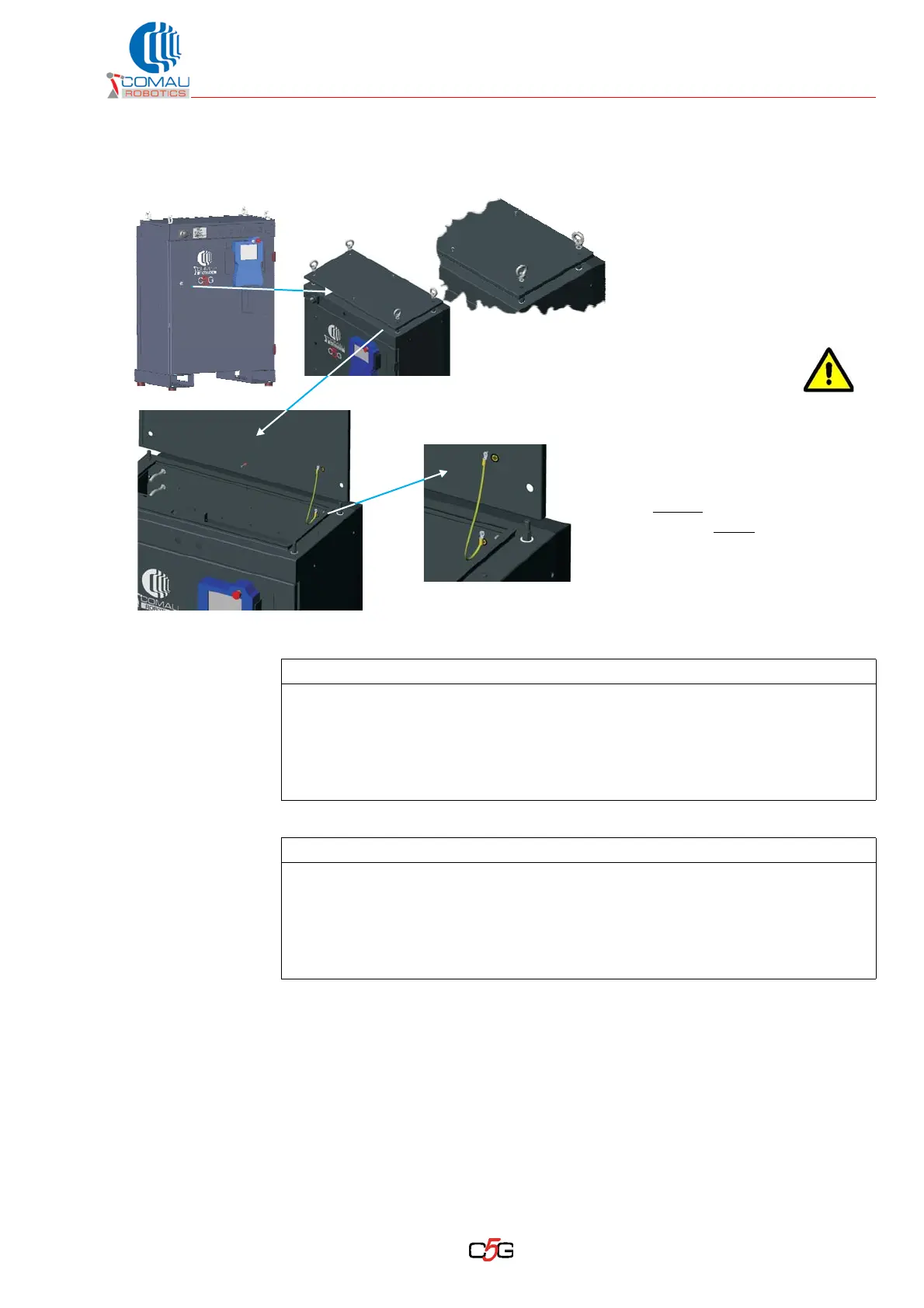

Cabinet upper panel opening procedure
a. Unscrew the 2 TSEI screws and the 4 eyebolts located on the panel (1).
b. Lift and move the panel (2) slightly away; be very careful to the earth connection
on the panel (3).
c. Disconnect the earth wire (3) from the movable panel side.
Cabinet upper panel closing procedure
a. Connect the earth wire (3).
b. Lay the panel and tighten the 2 TBEI screws without applying an excessive
torque.
c. Tighten the 4 eyebolts, making sure the 4 O-Rings in teflon are present.
1
2
3
