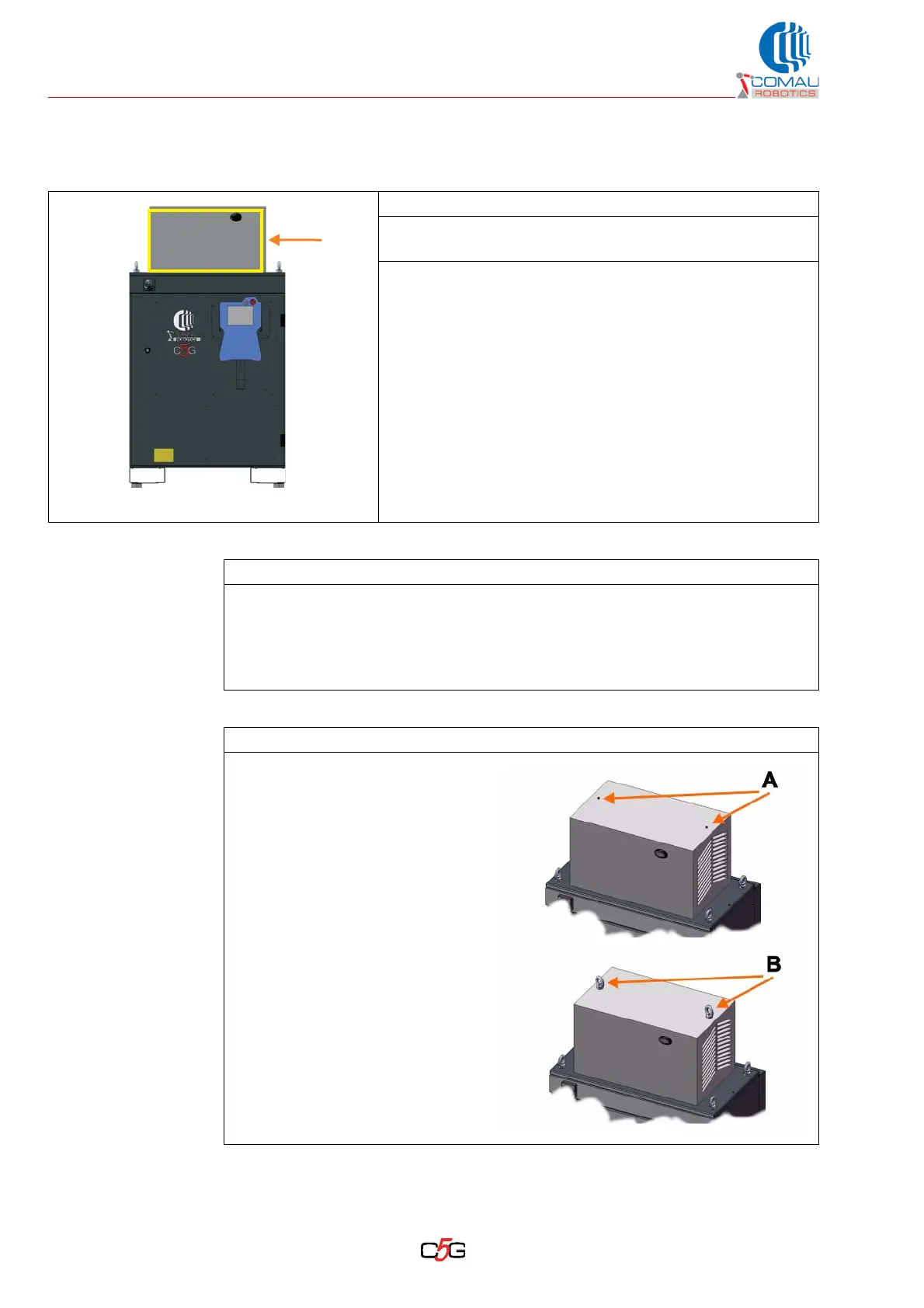

8.4 ACO: replacement
Air Conditioner Opzion
Front view
Status: – Main switch open (OFF)
Material: – Conditioner coplete with box roof (see
Tab. 9.6 - Conditioning)
Equipment: – M8 male eyebolts, supplied with the
conditioner
– Lifting system with 40 kg capacity (ex.
crane), with 2 1-m long ropes with
hook / shackle (Note: inside diamter of
conditioner eyebolt is equal to 20 mm)
– Crossheaded screwdriver
– Bladeheaded medium screwdriver
– 3 mm Allen wrench
Preliinary procedures / notes
– The compressor lubrication oil needs to stabilize. For this reason allow at least 8
hours before setting the conditioner at work.
– The procedure may be applied both in case of replacement of the conditioning
device on the Control Unit roof and on the Application Box roof, adapting the
references to the Control Unit to the Application Box.
Operating procedure
a. On the conditioner, remove the
2 upper bombé-headed screws
(A) that cover the eyebolt holes.
b. On the conditioner, screw in the
2 M8 eyebolt (B) in the screws
place. The eyebolts are usually
supplied with the Control Unit (if
equipped with the option). In
case they are no longer
available, use the ones
supplied with the new
conditioner.
To Next Page
