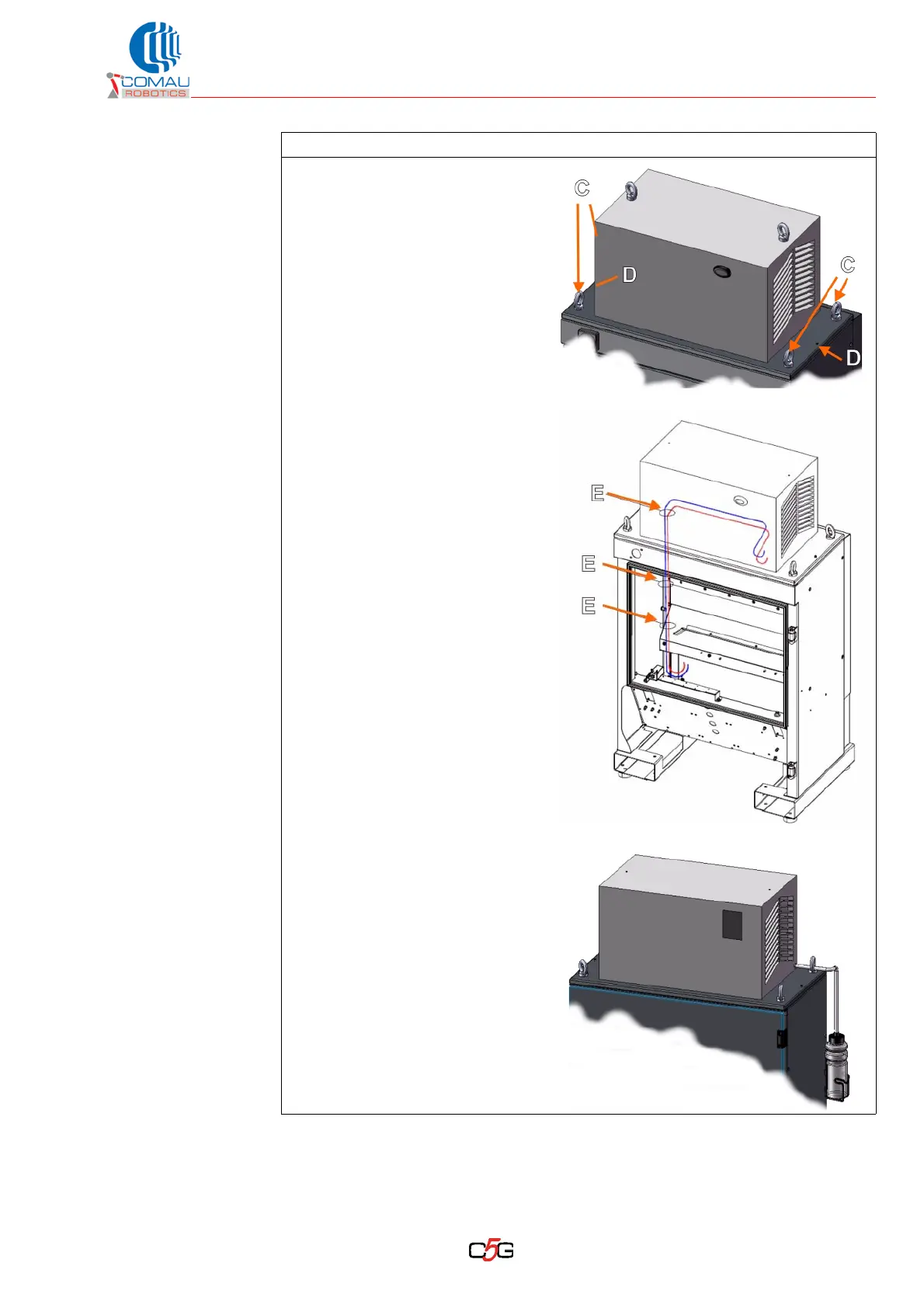

c. On the C5G, unscrew and
remove the 4 M12 female
eyebolts (C) on the roof.
d. On the C5G, unscrew the 2
TSEI M4 unlosable screws (D).
e. Disconnect the conditioner
connection cable inside the
box. it may be necessary to
remove 2 or more plastic
clamps (E). The cable is
connected un the terminal
board by the box base.
f. From inside the box disconnect
the earth wire connected to the
roof. The wire on the box
remains connected.
g. Remove the condensate
drainage pipe from the
collecting can and the eyebolt.
Operating procedure
