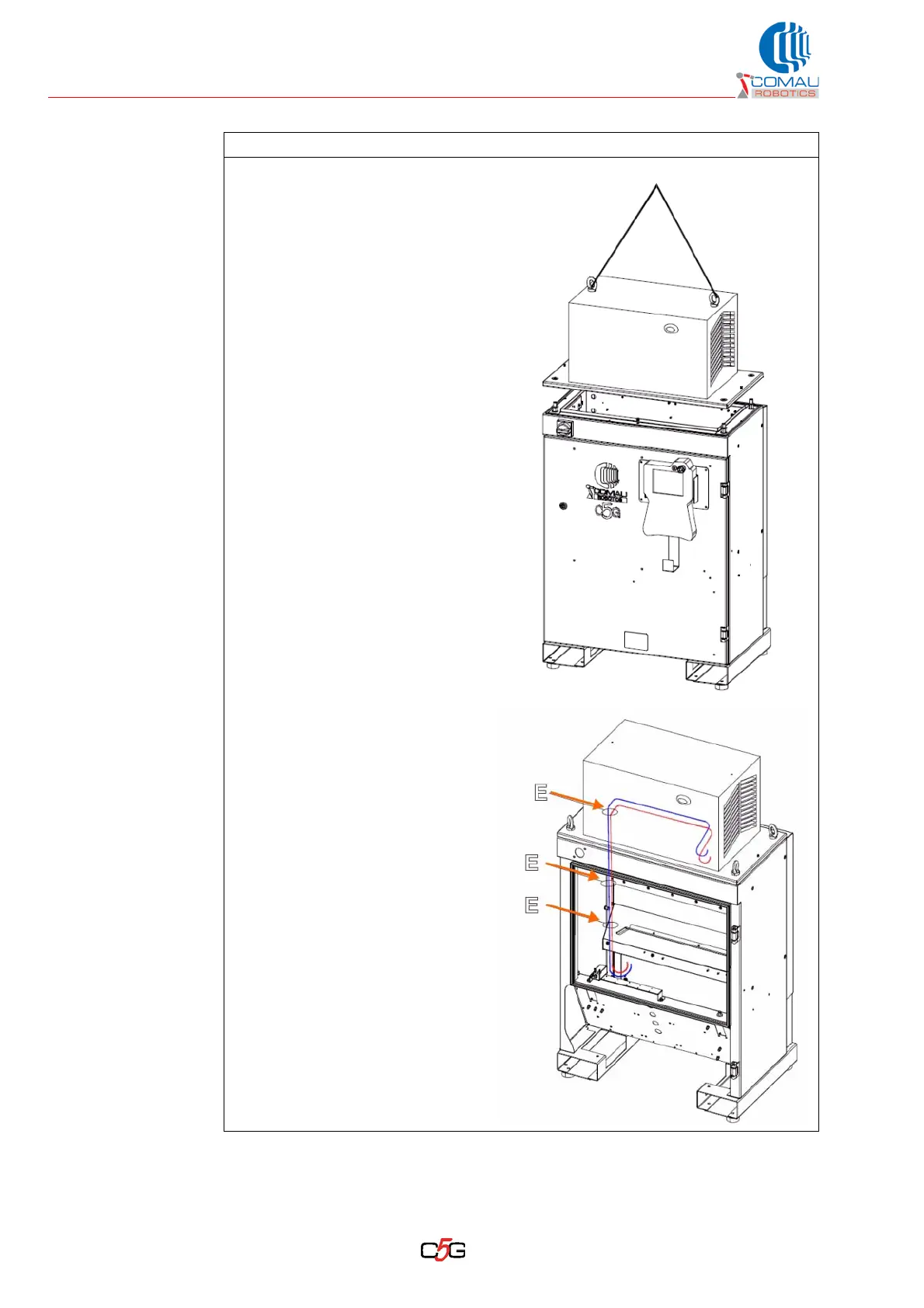

h. By means of 2 ropes and a
suitable lifting sustem, anchor
to the 2 eyebolts on the
conditioner. Lift perfectly
vertical, such as not to damage
the threaded bars that come out
the Control Unit, seat of the
removed eyebolts. Note: the
conditioner weighs 35 kg.
i. Place the conditioner removed
on the floor, remove the
anchoring system and lift and
place the new conditioner on
the Control Unit. Be careful with
the powering cable coming out
the conditioner and the earth
wire for the metallic roof
connection. Keep the
conditioner in front position (the
blind panel is located frontally).
j. Place the connection cable
tidily inside the Control Unit.
k. Fasten the cable using plastic
clamps(E).
