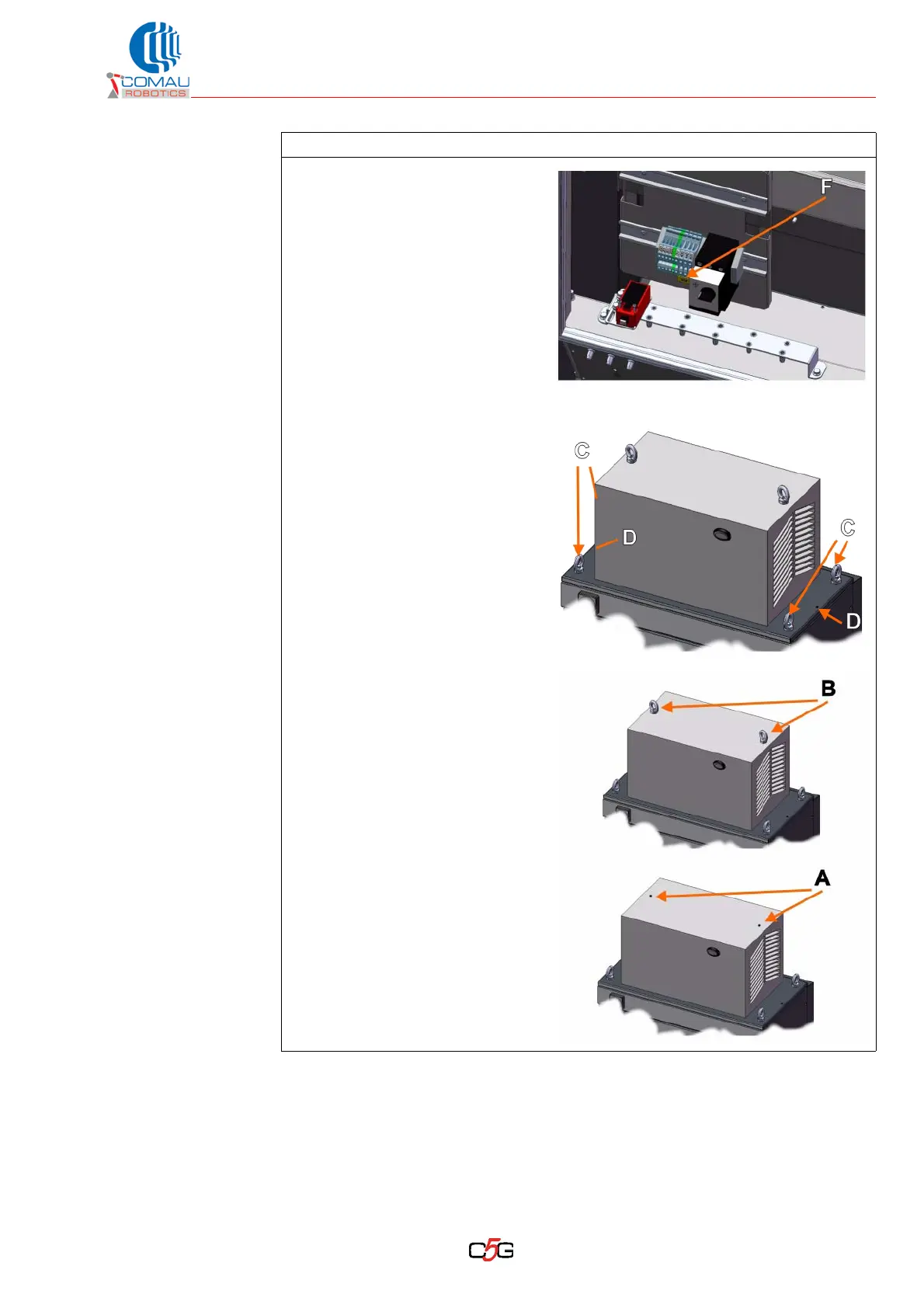

l. Connect the cable end on the
terminal board (F) by the box
base according to the
numbering on the wires. The
connection is on the lower side.
m. Restore the connsction of the roof eaarth wire.
n. On the C5G, crew in the 4 M12
female eyebolts (C) on the roof,
that are supplied with plastic
washers.
o. On the C5G, screw in the 2
TSEI M4 unloseable screws
(D).
p. On the conditioner, remove the
2 M8 eyebolts (B) and screw in
their place the 2 bombè-headed
screws (A). Put the eyebolts in
the Control Unit pocket, not to
lose them.
