How to reach the modules
38
HS-RC-C5E-MAN_03.fm
00/0309
5.3.3 Rear panel
Equipment
Allen spanner 3 mm
Fastening screws
TCEI M4 no. 2
Be careful
– Rotating fan
– Hot surfaces
Precautions
–Always
disconnect the power
before reaching the rear panel.
– Be careful to hot surfaces:
recovery resistance and
dissipator.

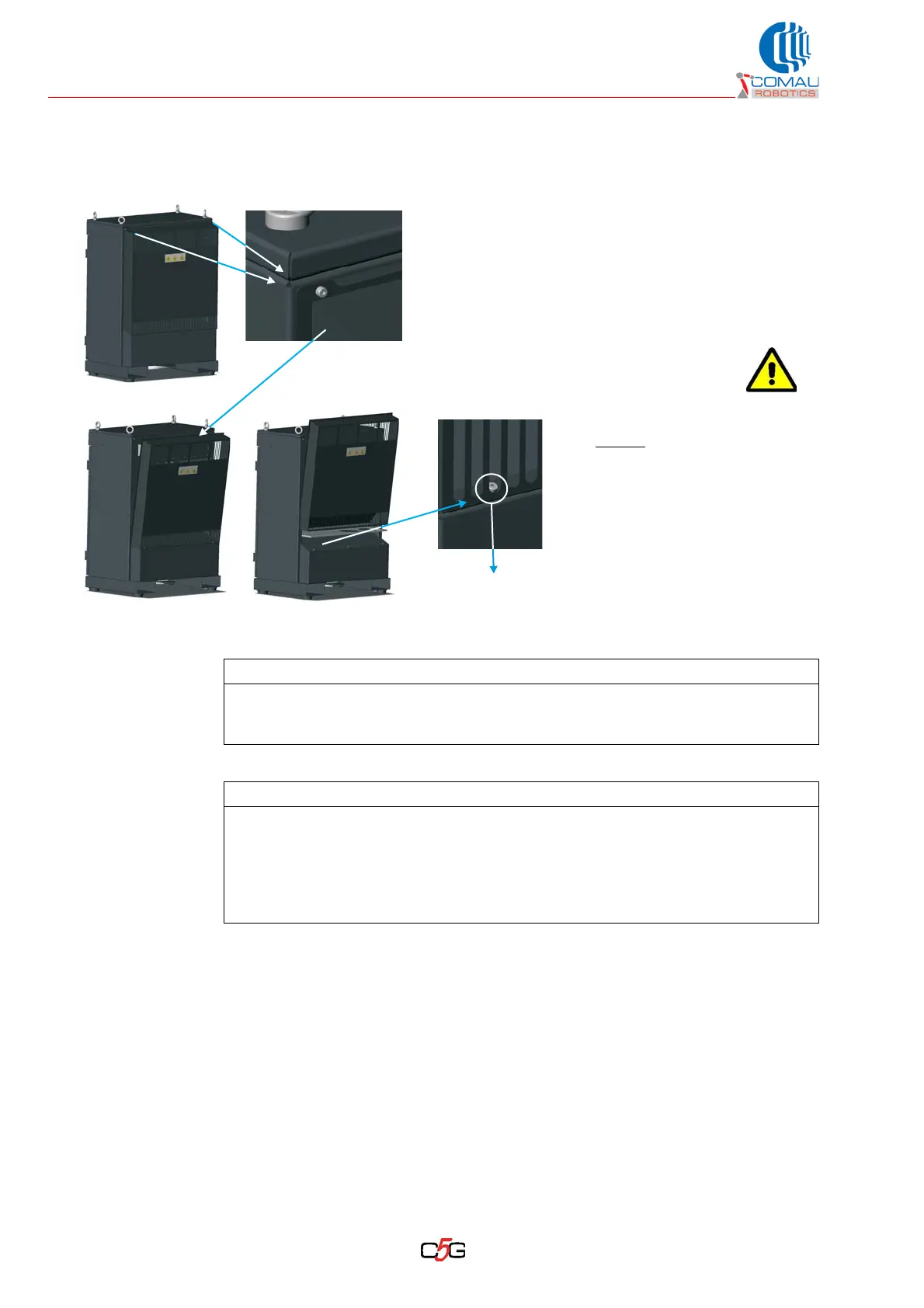

Cabinet rear panel opening procedure
a. Unscrew the 2 TCEI screws located on the panel (1) top.
b. Remove the panel (2) and lift it (3) to release it from the 3 lower pins.
Cabinet rear panel closing procedure
a. Place the panel on the cabinet lower part and have the 3 pins fitting together with
the holes in the panel (4) base.
b. Bring the panel near the cabinet.
c. Tighten the 2 TCEI screws without applying an excessive torque.
1
2 3
x3
4
