A LOOK AT THE COMMODORE 128

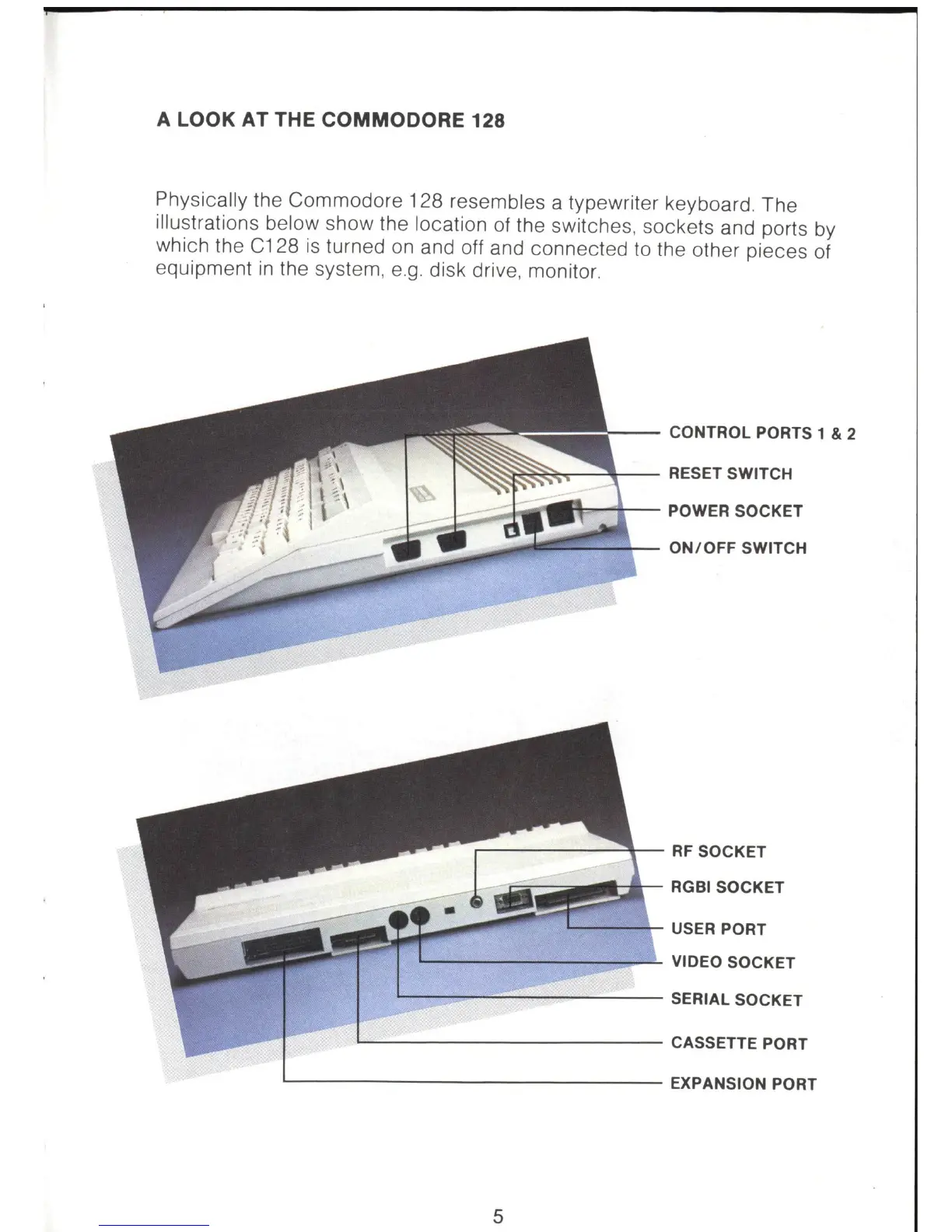

Physically the Commodore 128 resembles a typewriter keyboard. The
illustrations below show the location of the switches, sockets and ports by
which the C128
is turned on and off and connected to the other pieces of
equipment
in the system, e.g. disk drive, monitor.
CONTROL PORTS 1 & 2
~~ -~-- RESET SWITCH
1_ .. 1IIIm",- 4- - POWER SOCKET
.----------=~- RF SOCKET
RGBI SOCKET
1.---4- USER PORT
L- _______ "::!I',.....L VIDEO SOCKET
1.-_:::-_ = ______ SERIAL SOCKET
L- ____________ CASSETTE PORT
L- _______________ EXPANSION PORT
