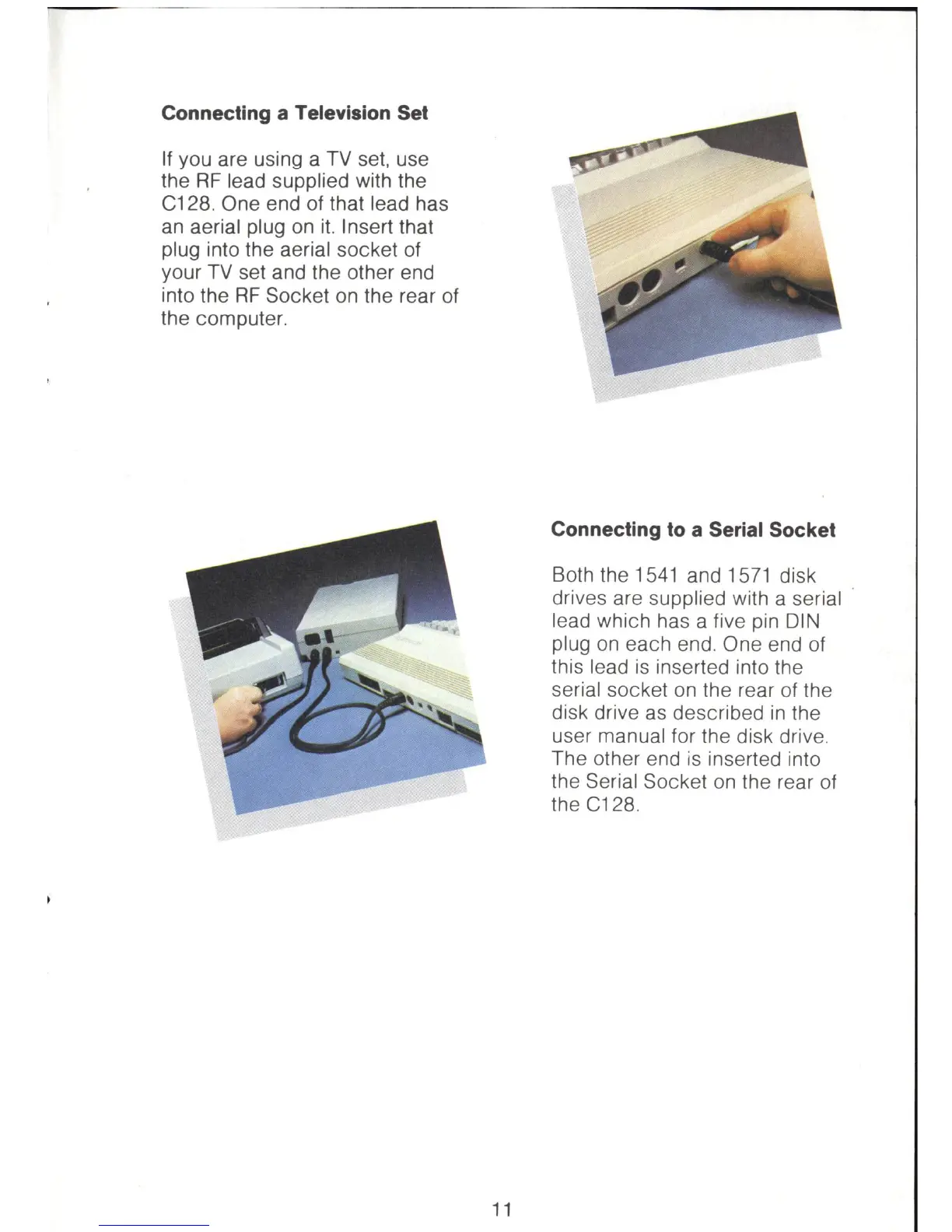

Connecting a Television Set
If you are using a TV set, use
the
RF lead supplied with the
C128. One end of that lead has
an aerial plug on it. Insert that
plug into the aerial socket of
your
TV set and the other end
into the
RF Socket on the rear of
the computer.
11
Connecting to a Serial Socket
Both the 1541 and 1571 disk
drives are supplied with a serial .
lead which has a five pin
DIN
plug on each end. One end of
this lead is inserted into the
serial socket
on the rear of the
disk drive
as described in the
user manual for the disk drive.
The other end
is inserted into
the Serial Socket
on the rear of
the C128.
