CommScope CAP MX Series User Manual

CommScope Era
™
Fiber Low Power Carrier Access Point Installation Guide M0201ANC_uc
Page 36 © June 2019 CommScope, Inc.
Mount the Fiber CAP L

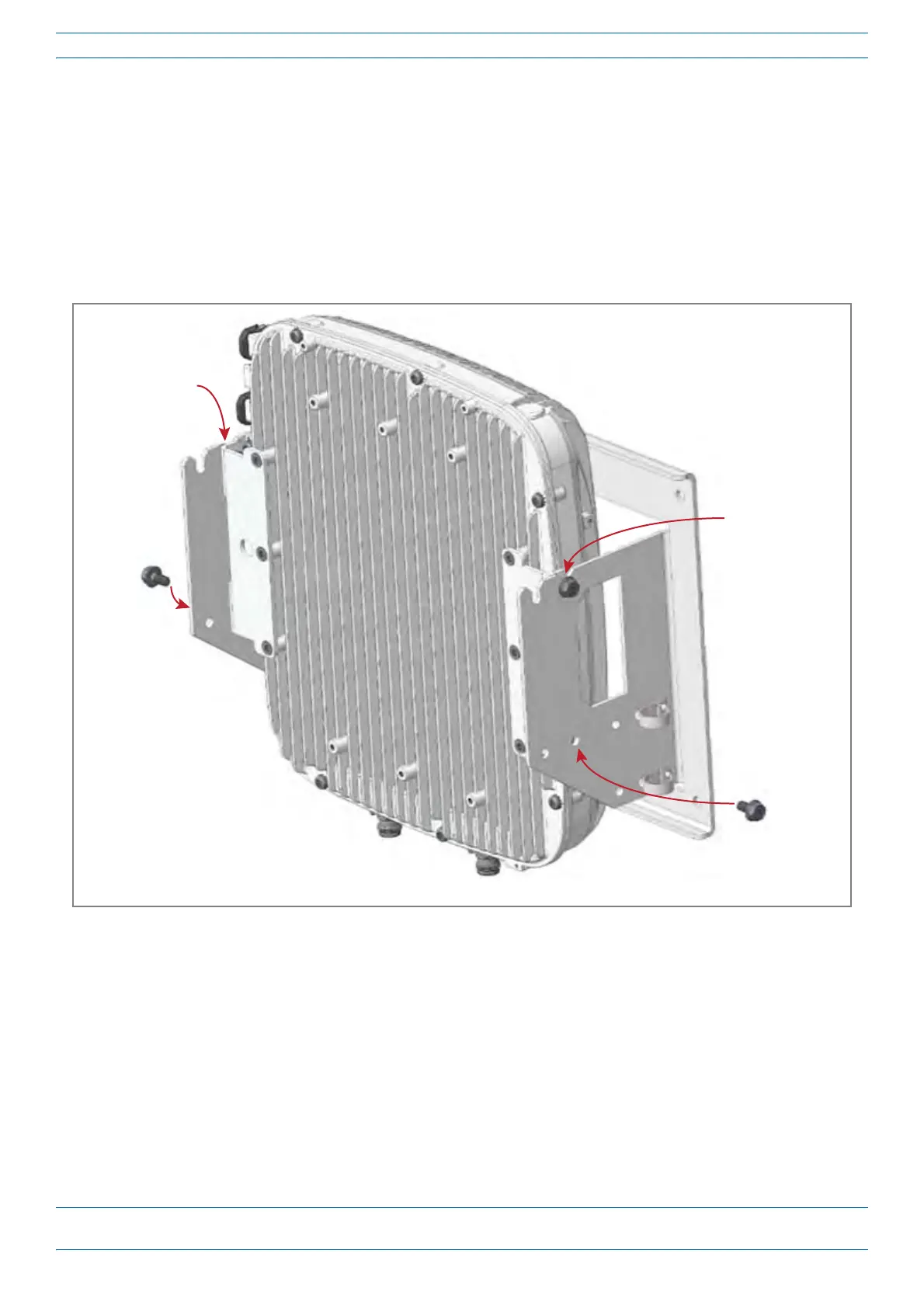

9 Do the following to mount CAP L-1 in the Wall Bracket.
a Holding th
e CAP L-1 with the front of the chassis facing the mounting surface, lift it above the
Mounting Bracket attached to the wall, and then lower it into place, aligning the M8x16 screws that
you attached to the Mounting Adapters in Step 7 on page 35 and Step 8 on page 35 with the Mounting
Bracket slots that are closest to the mounting surface.

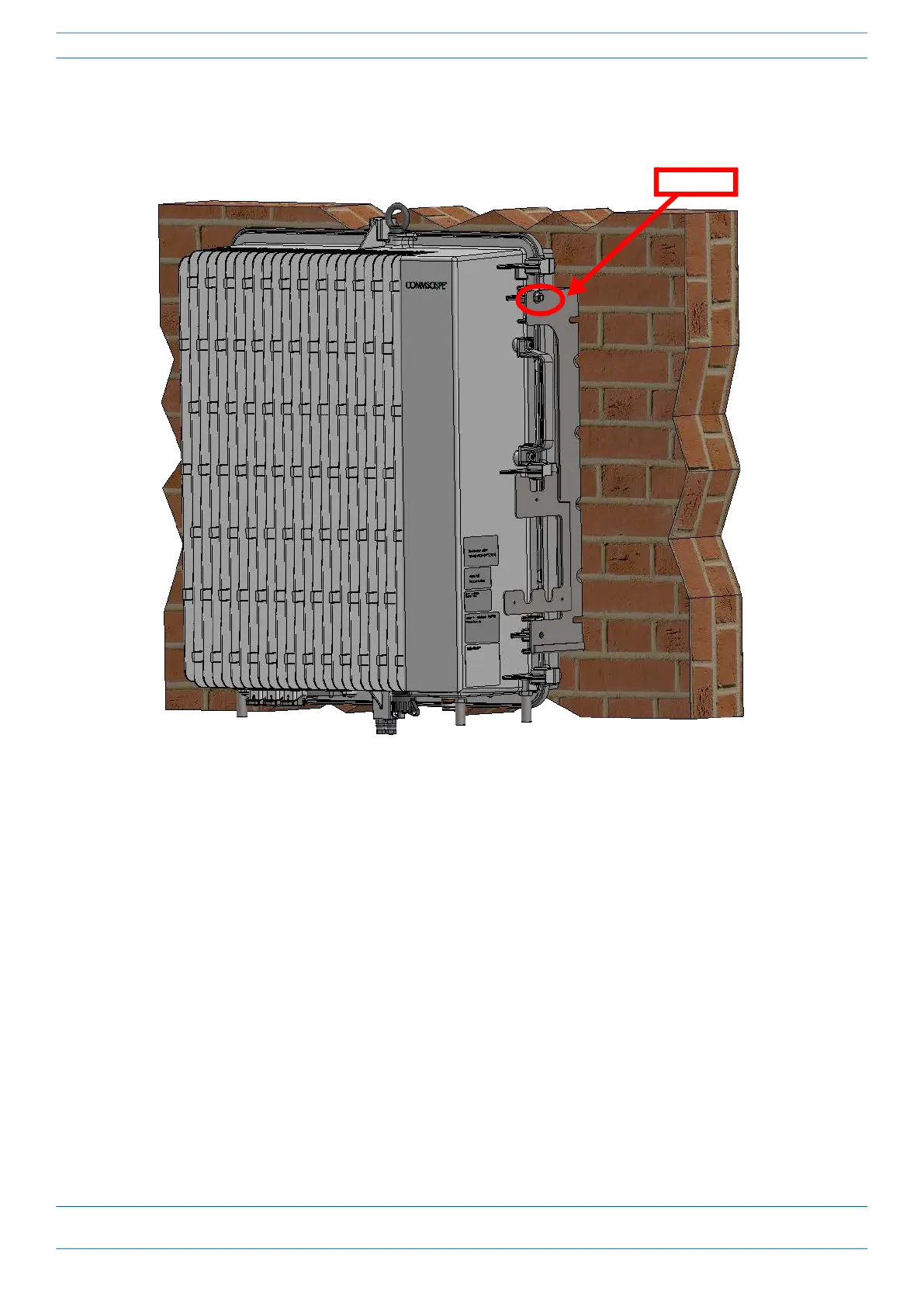

b Insert an M8x16 screw into the bottom screw hole of the Dual Wall Mount Bracket that is closest to
the mo
unting surface and into the bottom screw hole on each CAP L-1 Mounting Adapter.
c Tighten all four M8x16 screws
to secure the CAP L-1 to the Dual Wall Mount Bracket; torque to
13.5 N-m (120 in-lb).
M8x16 screw
in boom screw
hole closest to
mounng surface
Mounng slot
closest to the
mounng surface
CAP L-1
Front of chassis
facing mounng
surface
M8x16 screw
in boom screw
hole closest to
mounng surface
Mounng slot
closest to the
mounng surface
