CommScope ERA
®
CAP M2 with Fiber Interface M0203AHA_uc
Page 12 © August 2022 CommScope, Inc.
Fiber CAP M2 Overview

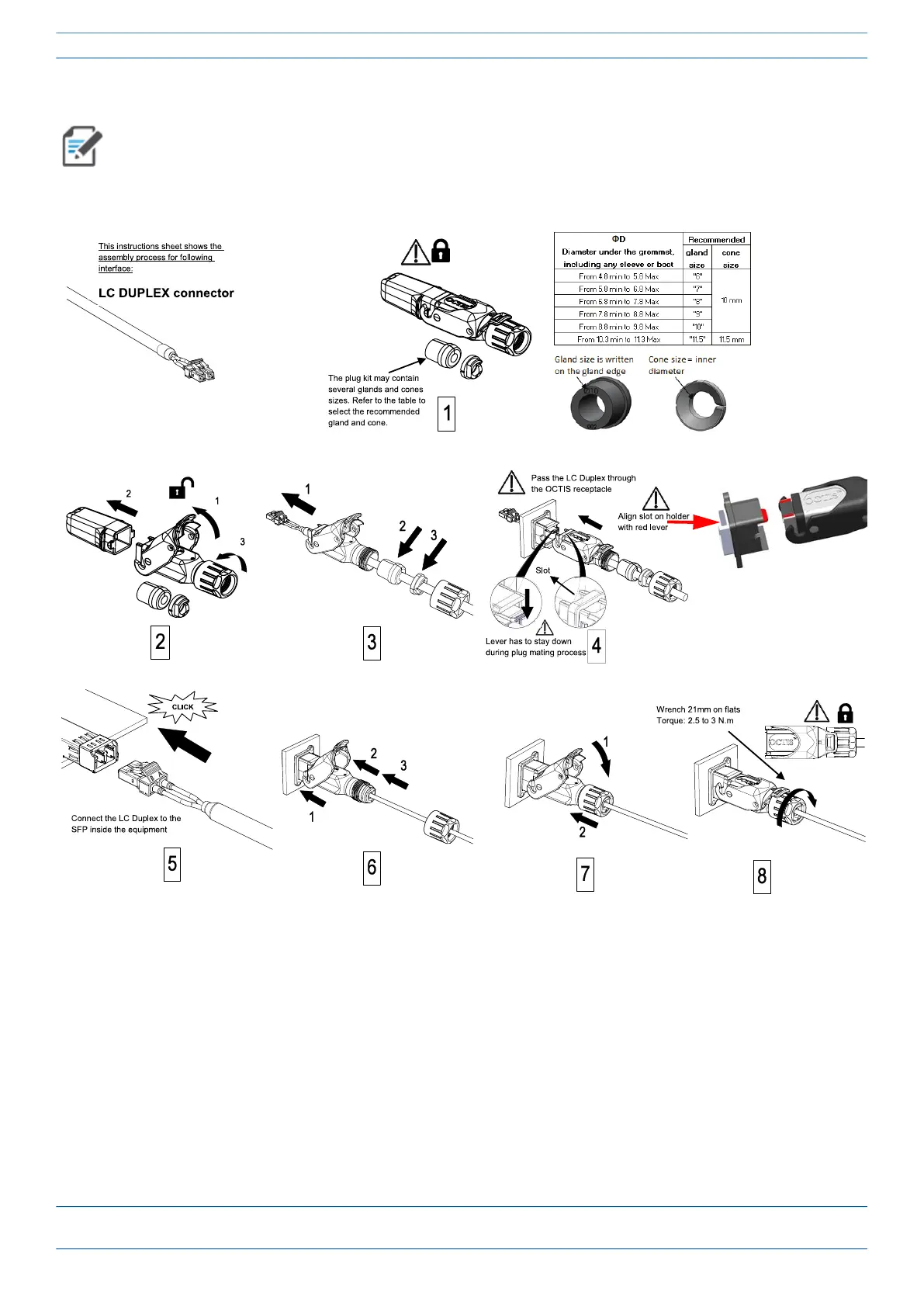

Figure 2. OCTIS Universal Lever Assembly Instructions
Figure 2 and Figure 3 show the LC Duplex connector at the cable termination. The BiDi (single fiber) cable
termination follows the same OCTIS assembly instructions.
