Compaq Armada M700 Series Maintenance And Service Guide

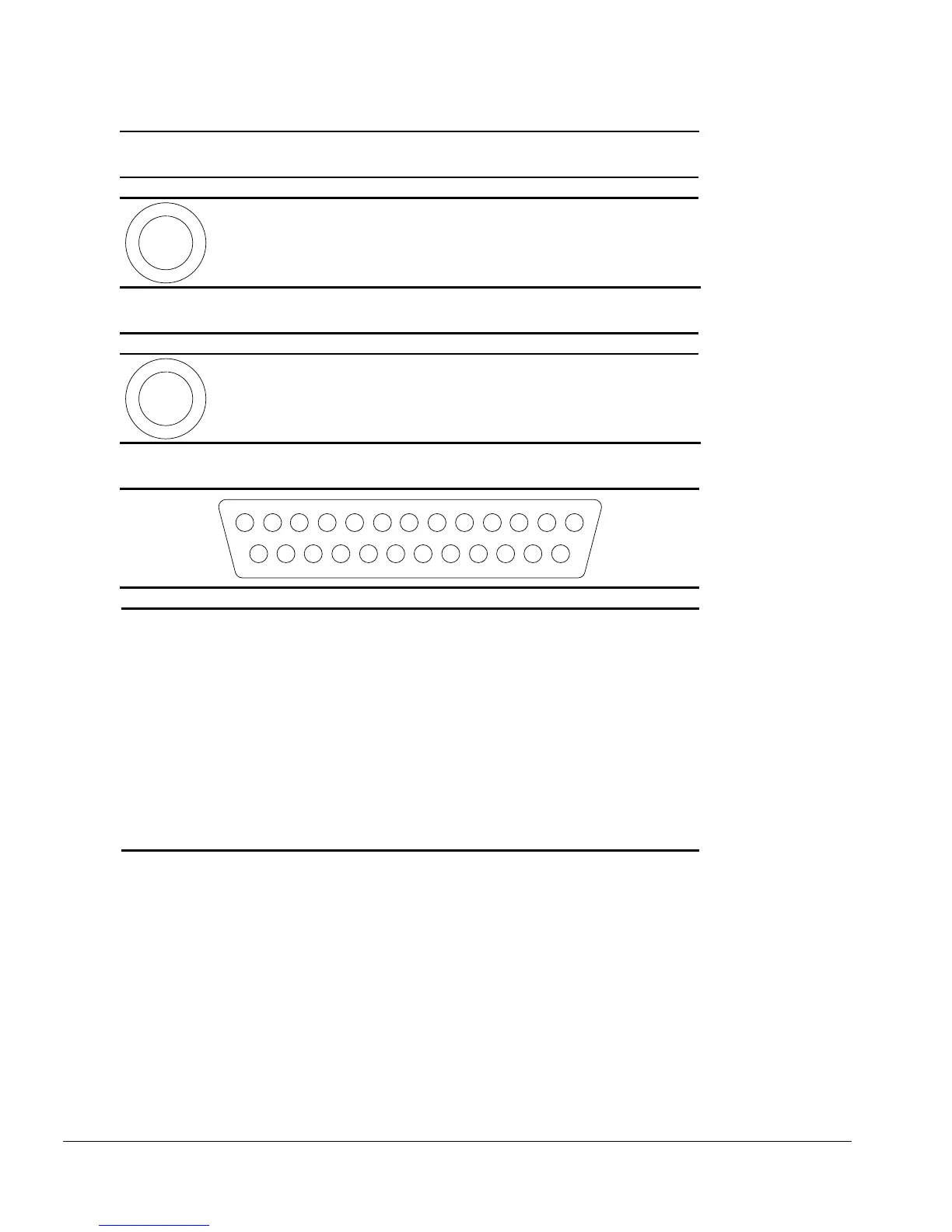

A-2 Connector Pin Assignments
Table A-4
Stereo Speaker/Headphone Jack
Connector Pin Signal
1
2
1
2
Audio out
Ground
Table A-5
Stereo Line-in Jack
Connector Pin Signal
1
2
1
2
Audio in
Ground
Table A-6
Parallel Connector
1234
151617 14
5678910111213
1820 1921222325 24
Pin Signal Pin Signal
1 Strobe 14 Auto Linefeed
2 Data Bit 0 15 Error
3 Data Bit 1 16 Initialize Printer
4 Data Bit 2 17 Select In
5 Data Bit 3 18 Ground
6 Data Bit 4 19 Ground
7 Data Bit 5 20 Ground
8 Data Bit 6 21 Ground
9 Data Bit 7 22 Ground
10 Acknowledge 23 Ground
11 Busy 24 Ground
12 Paper End 25 Ground
13 Select
