Compaq Armada M700 Series Maintenance And Service Guide

Connector Pin Assignments A-3
Table A-7

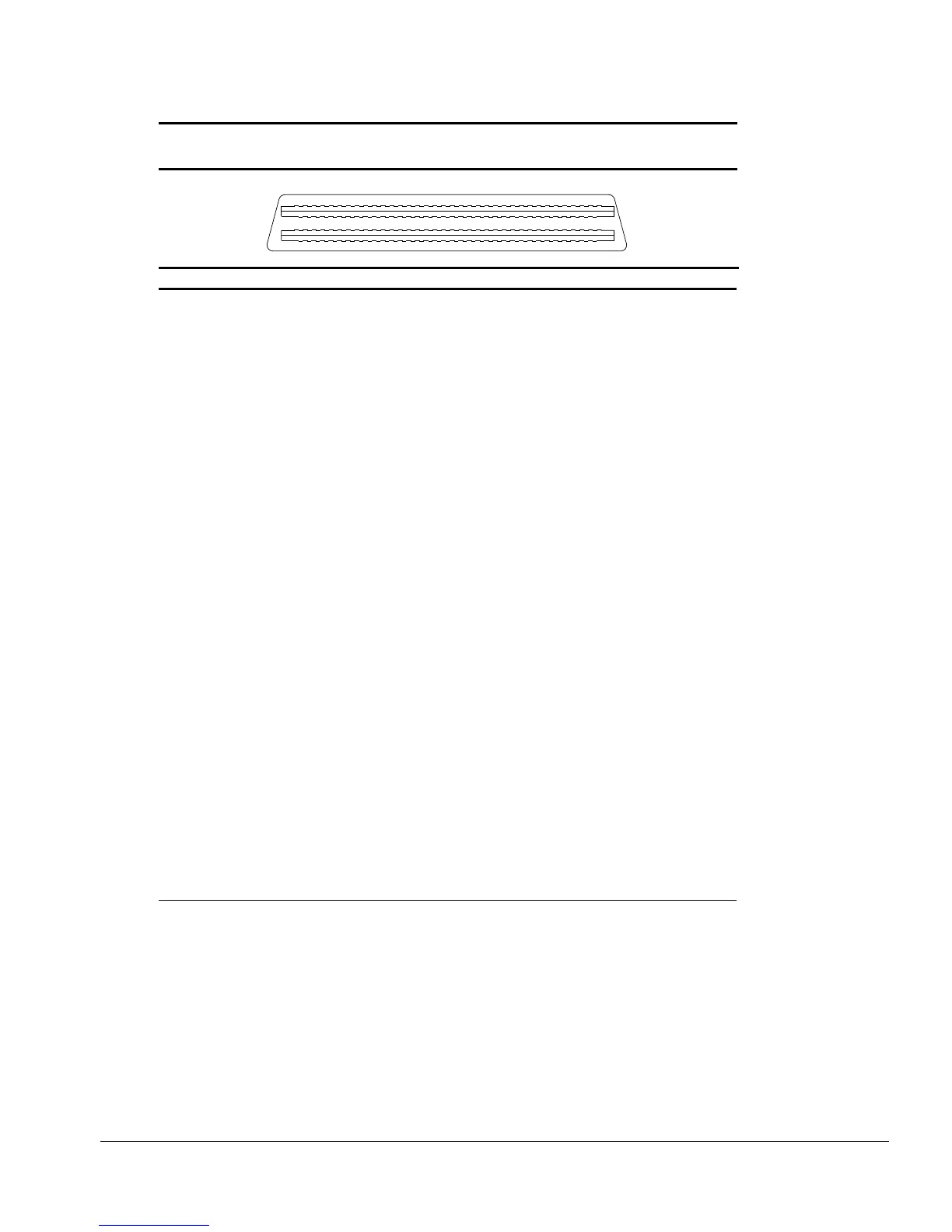

Docking Connector
31
61
91
1
120
90
60
30
Pin Signal Pin Signal
1 EBOXL 34 XA1/R OUT
2 AGND 35 GND
3 EBOXS1 36 GND
4 RED 37 EXPCLK2
5 AGND 38 +3.3V
6 GREEN 39 EXPCLK0
7 AGRD 40 +5V (8051VCC)
8 BLUE 41 EXPCLK
9 AGND 42 EBOXS2
10 VSYNC 43 GND
11 HSYNC 44 EBOXL
12 DDC DAT 45 EBOXL /GND
13 DDC CLK 46 SRDY
14 GND 47 EBOXS1 /GND
15 INDEX 48 RI1 EX
16 RDATA 49 GND
17 TRK0 50 SLCT LD0
18 WDATA 51 PE LD1
19 WGATE 52 ACK LD2
20 STEP 53 BUSY LD3
21 DIR 54 GND
22 POWER ON 55 STRB LD4
23 SYS RESET 56 ALF LD5
24 GND 57 INIT LD6
25 DSKCHG 58 SLCTIN LD7
26 +5 V (VDD) 59 GND
27 AUGND 60 PDATA0 LD8
28 XA2/L IN 61 PDATA1 LD9
29 XA3/R IN 62 PDATA2 LD10
30 MID0/MIC IN 63 PDATA3 LD11
31 AUGND 64 GND
32 XA0/L OUT 65 PDATA4 LD12
33 XSD/MIC SN 66 PDATA5 LD13
Continued
