Compaq Armada M700 Series Maintenance And Service Guide

Connector Pin Assignments A-5
Table A-7
Continued
Pin Signal Pin Signal
143 VBATT 160 CBE3
144 AD[23] 161 CBE2
145 GND 162 IRDY
146 AD[21] 163 DEVSEL
147 AD[19] 164 LOCK
148 AD[17] 165 OERR
149 GND 166 SERR
150 AD[14] 167 GND
151 AD[12] 168 RSVD3
152 AD[10] 169 M 12C CLK
153 AD[08] 170 M 12C DATA
154 GND 171 M RING
155 AD[07] 172 MGND
156 AD[05] 173 M DXTN
157 AD[03] 174 GND
158 AD[01] 175 M DXTP
159 GND 176 MSTRBAT

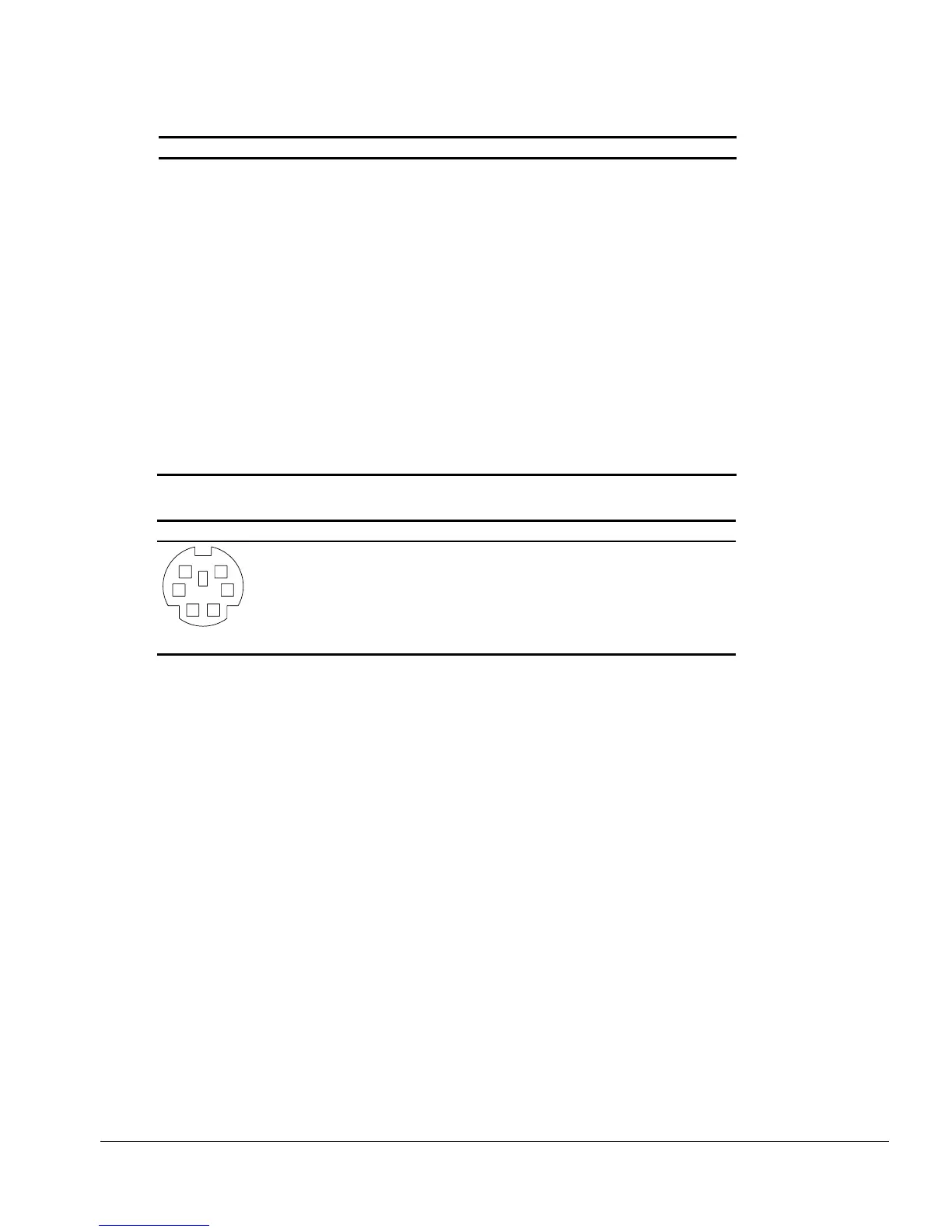

Table A-8
External Keyboard/Mouse Connector
Connector Pin Signal
KEY
65
43
2
1
1
2
3
4
5
6
Keyboard/Mouse DATA
Keyboard/Mouse DATA
Ground
+5 VDC
Keyboard/Mouse CLK
Keyboard/Mouse CLK
