A-6 Connector Pin Assignments

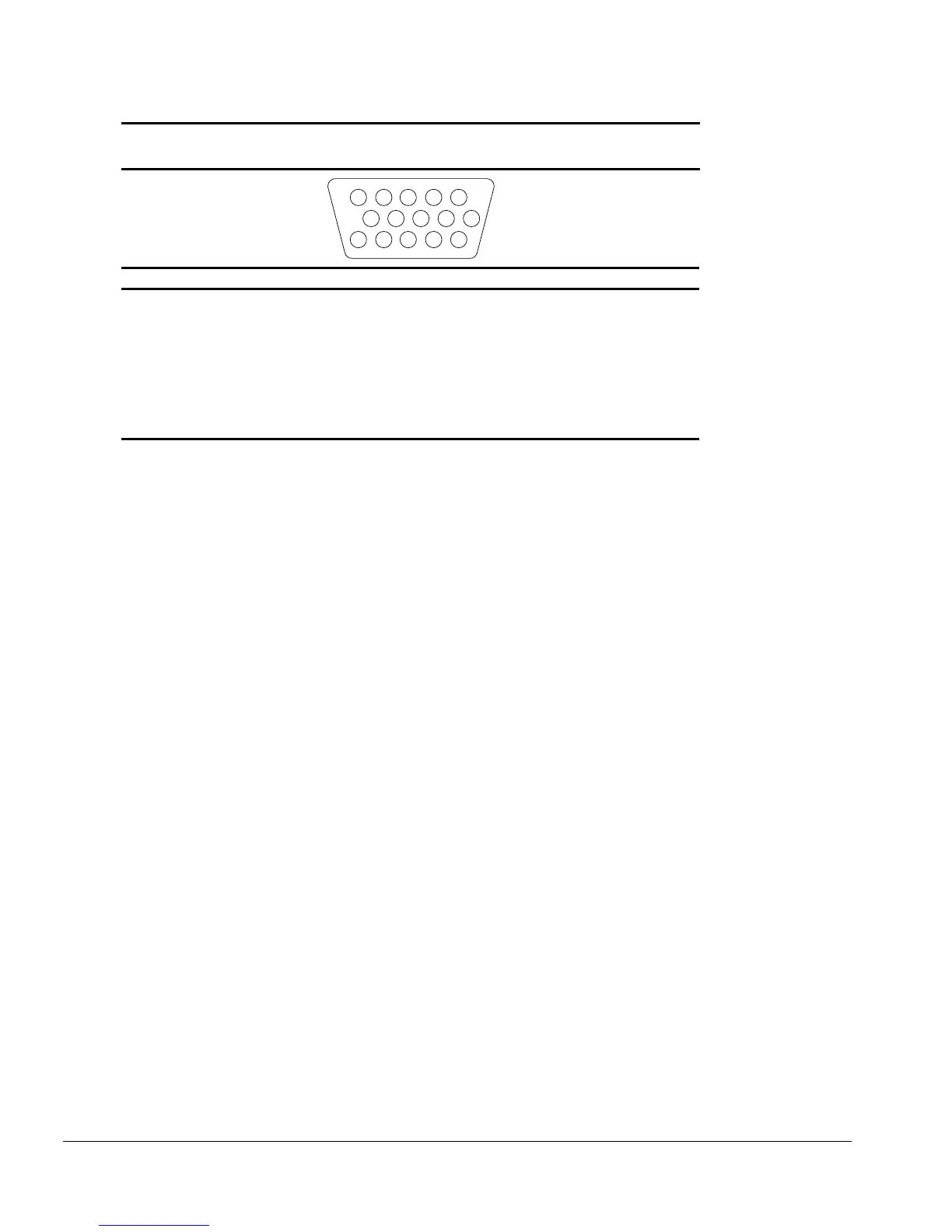

Table A-9
External Monitor Connector
1
6
23
87
45
10
KEY
1112131415
Pin Signal Pin Signal
1 Red Analog 9 NC
2 Green Analog 10 Ground
3 Blue Analog 11 NC
4 NC 12 DDC Data
5 Ground 13 Horizontal Sync
6 Ground 14 Vertical Sync
7 Ground 15 DDC Clock
8 Ground
