Compaq Deskpro 2000 Service & Reference Guide

A-10 Connector Pin Assignments

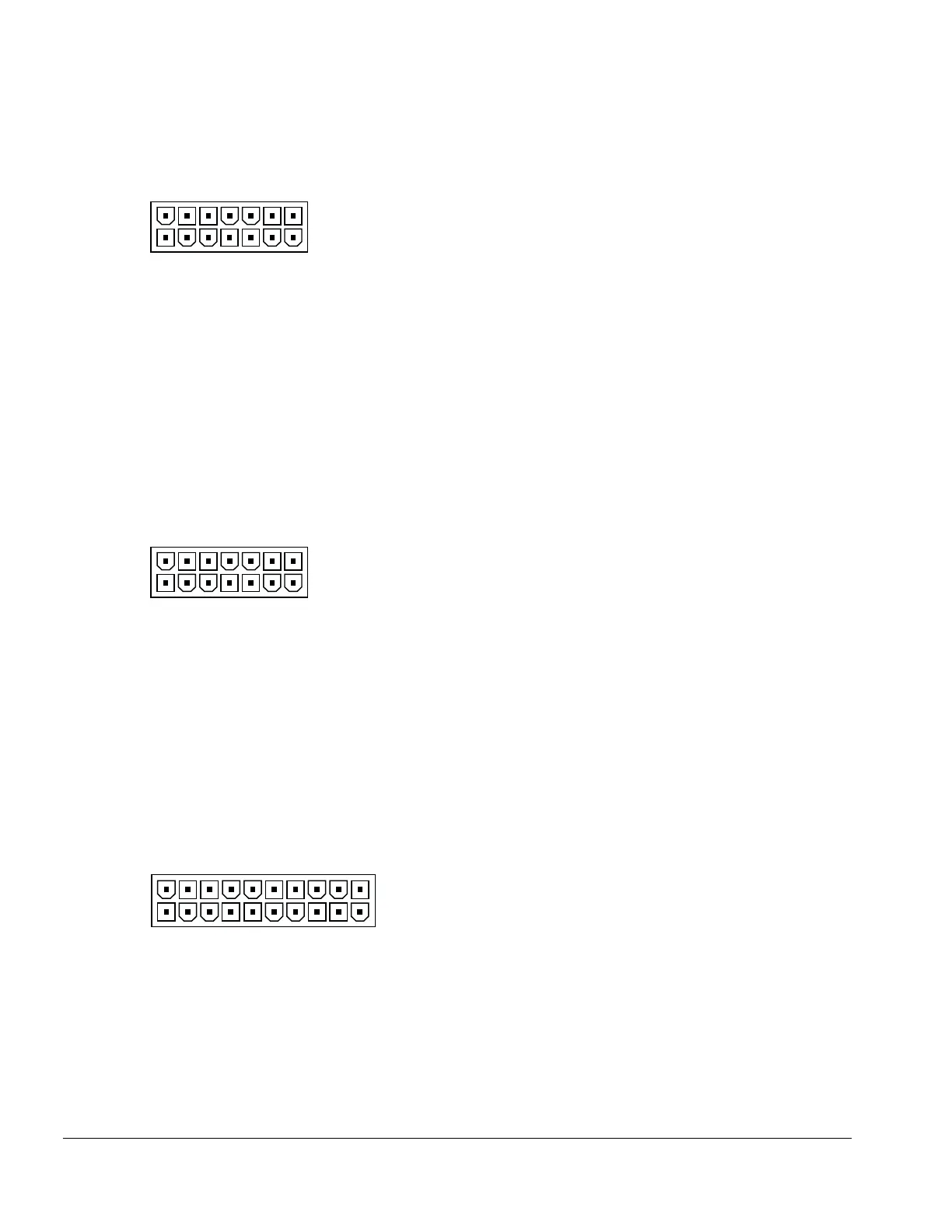

14-Pin Power
Connector for BX Chipset
1
2
13
14
Pin Signal Pin Signal Pin Signal Pin Signal
1 +3.3 V 5 RTN 9 -12 V 13 +3.3 V Sense
return
2 +3.3 V Sense 6 +5 V 10 Fan OFF 14 +12 V
3 RTN 7 RTN 11 ON/STBY
4 +5 V 8 +3.3 V 12 +5 V Aux
14-Pin Power
Connector for 810, 810e, and 820 Chipsets
1
2
13
14
Pin Signal Pin Signal Pin Signal Pin Signal
1 +3.3 V 5 RTN 9 -12 V 13 Fan speed
2 +3.3 V Aux 6 +5 V 10 Fan OFF# 14 +12 V
3 RTN 7 RTN 11 ON/STBY
4 +5 V 8 +3.3 V 12 +5 V Aux
20-Pin Power - Deskpro EP
Connector
1
2
19
20
Pin Signal Pin Signal Pin Signal Pin Signal
1 +3.3 V 6 +5 V 11 +3.3 V 16 RTN
2 +3.3 V 7 RTN 12 -12 V 17 RTN
3 RTN 8 Fan OFF 13 RTN 18 -5 V
4 +5 V 9 +5 V Aux 14 ON/STBY 19 +5 V
5 RTN 10 +12 V 15 RTN 20 +5 V
