3-8
Rack-Mount Server Installation
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: D-CH03.DOC Last Saved On: 3/10/98 9:30 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Preparing the Mounting Brackets
and Slide Rail Assemblies
Each pair of mounting brackets, with attached slide rail assemblies, supports
one rack-mountable server.

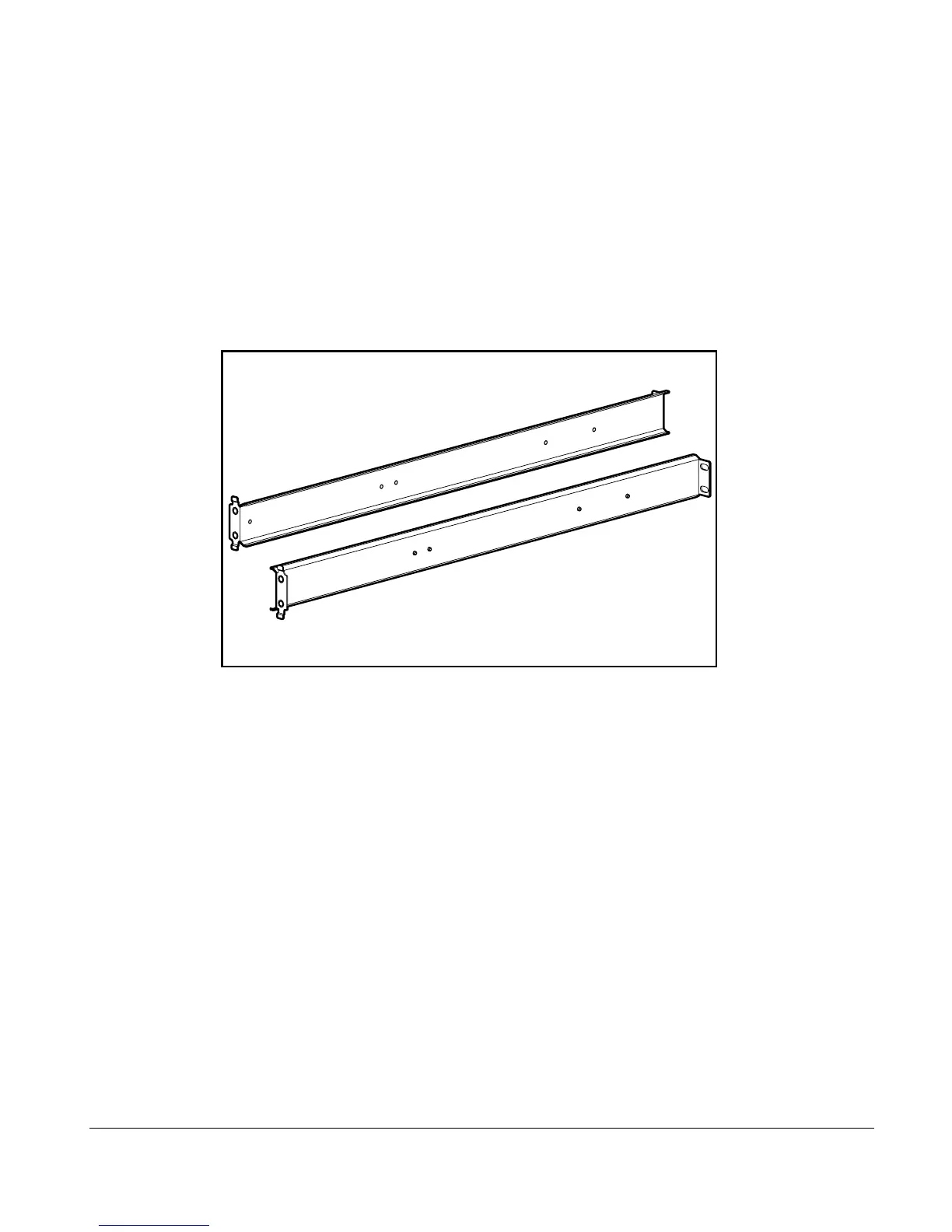

Figure 3-2.
Rack mounting brackets; alignment tabs identify the front flanges
Each slide rail assembly consists of an outer bracket rail and an inner
component rail (see the following figure). These pieces can be separated; the
bracket rails attach to the rack mounting brackets (shown in the previous
figure), and the component rails attach to the sides of the server chassis.
