Compaq ProLiant 3000 - Replacing the Side Access Panel

4-19
ProLiant 3000 Setup and Installation Guide
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: E-CH04.DOC Last Saved On: 1/27/98 4:20 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED

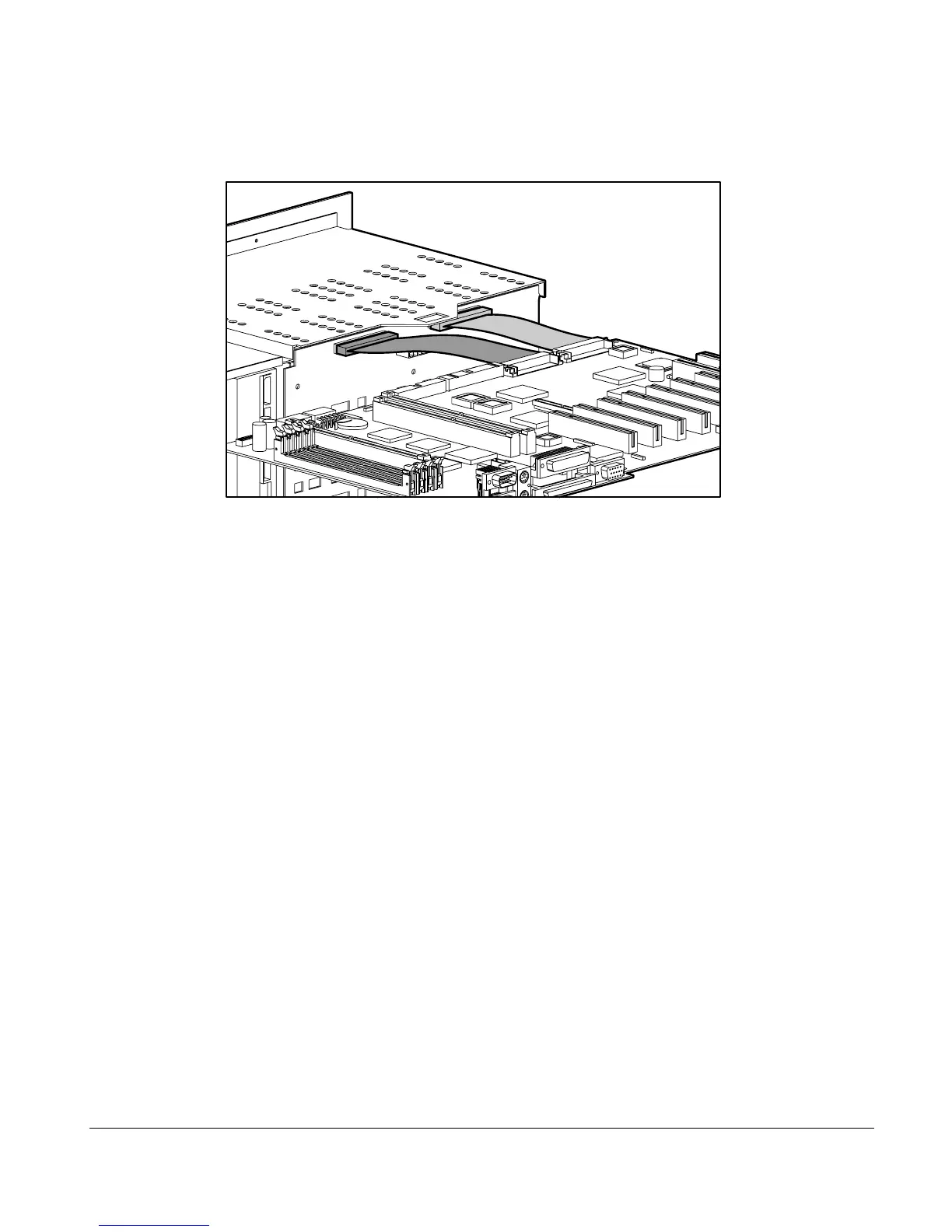

Figure 4-18.
Example cable connection to SCSI controller
13. Replace fans.
Replacing the Side Access Panel
Reverse the steps from the “Accessing Processors, Memory Board, and System
Board” procedure to replace the side access panel.
