3-10
Rack-Mount Server Installation
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: D-CH03.DOC Last Saved On: 3/10/98 9:30 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED

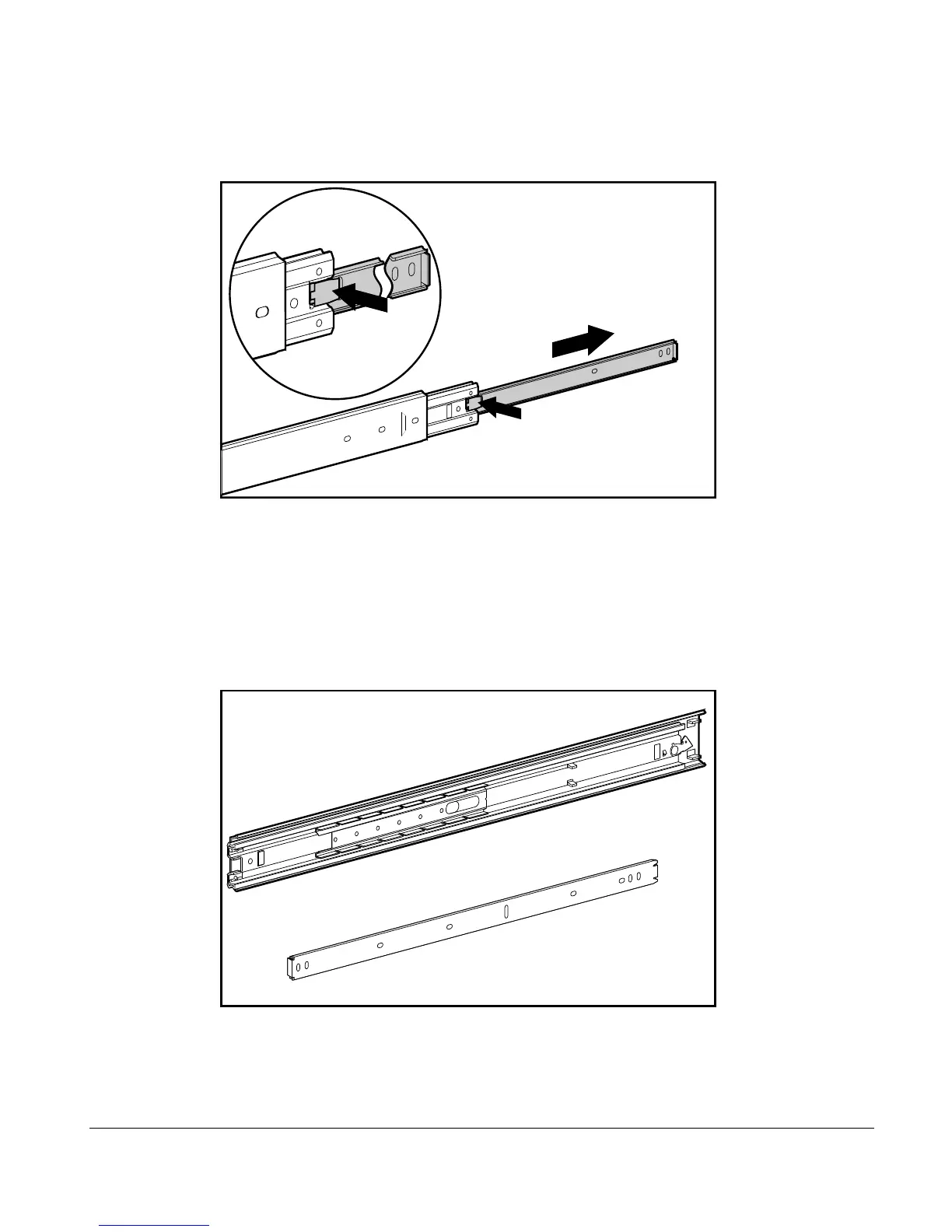

Figure 3-4.
Removing the component rail from the bracket rail
3. Put the component rails to one side. You will attach them to the rack
server chassis later, in the section, "Attaching Component Rails to the
Server."
The next figure shows the separated bracket rail with its inner sliding piece and
the flat, one-piece component rail.
Figure 3-5.
Separated bracket rail (top) and component rail
