Top View

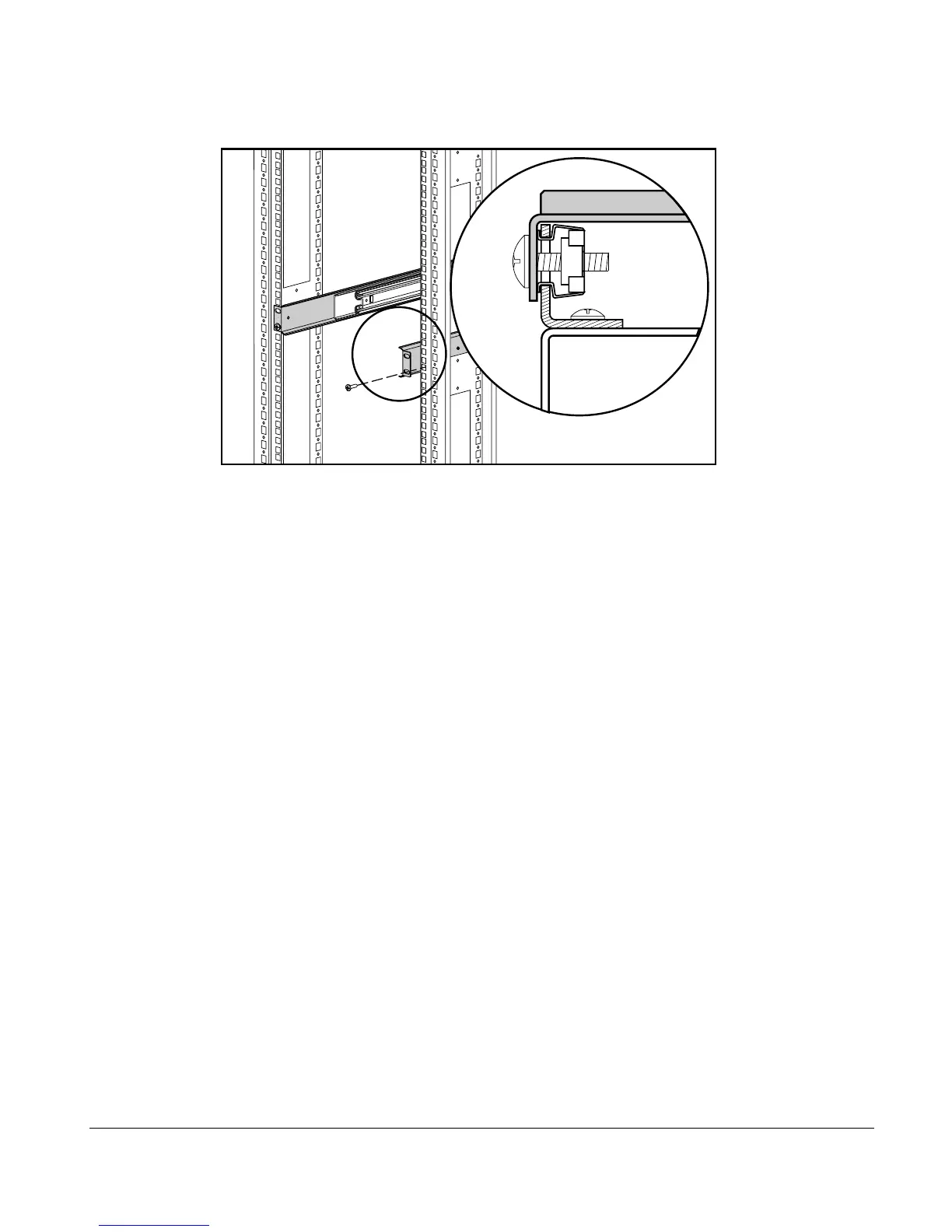

Figure 3-11.
Cage nut and back of mounting bracket assembly installed
4. After attaching both mounting bracket assemblies to the rack, prepare the
server for mounting in the rack.
