B-1 l Appendix
Installing a Precooler (Optional)
You can add a precooler to the Carousel Plus W series dryer by ordering the
optional precooler assembly. Installation is easy.
The optional precooler requires a source of city, tower, or chiller water and a dis-
charge or return line. You can use water at temperatures up to 85°F {30°C}. But
the water flow should be at least 3 gal/min {11.4 liters/min} for W dryer models
150 - 400.

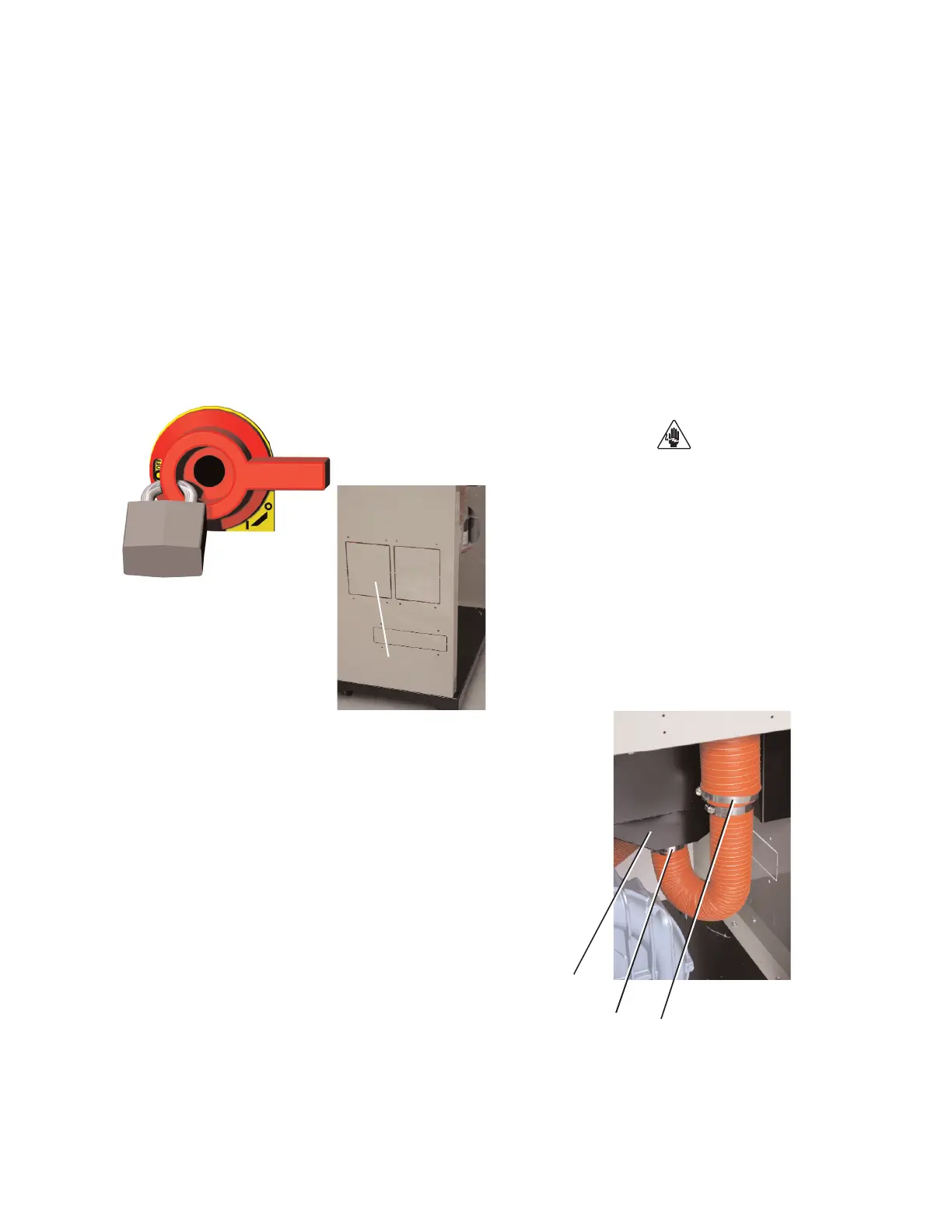

1 Stop the dryer and lockout the main power.
2 Remove the side panels.
3 Remove the knockout for the precooler housing
on the dryer.
4 Install the precooler housing. Bolt the precooler
housing in place with the hose connection to the
bottom.
5 Disconnect the hose from the bottom
of the process heater tube. Connect
the hose to the inlet of the precooler
housing.
6 Connect a piece of hose from the bot-
tom of the aftercooler housing to the
inlet of the process heater.
Precooler
Knockout
(continued)
Precooler housing
Inlet to heater
Precooler outlet
Precoolers are available from
Conair.
Contact Conair Parts
(800) 458 1960
From outside of the
United States, call:
(814) 437 6861
