Using the DeviceNet
Communication Dip Switch Settings
(continued)

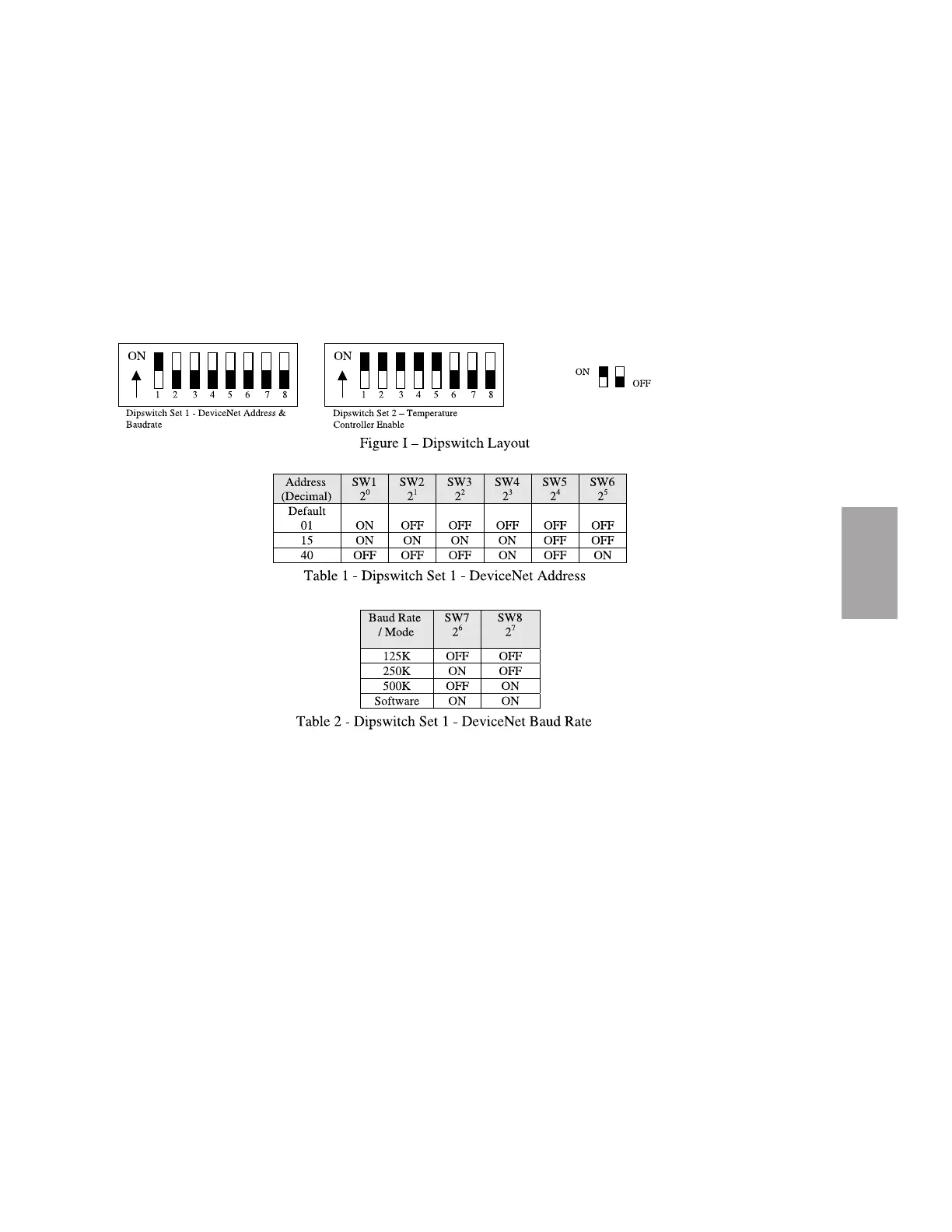

Dip switch 1 provides the DeviceNet MacId address and baud rate using the stan-
dard switch configurations found in most DeviceNet products. Switches 7 and 8
of switch set 1 allow the user to use DeviceNet software configuration tools to set
the MacId address and baud rate. Factory default switch settings are 125k ,
Address 63.
(continued)
C
DeviceNet
DeviceNet Communications l C-3
