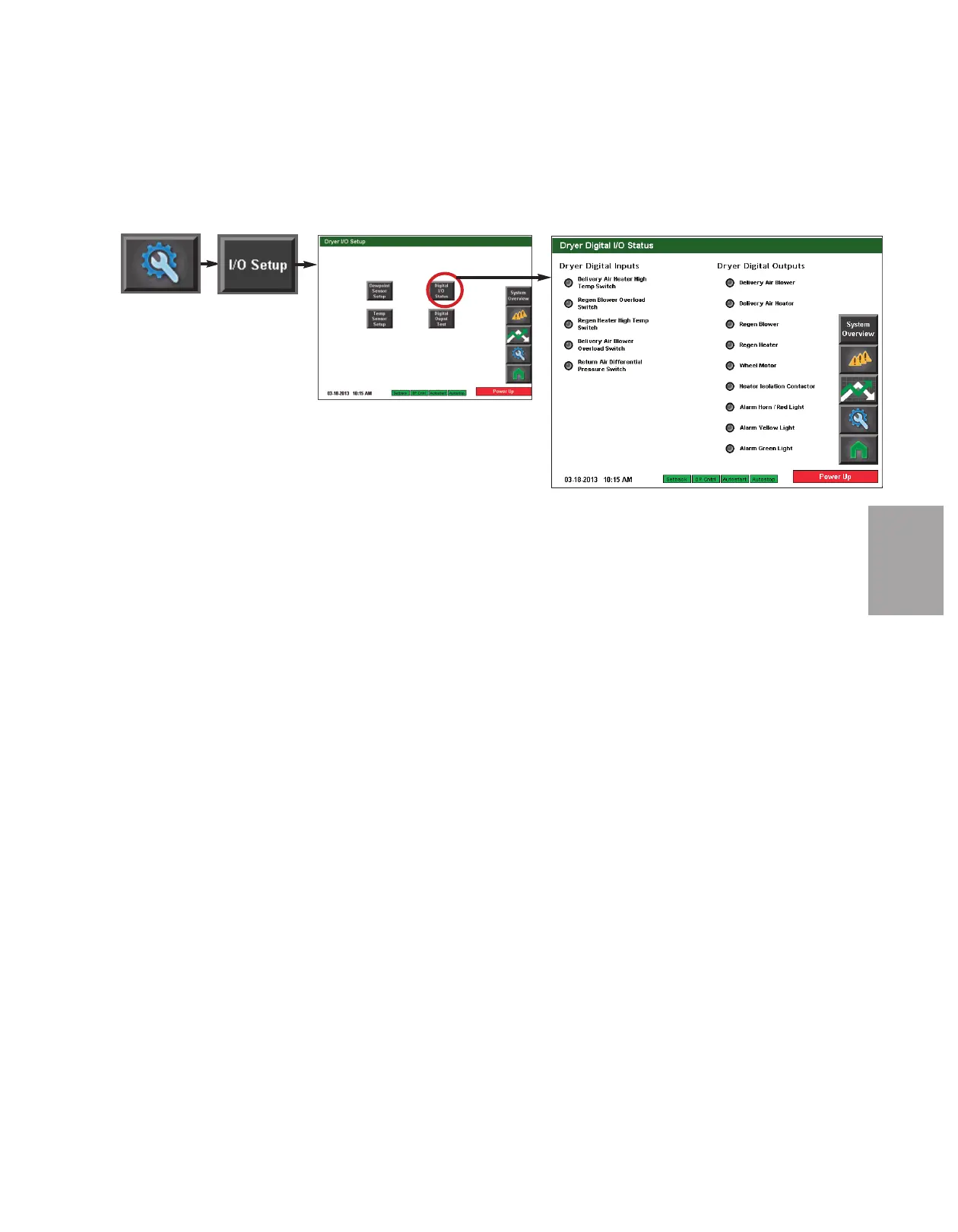

Digital I/O Status screen
To access the I/O Status screen:
1 Press the Settings button from the Home screen.
2 Press the I/O Setupbutton.
3 Press the I/O Status button.
The I/O Status screen allows for a visual display of active outputs attached to the DC-T
control. Inputs or outputs that are active will turn green. Inactive inputs and outputs will
appear grey.
NOTE: Proper login is
required to test the out-
puts. Depending on the
configuration of your
dryer, some inputs and
outputs may not be avail-
able.
✐
