Conair Thermolator TW-P User Manual

Appendix I C-1

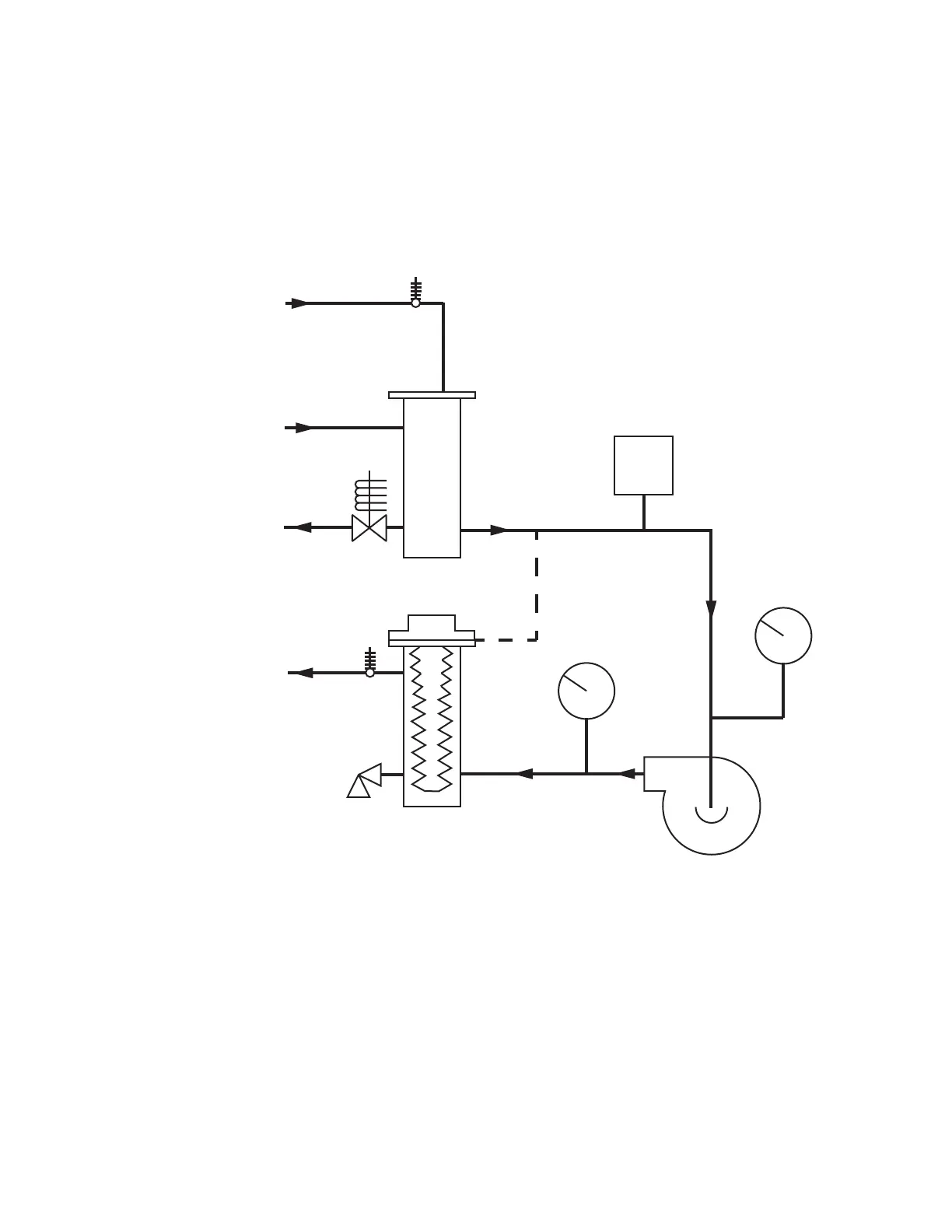

Plumbing Diagram
Heater
To Process
From Process
Cooling Water In
Cooling Water Out
Cooling
Valve
Mixing
Tank
Pump
From Process RTD
Low Pressure Switch
From
Process
Pressure
Gauge
To
Process
Pressure
Gauge
Relief
Valve
Bypass/
De-aeration
(or Optional
2nd Heater)
To Process RTD
TW-S Direct Injection
(Continued)

Conair Thermolator TW-P Specifications

General

Brand	Conair
Model	Thermolator TW-P
Category	Temperature Controller
Language	English
