Appendix I C-5
Plumbing Curves

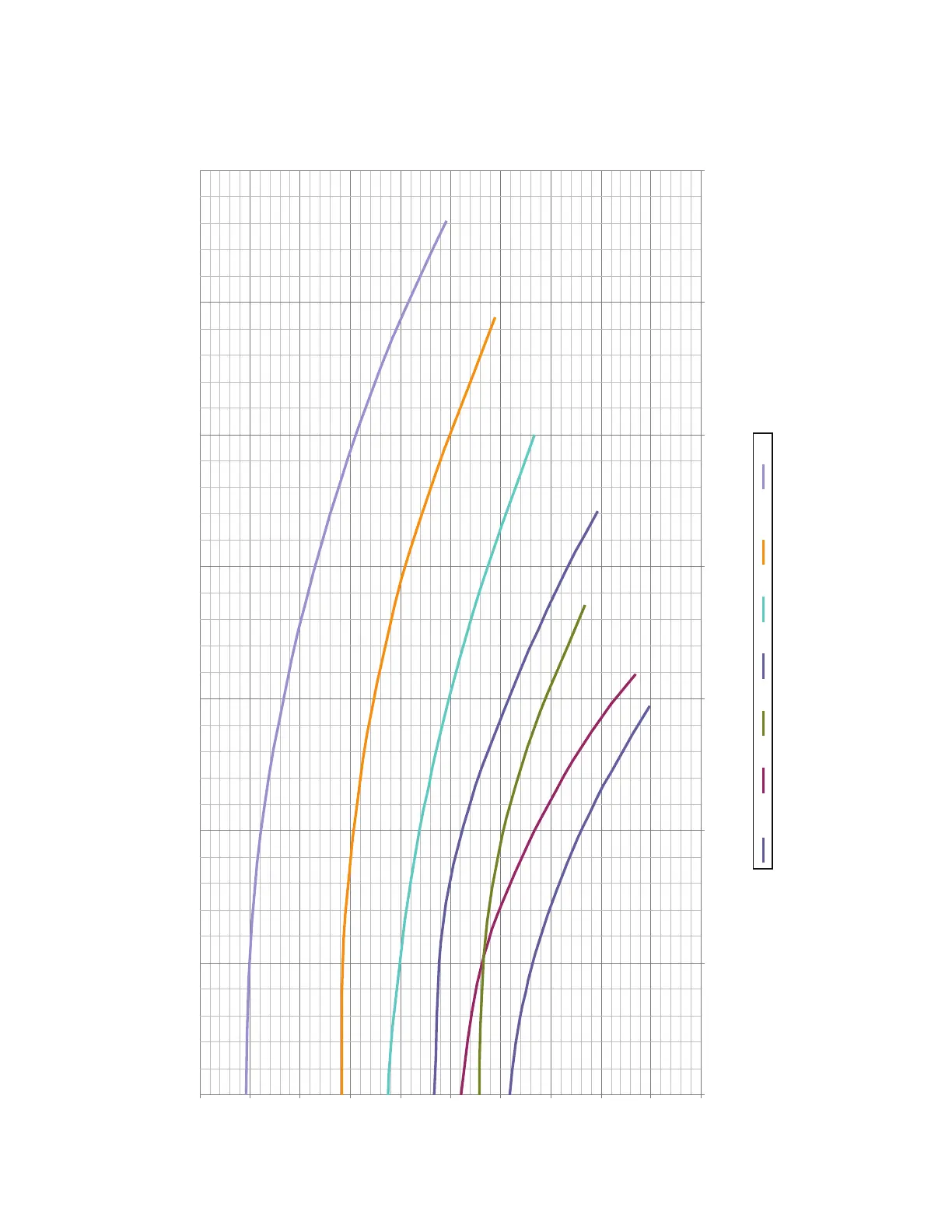

Closed Circuit Standard Performance
TW Series Installed Pump Performance
ed Circuit with Standard Heat Exchanger
Reference Configuraon 12 kW 250°F Max 60 Hz
0
10
20
30
40
50
60
70
80
90
100
020406080 100 120 140
Volumetric Water Flow (gpm)
Pressure Rise Across Unit (psid)
3/4 hp 1 hp 2 hp 3 hp 5 hp 7 1/2 hp 10 hp
3/4 hp
1 hp
2 hp
3 hp
5 hp
7 1/2 hp
10 hp
