PreSet Wheel Hubs – Recommended Service
22 ConMet
2. Thoroughly clean and degrease
the ABS ring seat on the hub
with a nonammable solvent.
Replace the hub if the ABS ring seat is damaged.
The ABS ring must be fully seated with a
maximum of 0.008" axial runout to ensure the
ABS system functions properly.
CAUTION
!

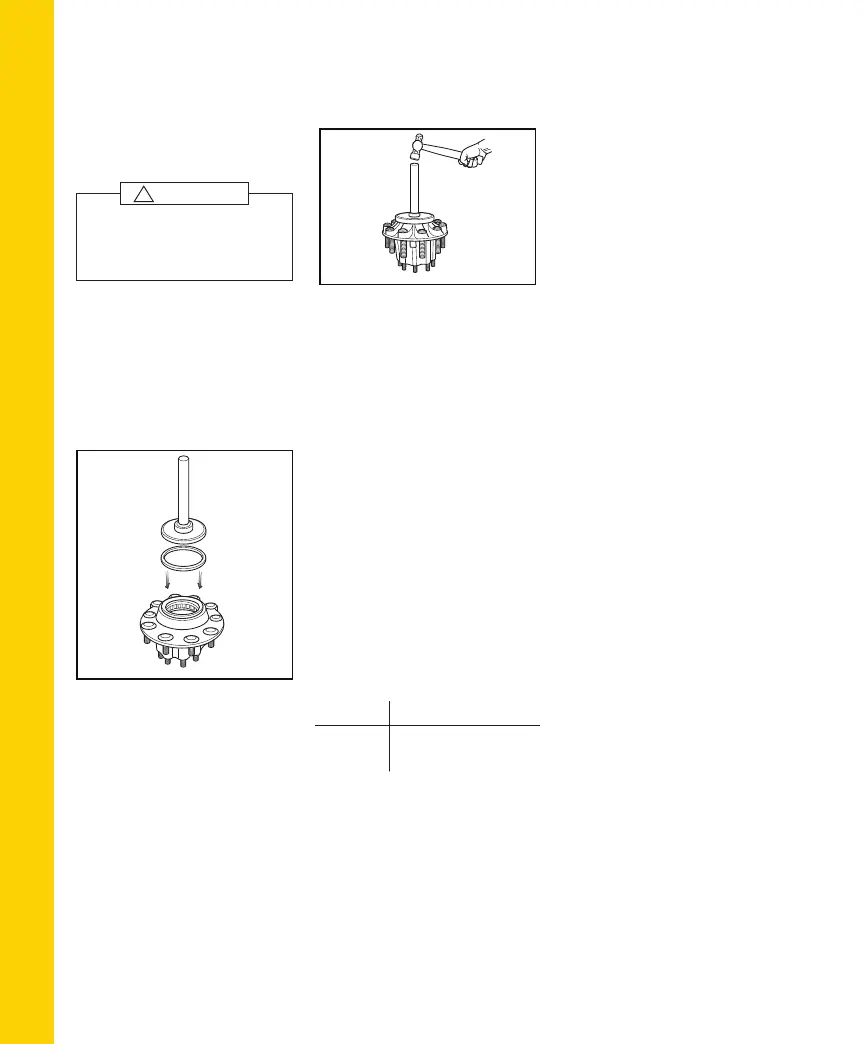

3. Place the hub in a press and
place the ABS ring on the hub
ring seat.
4. Using ConMet ring installation
tool (part number 107119),
center the tool over the ABS
ring. Each type of ring ts a
corresponding diameter on the
tool (see gure 52).
15
105744a
Installing the ABS Tone Ring
FIGURE 52
5. Press the ring on the hub. If a
press is not available, drive the
ring on with a hammer or mallet
until the ring seats on the hub
(see gure 53). A swift initial
blow with an 8-lb. hammer may
be necessary to start the ring
onto the hub.
5. PreSet Wheel Hubs – Recommended Service
16
105745a
Using a Hammer to Install the Ring
FIGURE 53
6. Inspect the ring to ensure
proper seating. If the ring is not
completely seated, continue
to drive the ring with the
ring installation tool until it is
completely seated.
REMOVAL AND
INSTALLATION OF BOLT
ON ABS TONE RINGS
(For Disc Brakes)
1. Remove and discard the
fasteners holding the ABS tone
ring on the hub.
2. Thoroughly clean and degrease
the ABS ring seat on the hub
with a non-ammable solvent.
3. Install the new ABS ring using
the new fasteners included with
the ring. Torque the fasteners to
the torque specications below.
Thread Size Torque
#8-32 18-22 in-lbs
1/4"-20 155-165 in-lbs
