Conmet Conventional - Part and Rotor Identification

46 ConMet
9. Wheel Hub and Rotor
WHEEL HUBS WITH
ConMet DISC BRAKE
ROTORS
This section applies to brake
rotors designed and manufactured
by ConMet for air disc brake
applications. ConMet also
manufactures hub assemblies
equipped with brake rotors
designed and manufactured
by other brake companies. If
your vehicle is equipped with a
brake rotor other than a ConMet
design, please refer to the vehicle
or component manufacturer's
published service information.
- Information relating to disc
brake calipers, pads, or other
vehicle-related systems is
not included in this manual.
Information regarding other
brake-related components
should be obtained from
the vehicle or component
manufacturer's published
service information.
Part Number Identication
Before you perform any service
procedures, you must rst
determine if the vehicle is equipped
with a disc brake rotor designed
and manufactured by ConMet.

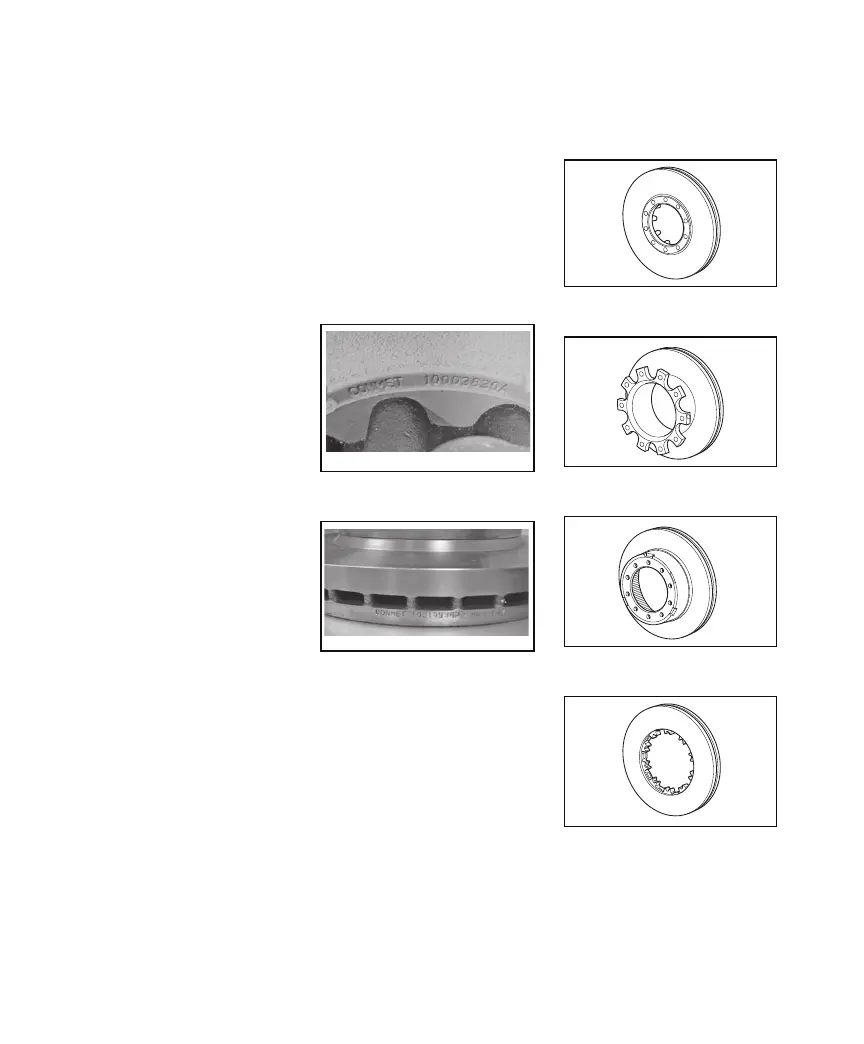

ConMet rotors can be identied
by part number. The part numbers
are cast into the rotor as shown in
gure 100 or stamped into the rotor
as shown in gure 101.
42
106832a
Cast Rotor Part Number
FIGURE 100
43
106833a
Stamped Rotor Part Number
FIGURE 101
Use this part number to nd the
part specic service information in
section 12 of this manual.
Rotor Identication
44
106913a
Flat Rotor
FIGURE 102
45
106914a
U-Shaped Rotor
FIGURE 103
46
106915a
Hat Rotor
FIGURE 104
47
106916a
*Bendix Splined Rotor – Refer to
Bendix for splined rotor information
FIGURE 105
